DAELIM VJF125 - Page 203

14-22
FRONT WHEEL/FRONT FORK/STEERING

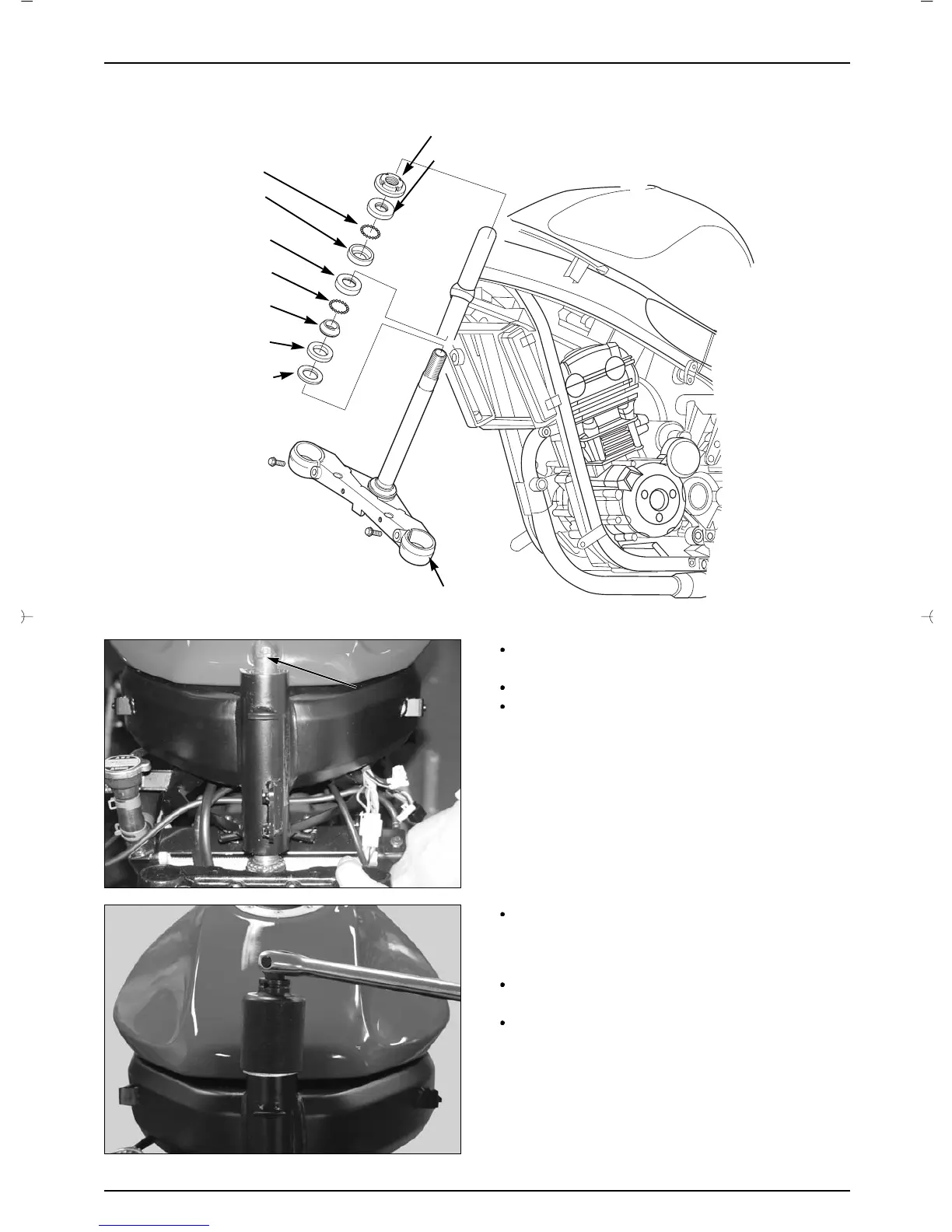

Apply grease to top and bottom ball races and install
the steel ball assy.
Instert the steering stem into the steering head pipe.
Insall the steel ball and top cone race.
Tighten the steering head top thread.
TORQUE : 2.5 kgf
··
m (INITIAL TORQUE)
TOOL : STEERING STEM SOCKET
Move the steering stem right and left, five times to seat
the steel balls.
Retighten the steering head top thread to the specified
torque.
TORQUE : 0.3 kgf
··
m (FINAL TORQUE)
INSTALLATION
TOP CONE RACE
STEEL BALLS
STEEL BALL RACE
STEERING STEM
STEEL BALL RACE
STEEL BALLS
WASHER
DUST SEAL
STEERING HEAD TOP THREAD
BOTTOM CONE RACE
