DAELIM VJF125 - Page 221

16-4
HYDRAULIC BRAKE

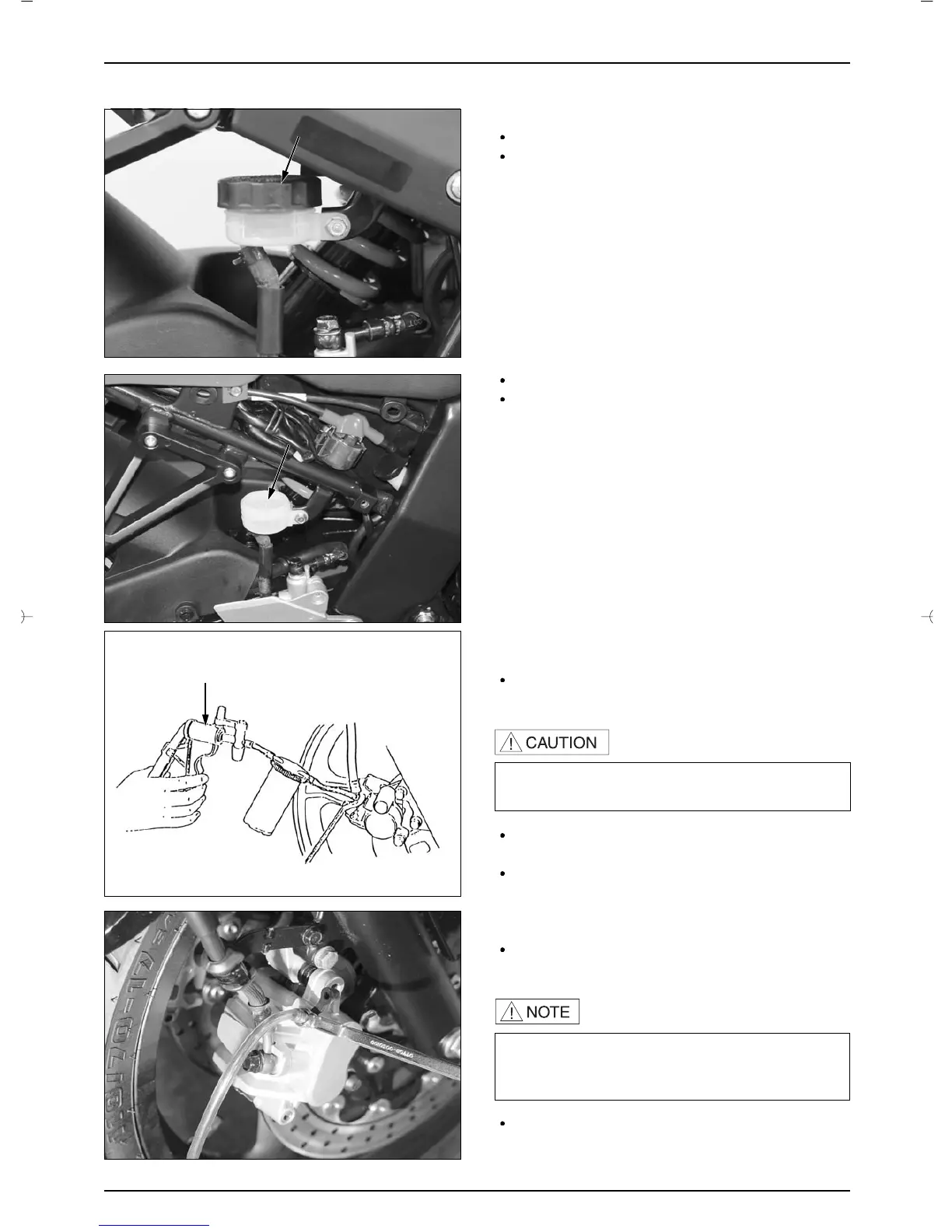

<Rear brake>
Remove the RH. side cover.
Remove the reservoir cap.
Remove the reservoir cap plate and diaphragm.
Drain the brake fluid as same way when the front
brake fluid drainning.
BRAKE FLUID FILLING
Fill the reservoir with DOT4 brake fluid up to the
upper level.
Connect a recommended brake bleeder to the bleeder
valve.
Pump the brake bleeder and loosen the bleeder valve,
adding fluid when the fluid level in the master cylinder
reservoir is low.
Repeat the previous step procedures until air bubbles
do not appear in the plastic hose.
Tighten the bleeder valve.
•Do not mix different types of fluid. There are not
compatible.
•If a brake bleeder is not available, fill the master
cylinder and operate the brake lever or pedal to
fill the system.
