16-23
HYDRAULIC BRAKE

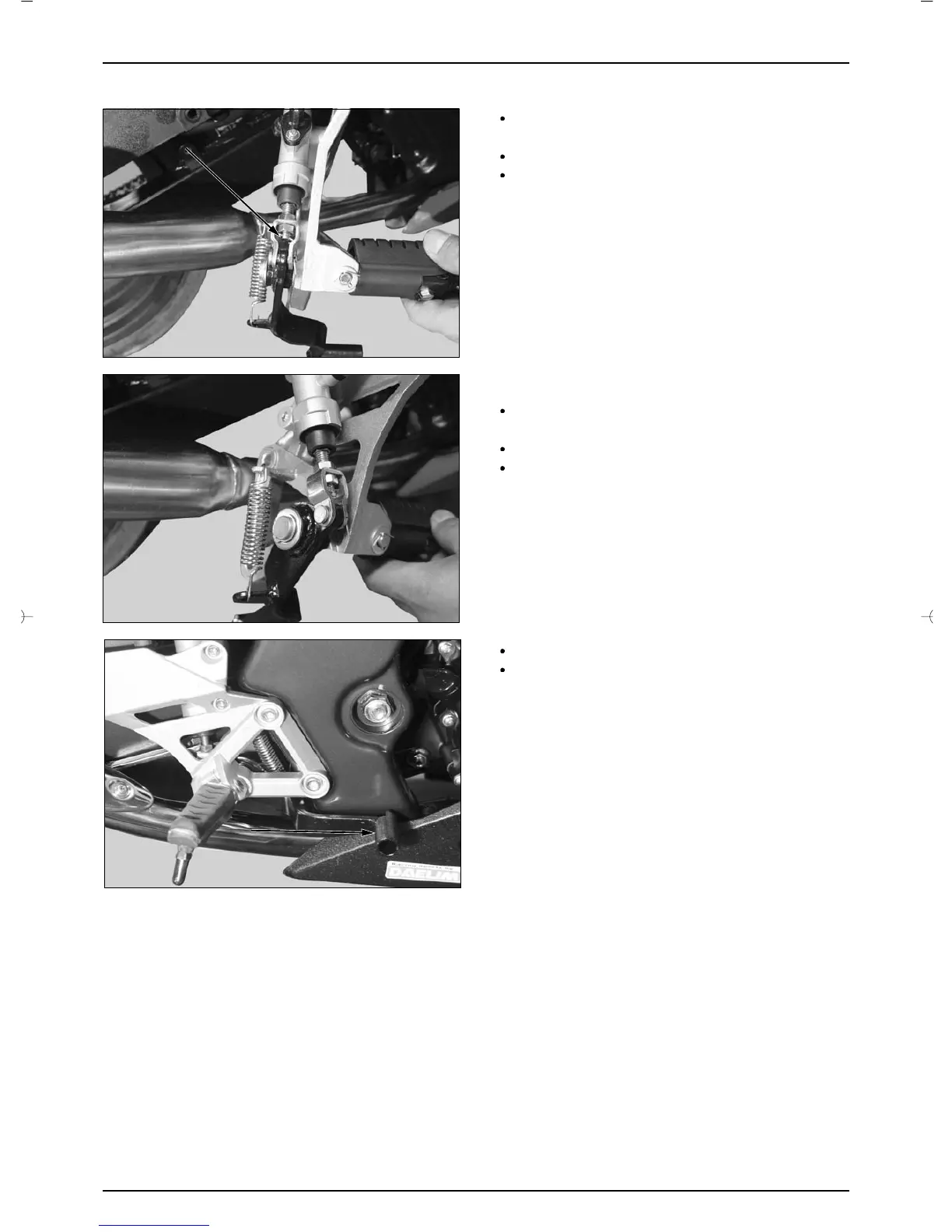

Strech and pull out the brake pedal joint cotter pin and
remove the joint pin C.
Remove the brake pedal spring from the brake pedal.
Remove the external cir-clip, washer and brake pedal.
COTTER PIN
COTTER PIN
COTTER PIN
COTTER PIN
COTTER PIN
COTTER PIN
COTTER PIN
COTTER PIN
COTTER PIN
COTTER PIN
COTTER PIN
COTTER PIN
COTTER PIN
COTTER PIN
COTTER PIN
COTTER PIN
INSTALLATION
Install the brake pedal to main step holder and
assemble the washer and external cir-clip.
Connect the brake pedal to the brake rod joint.
Install the joint pin C and secure it with a new cotter
pin.
Hook the stop switch spring to the brake pedal spring.
Install and tighten the main step bar socket bolts into
the frame to specified torque.
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
REAR BRAKE PEDAL
