19-7
ELECTRIC STARTER
STARTER MAGNETIC SWITCH

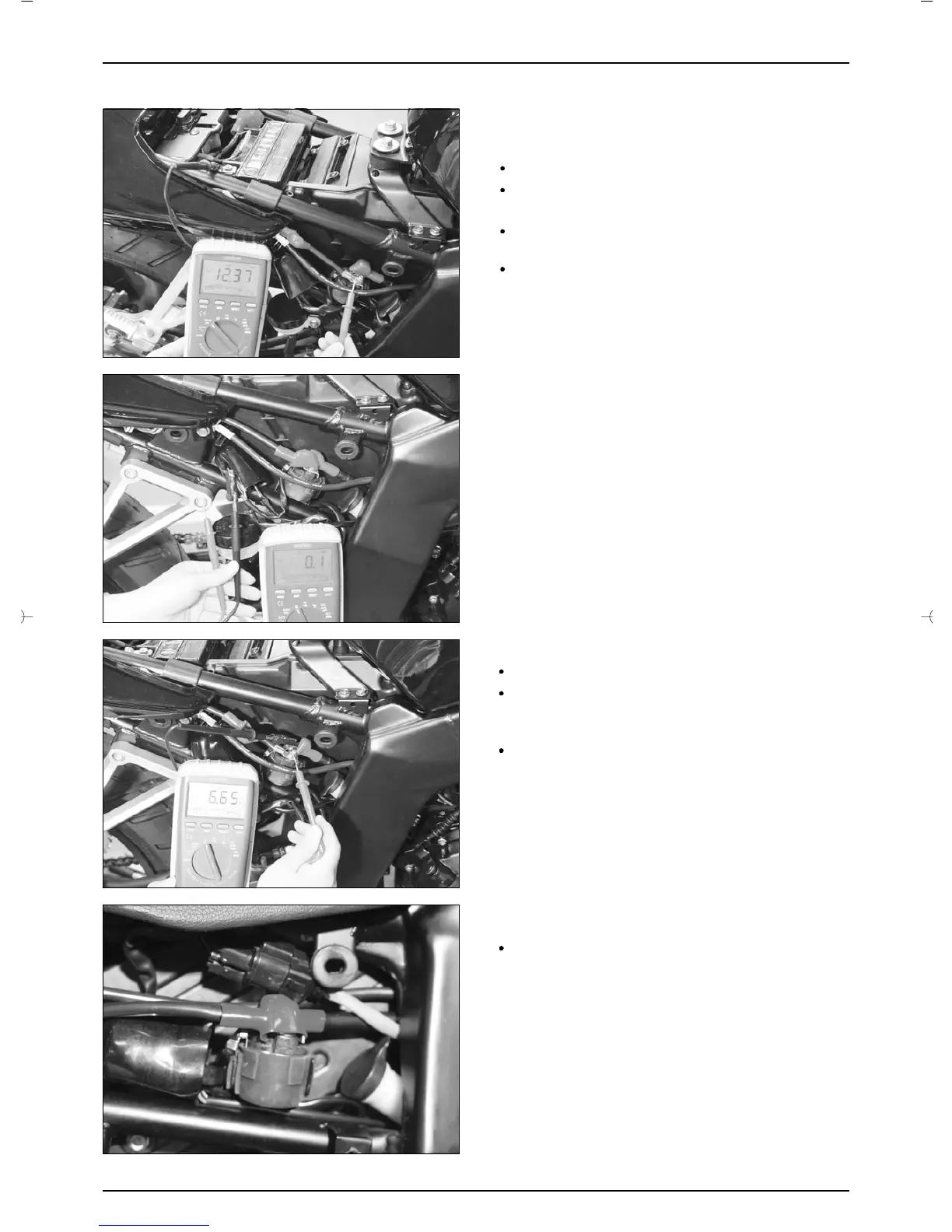

VOLTAGE INSPECTION
Connect the starter magnetic switch connector.
Shift the transmission into neutral.
Measure the voltage between the Yellow/Red wire
terminal(+) and ground (-).
If the battery voltage appears only when the starter
switch is pushed with the ignition switch to "ON", it is
normal.
CONTINUITY INSPECTION
Disconnect the wire connector of the magnetic switch.
Connect the positive wire to the yellow/red wire
terminal and the negative wire to the green/yellow wire
terminal.
There should be continuity.
INSTALLATION
Install in the reverse order of removal.
