DAELIM VJF125 - Page 65

EMS(Engine Management System)
5-14

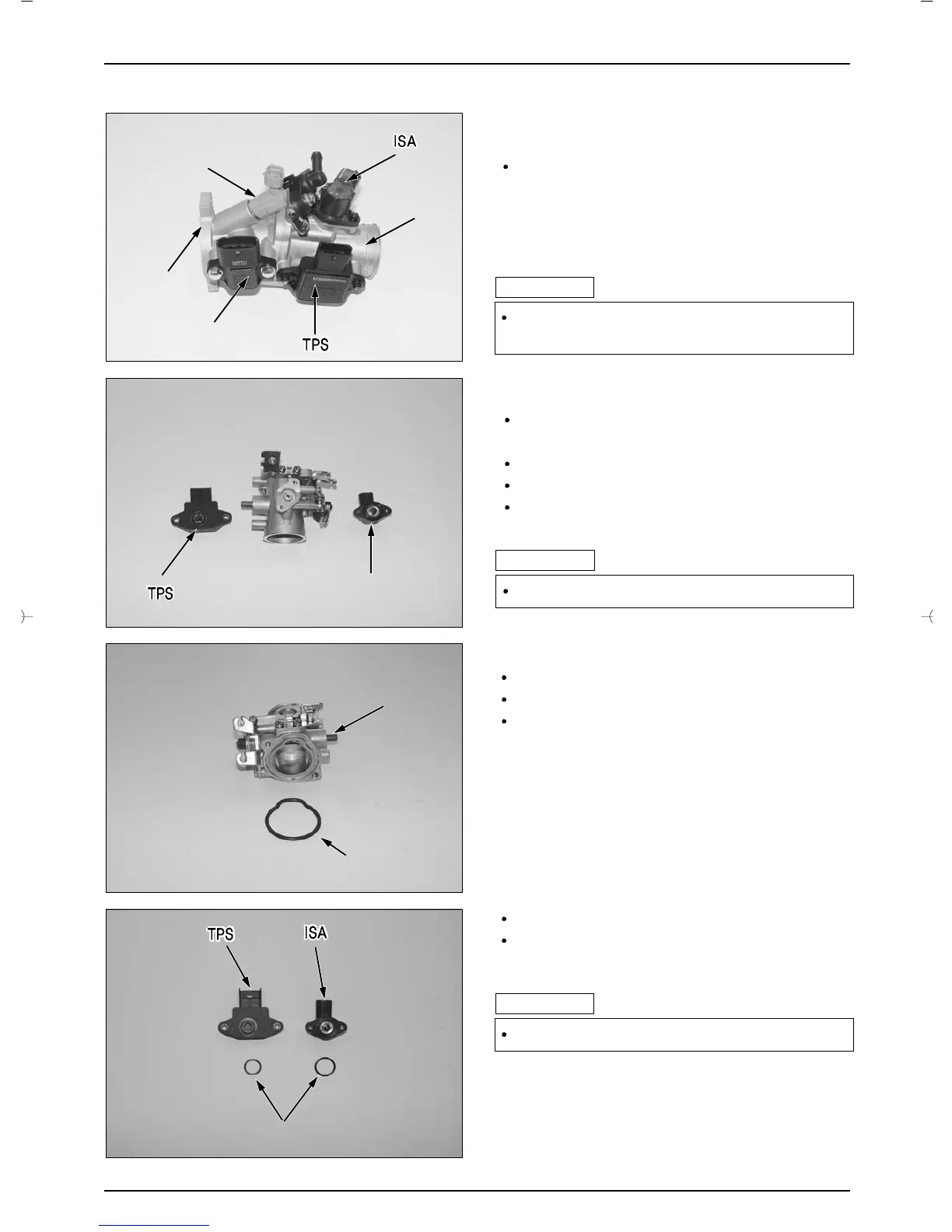

DISCONNECT THE THROTTLE BODY
Remove the each component parts securing
throttle body and check.
Do not disconnect both the throttle adjust
screw and adjust nut.
!
CAUTION
△
REMOVE
Loosen the throttle body 2 bolts securing the
insulator.
Disconnect the TPS (Throttle position sensor).
Disconnect the ISA(Idle speed actuator).
Disconnect the MAPAT.
CHECKING THE THROTTLE BODY
Checking the O-ring.
Checking the Throttle shaft.
Checking the Throttle valve.
Checking the ISA.
Checking the TPS.
Do not disconnect the throttle valve.
!
CAUTION
△
Replace the O-ring with new one.
!
