200416 5-11
Removal and installation
CE ENGINE FUEL SYSTEM
ΧΦ65/75/85 series
4
2
5.4 REMOVAL AND INSTALLATION, FUEL RAIL
When removing the fuel rail, fuel will
escape. Collect the fuel and avoid
the risk of fire.
Dirt in the fuel system can lead to
significant damage to parts of the
system. Prevent this by cleaning the
parts before disassembly and then
sealing all open connections.
Removing the fuel rail
1. Remove the connector from the fuel rail
pressure sensor.
2. If necessary, remove the plug of the inlet air
temperature/boost pressure sensor by
loosening the connector.
3. Remove the connectors of the injectors (1)
from the valve sleeve.
4. Disconnect the cable harness (3) on the fuel
rail (2) and bend the cable harness away
from the fuel rail.
}
}

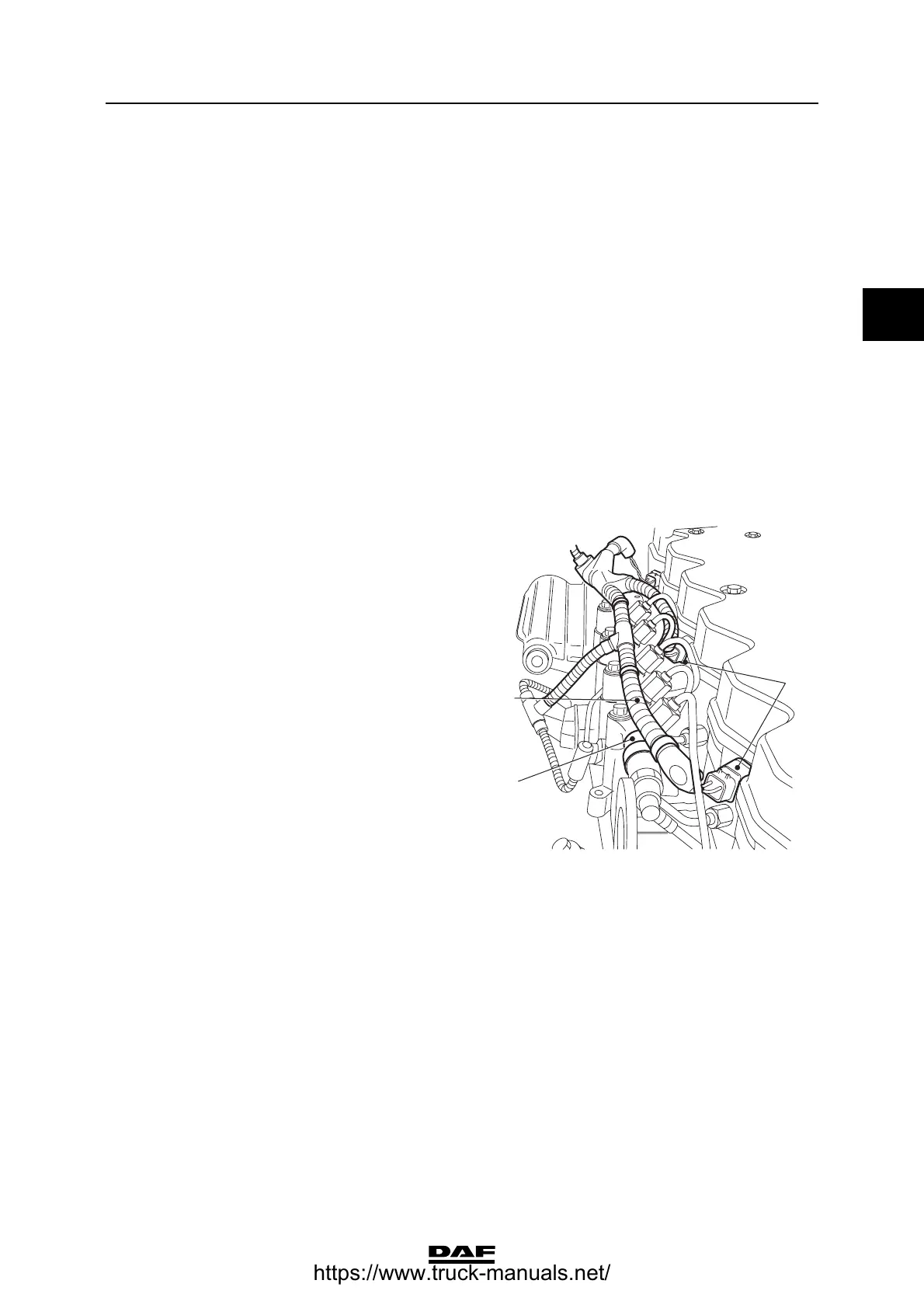

i400809
3
1
2
