Disassembly and assembly
PE ENGINE FUEL SYSTEM
CF65/75/85 series
4
5
5. DISASSEMBLY AND ASSEMBLY
5.1 DISASSEMBLY AND ASSEMBLY, PUMP HOUSING
}
When disassembling the pump
housing, fuel will escape. Collect
this fuel, bearing in mind the risk of
fire.
}
Dirt in the system can lead to
significant damage to fuel system
components.
Disassembling the pump housing
1. Remove the pump housing. See "Removal
and installation".
Note:
If after removal the pump units are not
replaced in the same position, they must be
re-calibrated.
2. Remove the pump units. See "Removal and
installation".
3. Remove the tappet rollers.
4. Remove the fuel lift pump. See "Removal
and installation".
5. Remove the cover and check the O-ring. If
necessary, replace the O-ring.
6. Remove the pulse disc from the pump
camshaft.
7. Remove the locking plate from the pump
camshaft.
Note:
When removing the sealing plates, an
amount of lubricating oil will escape. Collect
this lubricating oil.
8. Remove the sealing plates and the gaskets.
9. Remove the pump camshaft by manoeuvring
it vertically out of the pump housing.
10. Remove the slide bearings using the special
tools (DAF no. 1329444) and
(DAF no. 0535626).

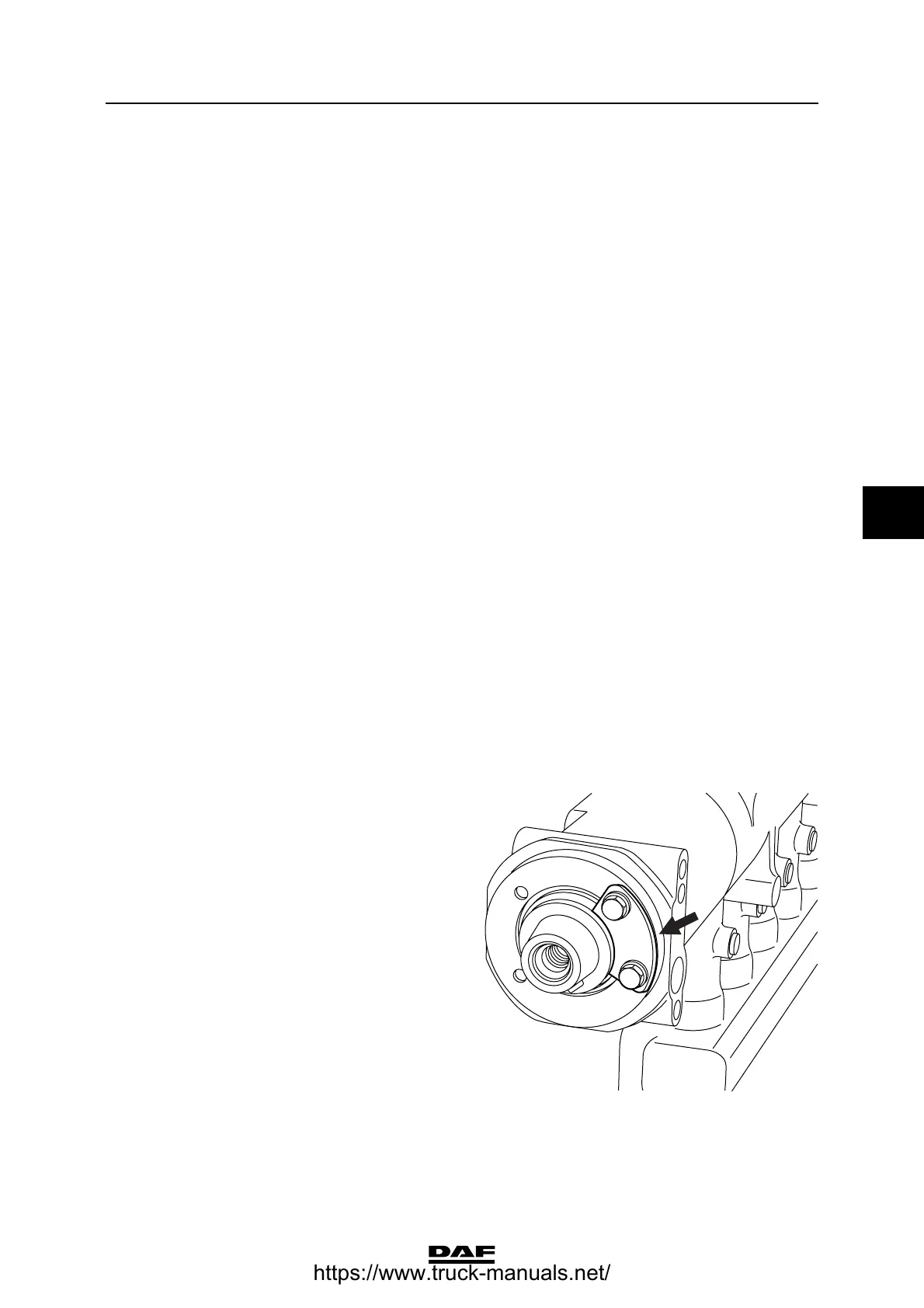

i400380
