CE ENGINE INLET/EXHAUST SYSTEM
4-4
©
200416
Removal and installation
3
ΧΦ65/75/85 series
4
4.2 REMOVAL AND INSTALLATION OF AIR COOLER
Note:
The removal and installation procedure of the air
cooler allows for the presence of an air-
conditioning unit.
If such a unit is not present, the sections
concerned can be skipped.
Removing the air cooler
1. Partially drain the coolant.
2. Disconnect the oil filler pipe (A) from the air
cooler.
3. Disconnect the dipstick holder (B) from the
air cooler.
4. Remove the air inlet hoses (C) between the
engine and the air cooler.
5. Disconnect all rubber hoses that run along
the air cooler.
6. Disconnect the torque rods (D) at the side of
the air cooler.
7. Disconnect the air-conditioning condenser (if
applicable) including accessories from the
radiator.
8. Disconnect the air-conditioning compressor,
if applicable, from the engine and carefully
put the complete air-conditioning system to
one side.
9. Disconnect the air cooler from the radiator
and remove the air cooler.

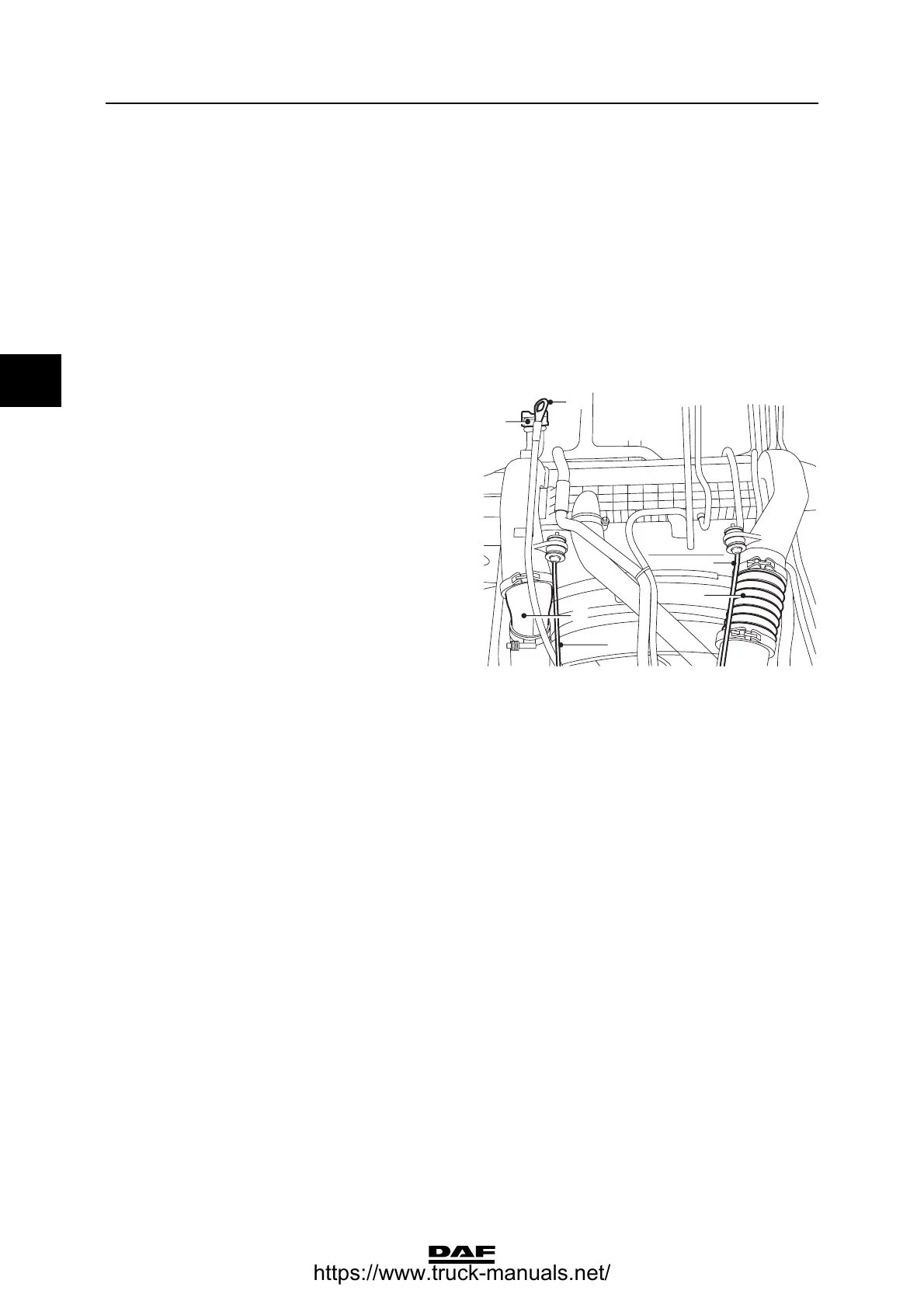

i400871
C
D
A
C
B
D
