5.10 REMOVAL AND INSTALLATION, FUEL TANK FILTER
When the fuel level element is
removed, a quantity of fuel will
escape. Collect this fuel, bearing in
mind the risk of fire.
Removing fuel tank filter
1. Remove the fuel level element.
2. Remove the fuel tank filter.
Fitting fuel tank filter

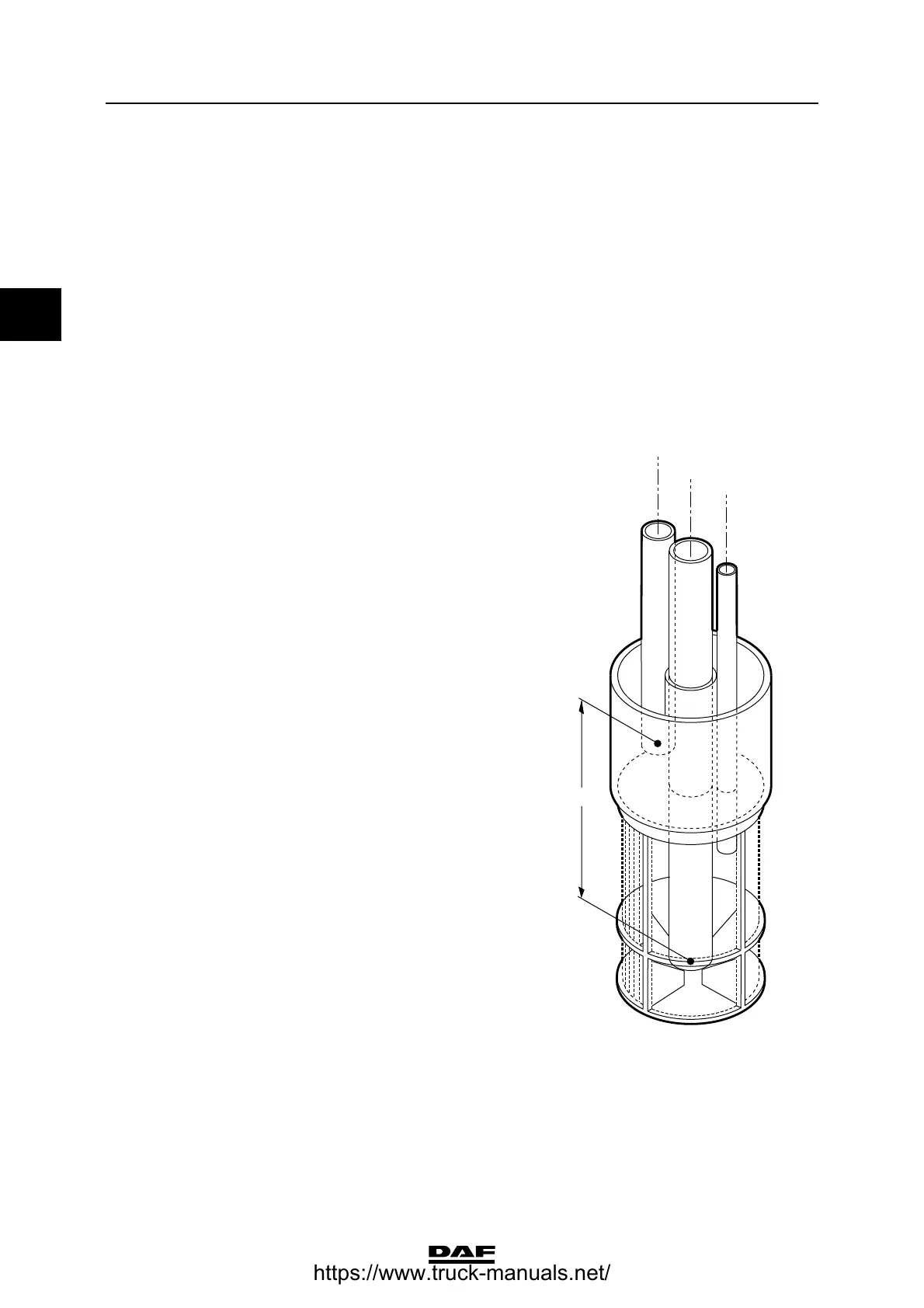

1. Check that the difference in length between
the supply pipe (1) and return pipe (2) is at
least 68 mm.
2. Slide the fuel tank filter as far as possible
onto the supply pipe (1).
Note:
Make sure that when fitting the fuel tank filter
the return pipe (2) is inserted into the fuel
tank filter by-pass and that the cab heater
supply pipe (3), if present, is inserted into the
filter part.
3. Fit the fuel level element.
}
2
1
3
min. 68 mm
i 400240
