Removal and installation
CE ENGINE INLET/EXHAUST SYSTEM
ΧΦ65/75/85 series
4
3
4. REMOVAL AND INSTALLATION
4.1 REMOVAL AND INSTALLATION, TURBOCHARGER
If the turbocharger to be replaced
has been damaged to such an extent
that parts of it are missing or
lubricating oil has entered the inlet
system, the inlet and exhaust
systems must be checked and
cleaned thoroughly in order to
prevent serious damage to the
engine.
Removing the turbocharger
1. Remove the right-hand engine
encapsulation (2).

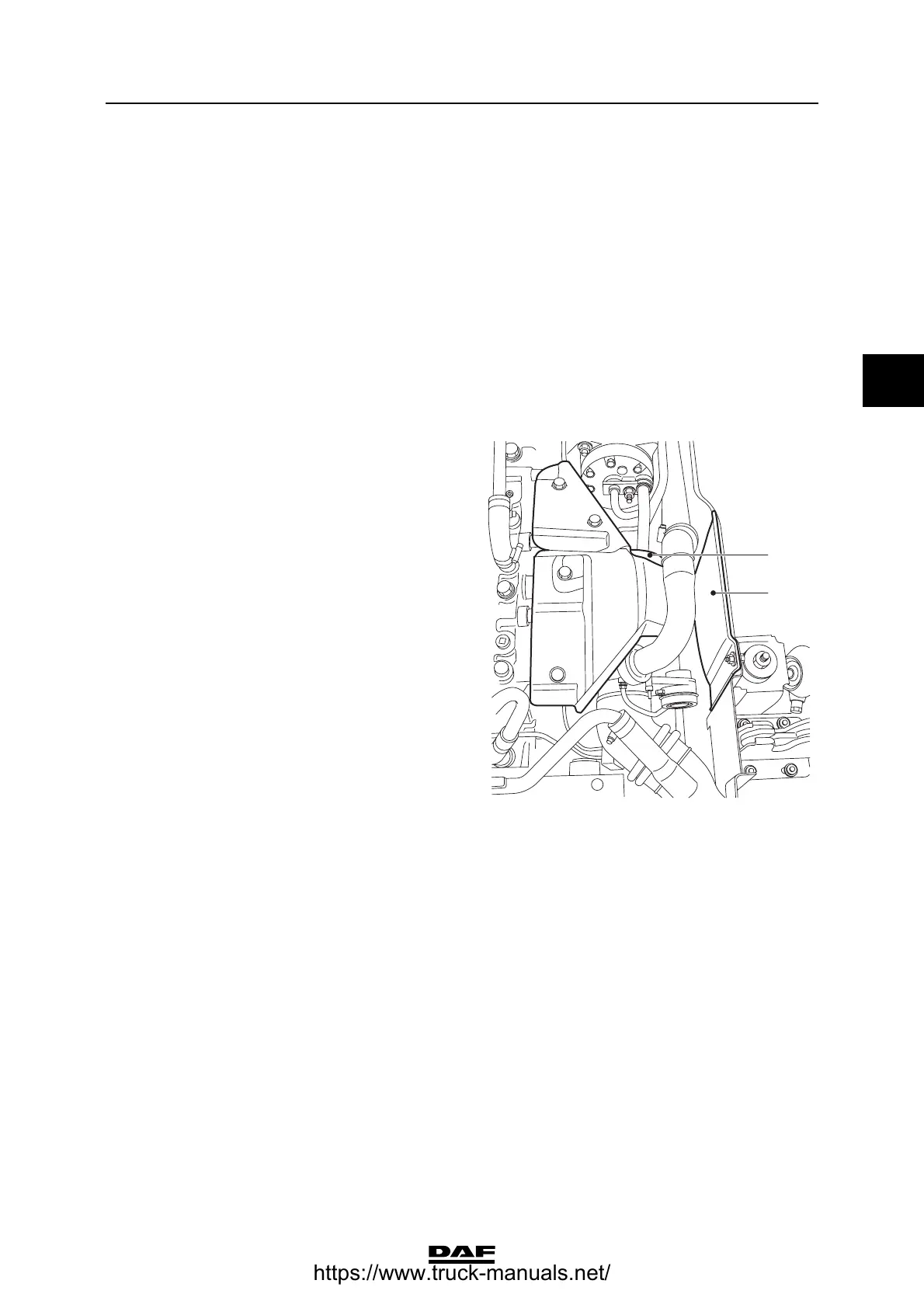

2. Remove the heat shield (1) from the oil filter.
3. Remove each charge pipe and the
turbocharger exhaust pipe.
4. Remove the oil discharge pipe from the
turbocharger.
5. Detach the entire oil supply pipe from the oil
filter housing to the turbocharger.
6. Remove the attachment bolts from the
turbocharger.
7. Remove the turbocharger.
8. Immediately plug the openings.
}
1
i400857
2
