PE ENGINE FUEL SYSTEM

6-2

200324

Cleaning

CF65/75/85 series

6.2 CLEANING, INJECTOR SLEEVE

1. Remove the injector. See "Removal and

installation".

2. Remove any copper washer left behind

using the special tool (DAF no. 1240074).

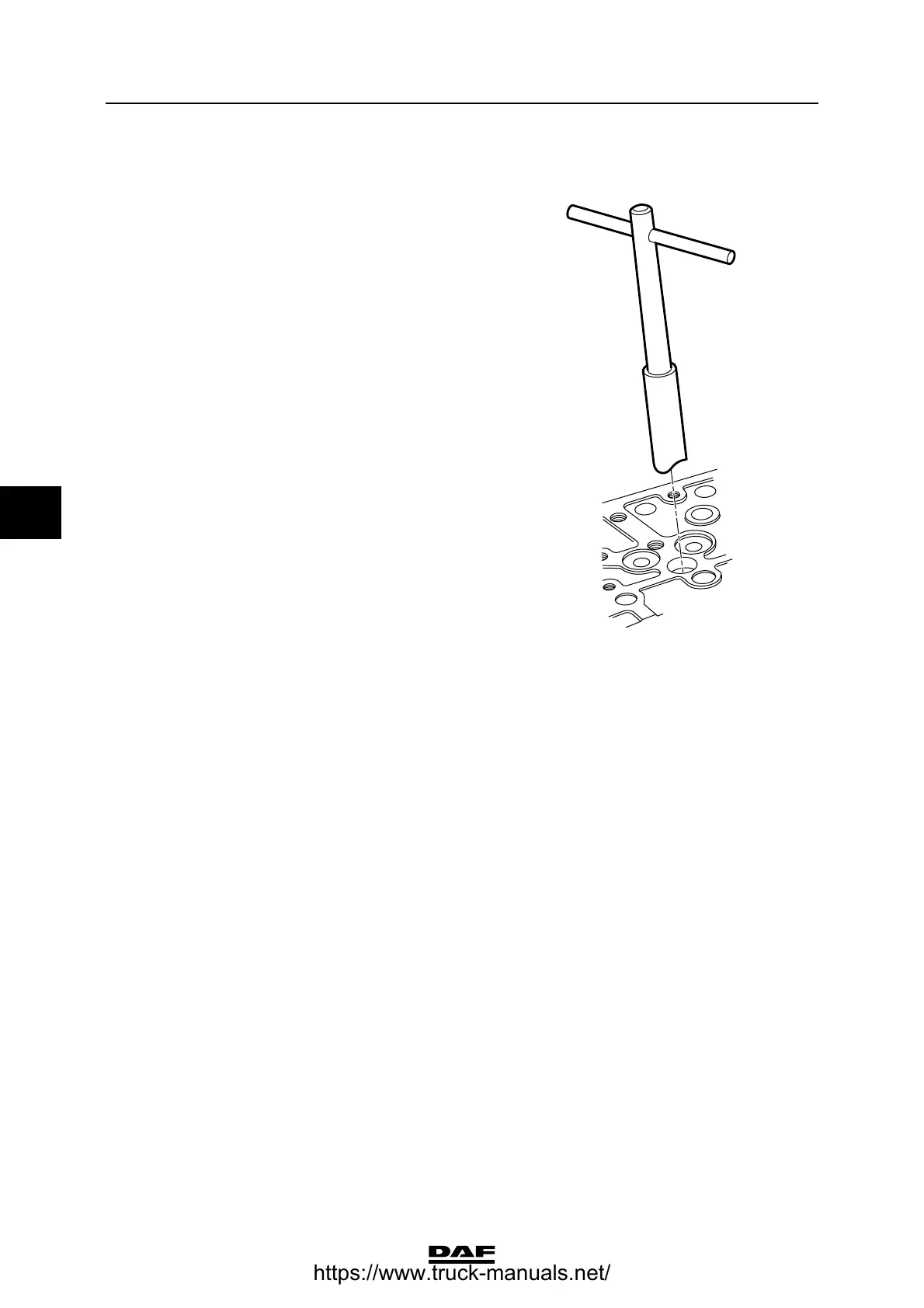

3. Clean the injector sleeve using the special

tool (DAF no. 1240074).

4. Clean the injector sleeve with compressed

air.

5. Fit the injector. See "Removal and

installation".

I400001
