200416 3-7
Inspection and adjustment
CE ENGINE INLET/EXHAUST SYSTEM
ΧΦ65/75/85 series
4
3
3.6 CHECKING INLET UNDERPRESSURE

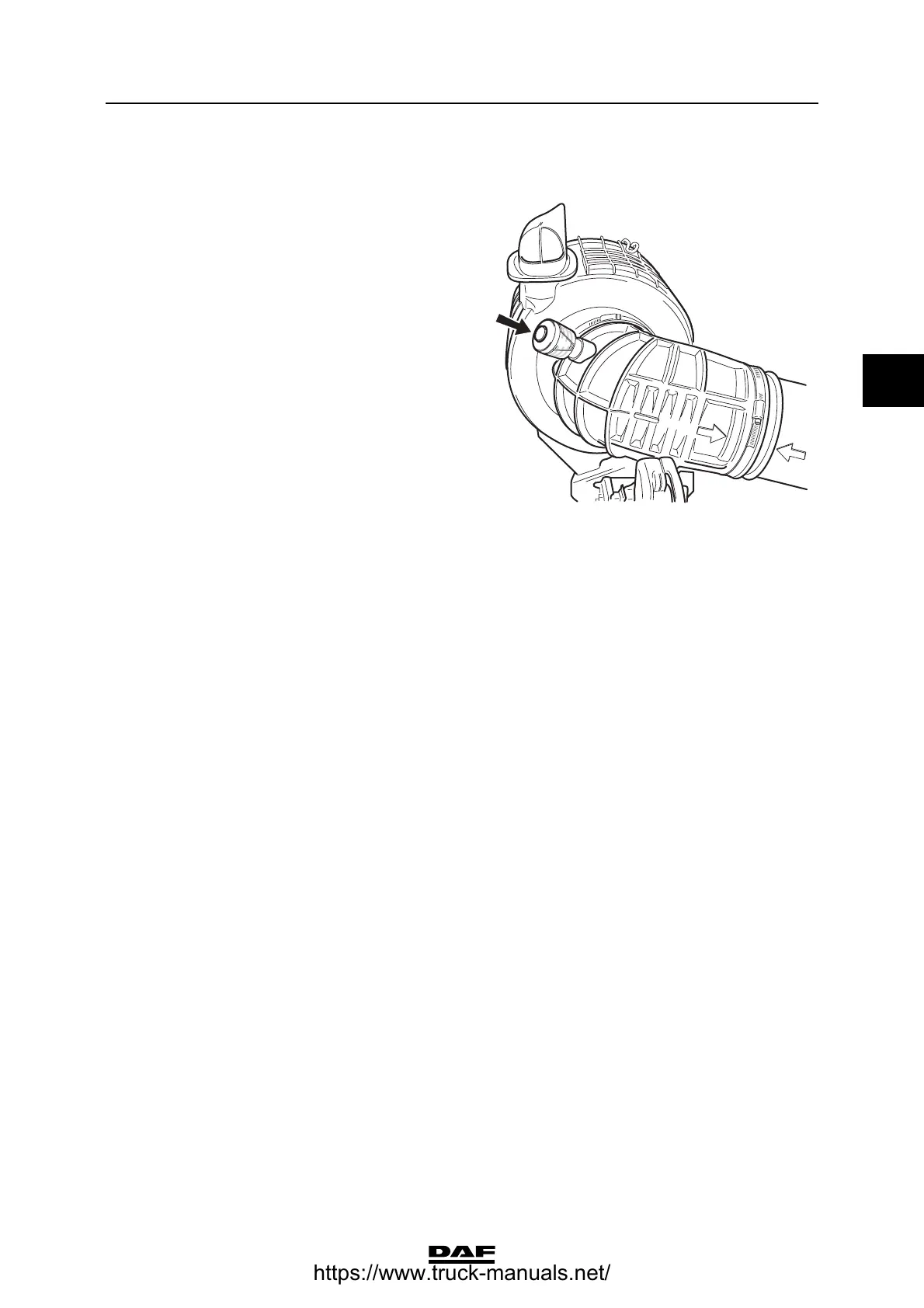

1. Remove the air filter indicator from the inlet
pipe between the air filter housing and the
turbocharger.
2. Connect a pressure gauge with a maximum
rating of -100 mbar (-10 kPa) to the
connection of the air filter indicator.
3. Measure the inlet underpressure at full-load
engine speed and compare the
measurement to the specified value. See
"Technical data".
4. Remove the pressure gauge and fit the air
filter indicator.
i400869
