Removal and installation
CE ENGINE FUEL SYSTEM
ΧΦ65/75/85 series
4
2
5.2 REMOVAL AND INSTALLATION, FUEL SUPPLY PIPE
When removing a fuel pipe, fuel will
escape. Collect the fuel and avoid
the risk of fire.
Dirt in the fuel system can lead to
significant damage to parts of the
system. All open connections must
therefore be sealed.
Removing the fuel supply pipe
1. Disconnect the injector pipes.
2. If necessary, remove the fuel rail.

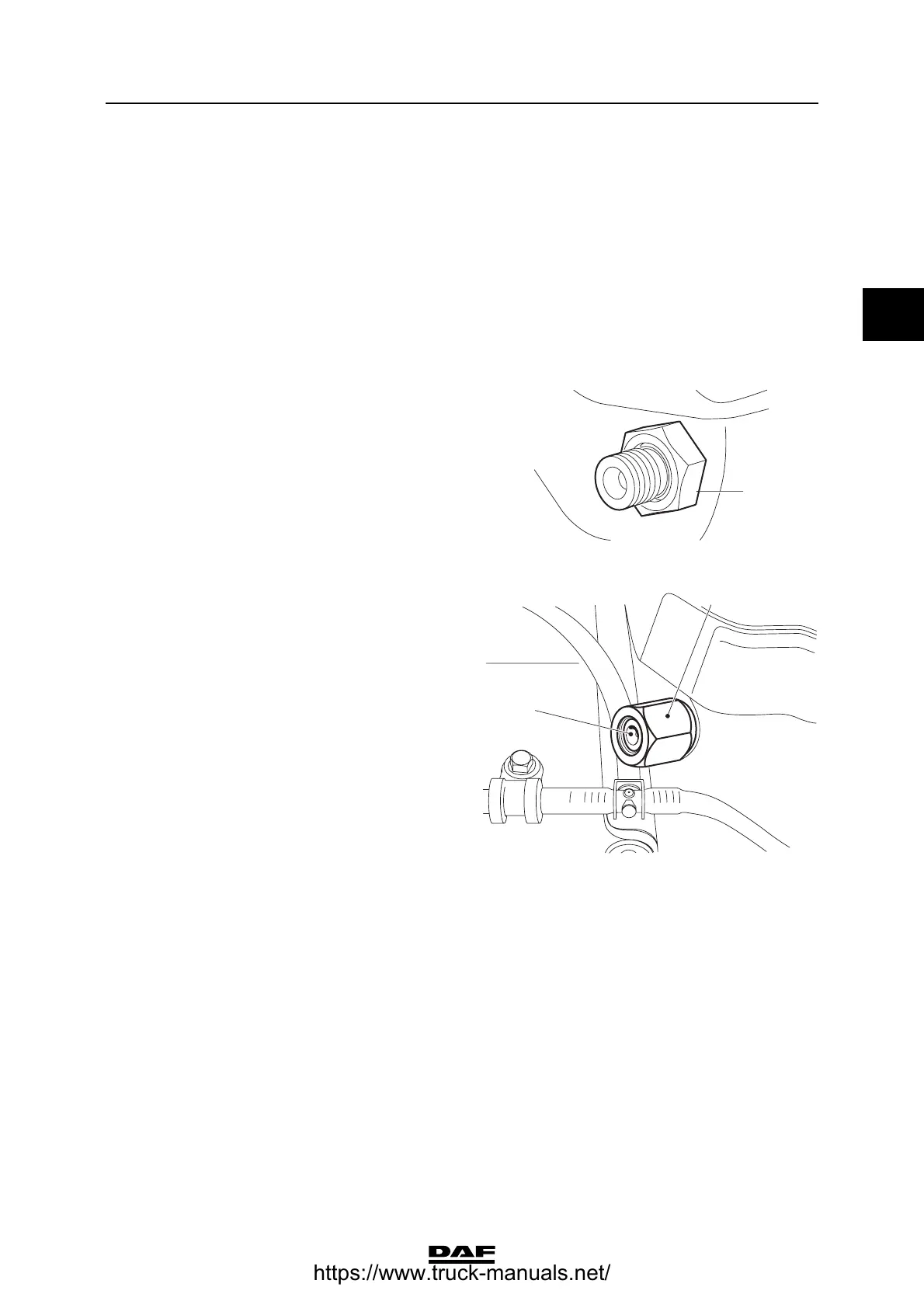

3. Remove the nut (1) from the fuel supply pipe.
4. Mark the positions of the fuel supply pipe (1)
and pull it out of the cylinder head with
special tool (DAF no. 1329473) (2).
Note:
If the injector is not replaced, the fuel supply
pipe may be re-used provided it is fitted with
the original injector.
Installing the fuel supply pipe
The following guidelines must be adhered to:
- If the injector is defective, both the injector
and the fuel supply pipe must be replaced.
- If the fuel supply pipe is defective and in
addition the sealing surface with the injector
is damaged, both the injector and the fuel
supply pipe must be replaced.
- If the fuel supply pipe is defective and the
sealing surface with the injector is not
damaged, the fuel supply pipe must be
replaced but the injector can be reused.
}
}
1
i400486
i400823
2
1
