200416 2-1

General

CE ENGINE INLET/EXHAUST SYSTEM

ΧΦ65/75/85 series

2. GENERAL

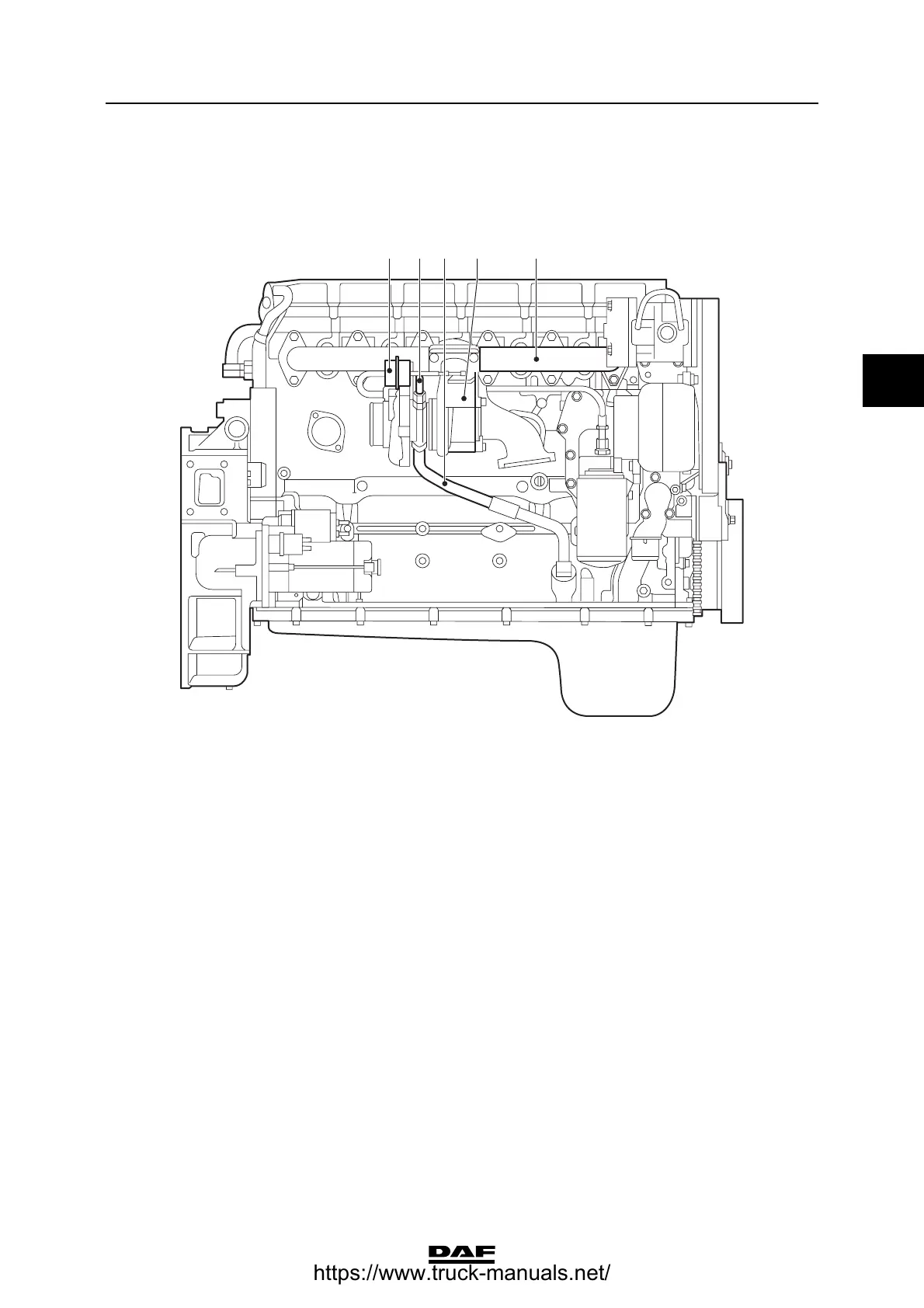

2.1 LOCATION OF COMPONENTS

1. Wastegate diaphragm box

2. Oil supply pipe

3. Oil discharge pipe

4. Turbocharger

5. Exhaust manifold

3 4 51 2

i400840
