200416 2-11
General
CE ENGINE FUEL SYSTEM
ΧΦ65/75/85 series
4
2

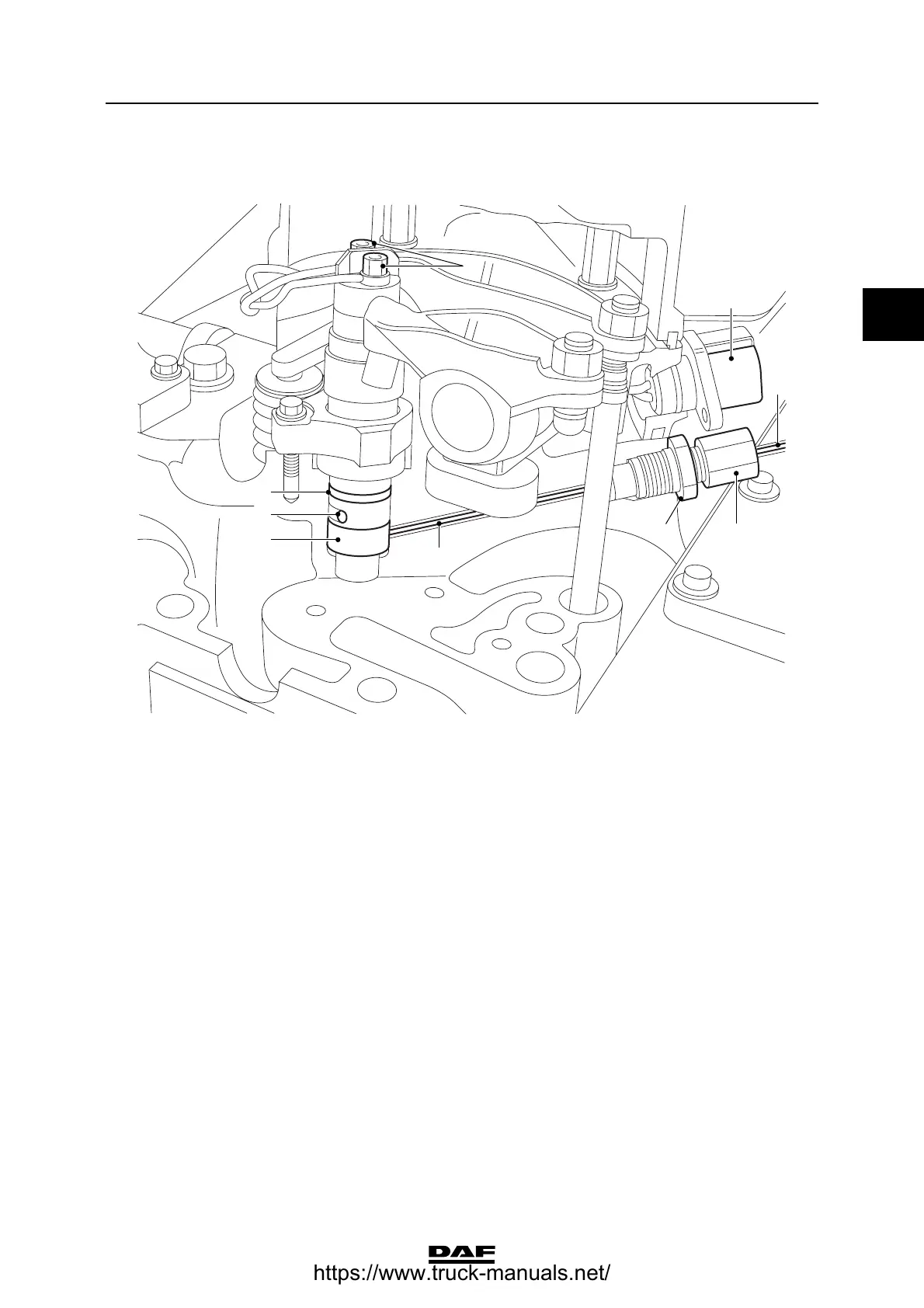

2.5 OVERVIEW DRAWING, FUEL SYSTEM, CYLINDER HEAD
i400653
5
1
1
2
4
8
7
6
9
3
1. Injector pipe
2. Union
3. Nut
4. Fuel supply pipe
5. Connector to injectors
6. O-ring
7. Return opening
8. Injector
9. Electrical connection
