200324 4-7

Removal and installation

XE ENGINE FUEL SYSTEM

CF65/75/85 series

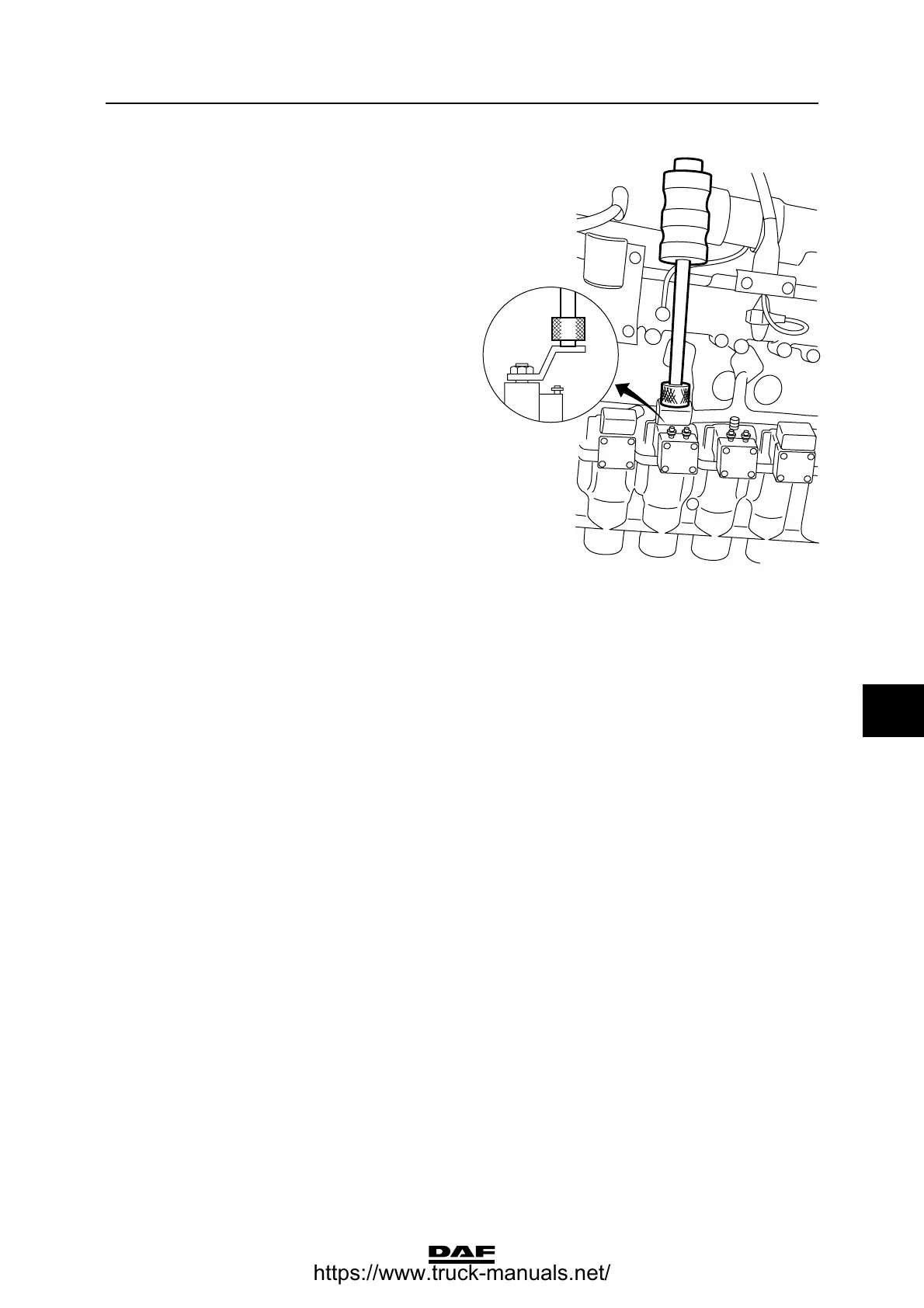

9. Remove the pump unit. If necessary use the

special tools (DAF no. 0694928) and

(DAF no. 1329448).

i 400396
