XE ENGINE FUEL SYSTEM
4-10
©
200324
Removal and installation
8
CF65/75/85 series
4
4.6 REMOVAL AND INSTALLATION, PUMP HOUSING
}
When removing the pump housing,
fuel will escape. Collect this fuel,
bearing in mind the risk of fire.
}
Dirt in the fuel system can lead to
significant damage to pump units
and housing.
Removing the pump housing

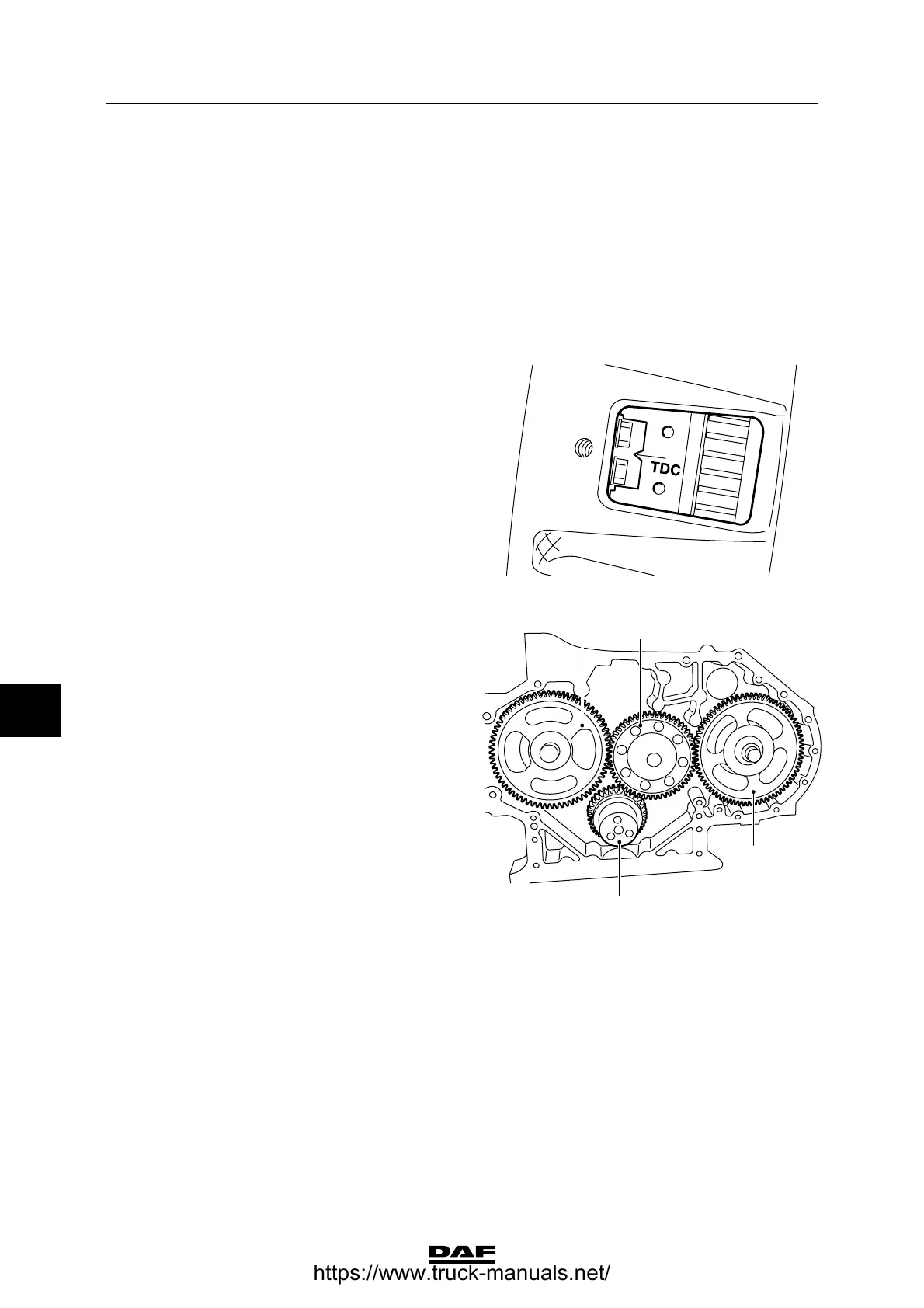

1. Crank the engine until the valves of cylinder
6 are in overlap position and the TDC mark
on the flywheel is in the correct position.
2. Remove the timing cover.
3. Remove the attachment bolt of the idler gear
(3) and pump housing camshaft gear (4).
Note:
When the crankshaft (1) or the camshaft (2)
without idler gear (3) is rotated separately,
the engine's pistons may touch the valves.
4. Remove the idler gear (3).
5. Remove the pump housing camshaft
gear (4).
M201185
M200725
1
4
3
2
