XE ENGINE INLET/EXHAUST SYSTEM
3-4
©
200324
Inspection and adjustment
9
CF65/75/85 series
4
3.4 CHECKING INLET UNDERPRESSURE

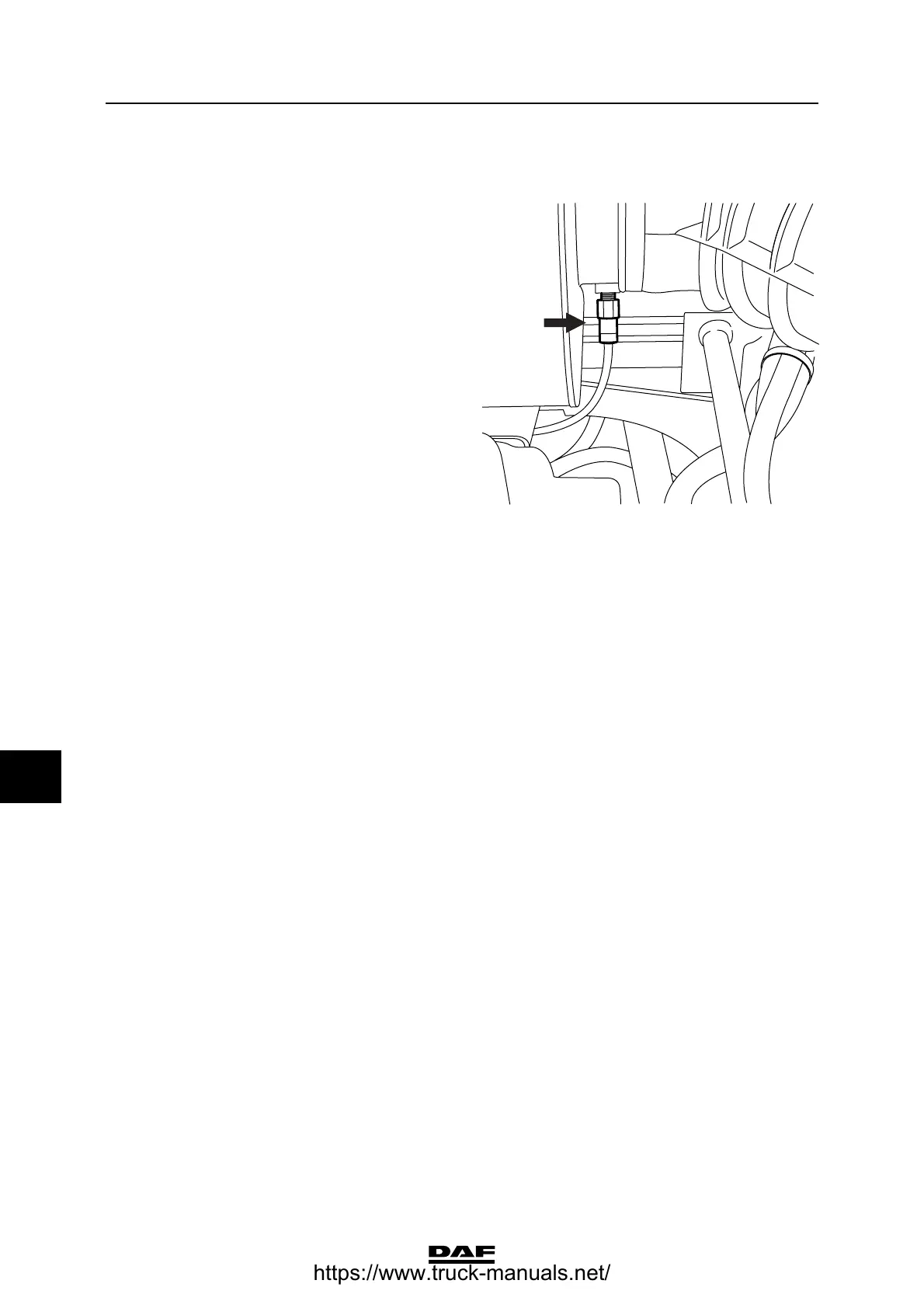

1. Remove the underpressure indicator
connection (A) from the air intake pipe
between the air filter housing and
turbocharger.
2. Connect a pressure gauge with a maximum
rating of -100 mbar (-10 kPa) to the
connection of the underpressure indicator.
3. Measure the inlet underpressure at full-load
engine speed and compare the
measurement to the specified value. See
"Technical data".
3.5 CHECKING THE GLOW PLUG
Checking the glow plug
1. Remove the electrical connections on the
glow plug.
2. Using a multimeter, determine the resistance
of the glow plug. See "Technical data".
3. Remove the connecting hose between the
inlet pipe and the air cooler.
4. Check whether the glow plug is damaged.
i400377
A
