XE ENGINE INLET/EXHAUST SYSTEM
4-2
©
200324
Removal and installation
9
CF65/75/85 series
4
1. Fit (if removed) the exhaust brake (4).
2. Install the turbocharger (7) on the exhaust
manifold flange and tighten the attachment
nuts to the specified torque. See "Technical
data". If necessary, turn the two halves of the
housing so that the oil and air pipes can be
connected free of stress.
3. Attach the exhaust pipe (3) to the clamping
strip (4) on the exhaust brake.
4. Fasten the air pipe of the exhaust brake
cylinder (8).
5. Fit the oil discharge pipe.
6. Pour clean engine oil into the oil supply of the
turbocharger and fit the oil supply pipe.
7. Fit the air inlet ipie (1) and the flexible pipe
(2).
8. Install the heat shields (6 and 5) and tighten
the attachment bolts to the specified torque.
See "Technical data".
9. Fit the sealing plate.
10. Always check the setting of the wastegate,
see "Inspection and adjustment".

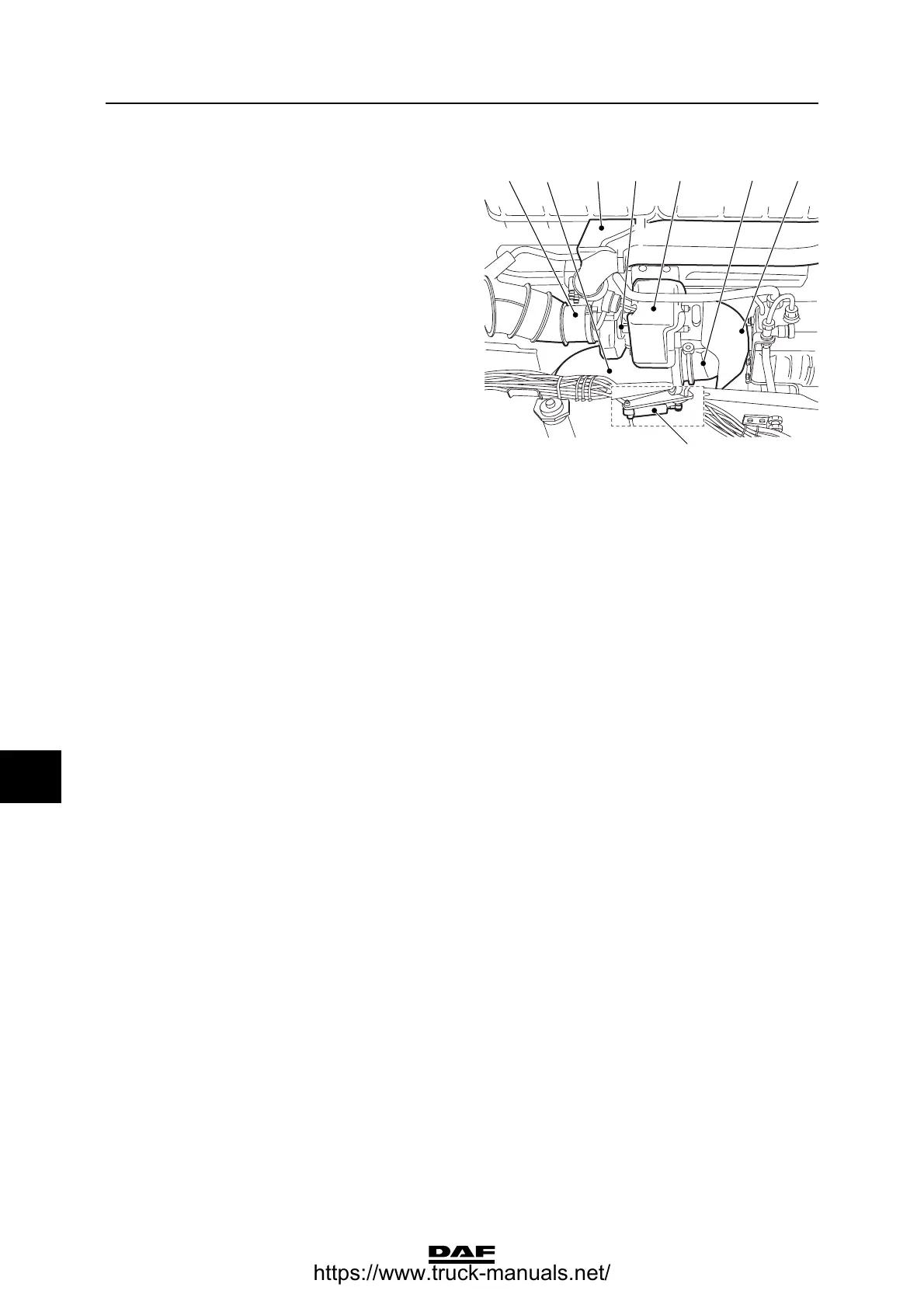

i400671
67
3
1
2 5
4
8
