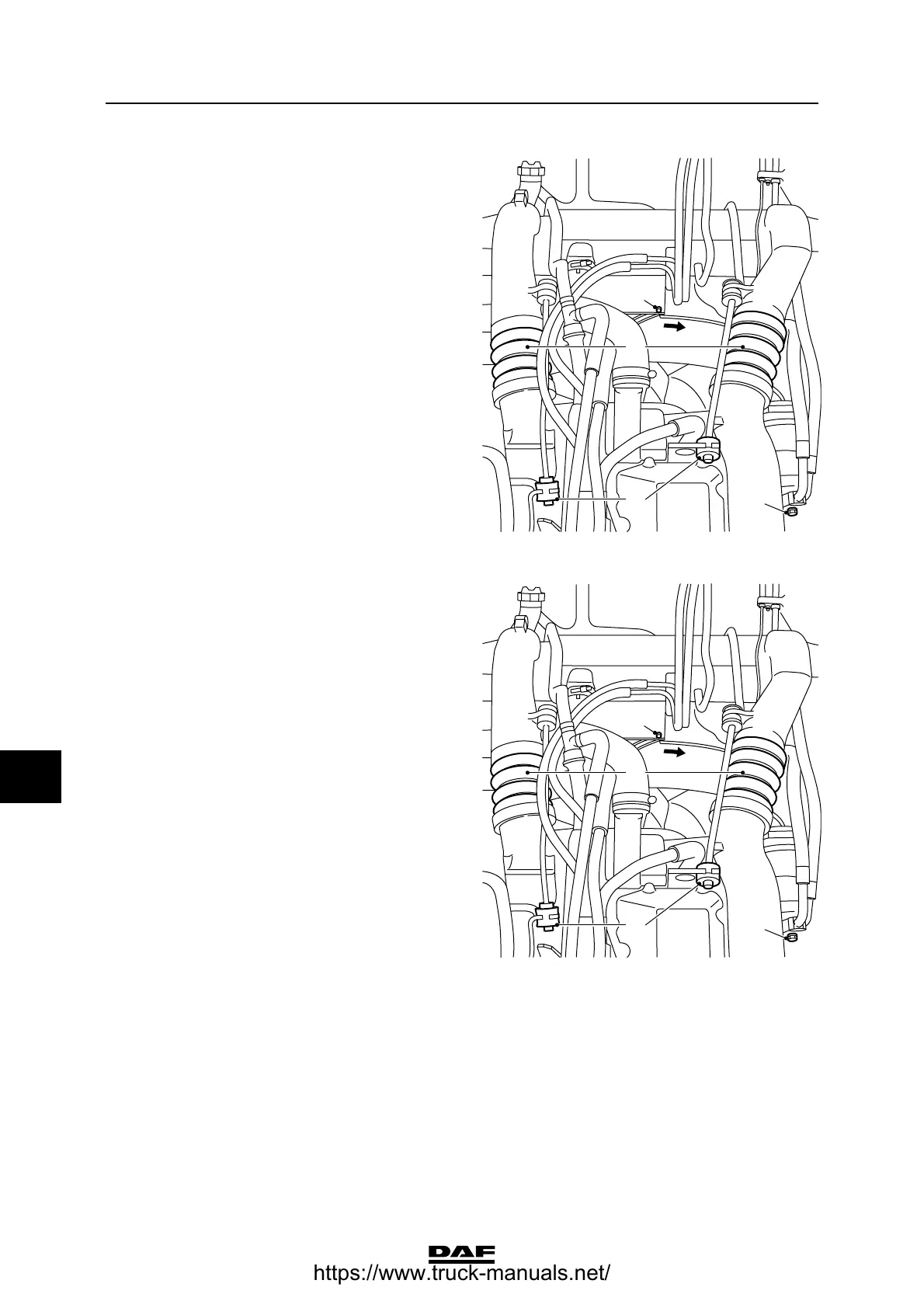

Page #316 background image
XE ENGINE INLET/EXHAUST SYSTEM
4-4
©
200324
Removal and installation
9
CF65/75/85 series
4
7. Remove the left push/pull rod (H).
8. Remove the rubber air inlet hoses (F).
9. Remove the retaining screw (G) and turn the
wind tunnel collar into the wind tunnel.
10. Remove the attachment nuts on the bottom
of the radiator and remove the assembly.
Installing the air cooler
1. Position the radiator assembly, carefully
lower it into the chassis and fasten the
radiator.
2. Turn the wind tunnel collar back and position
the retaining screw (G).
3. Fit the rubber air inlet hoses (F).
4. Fit the push/pull rods (H).
M201032
HJ
G
F
M201032
HJ
G
F
