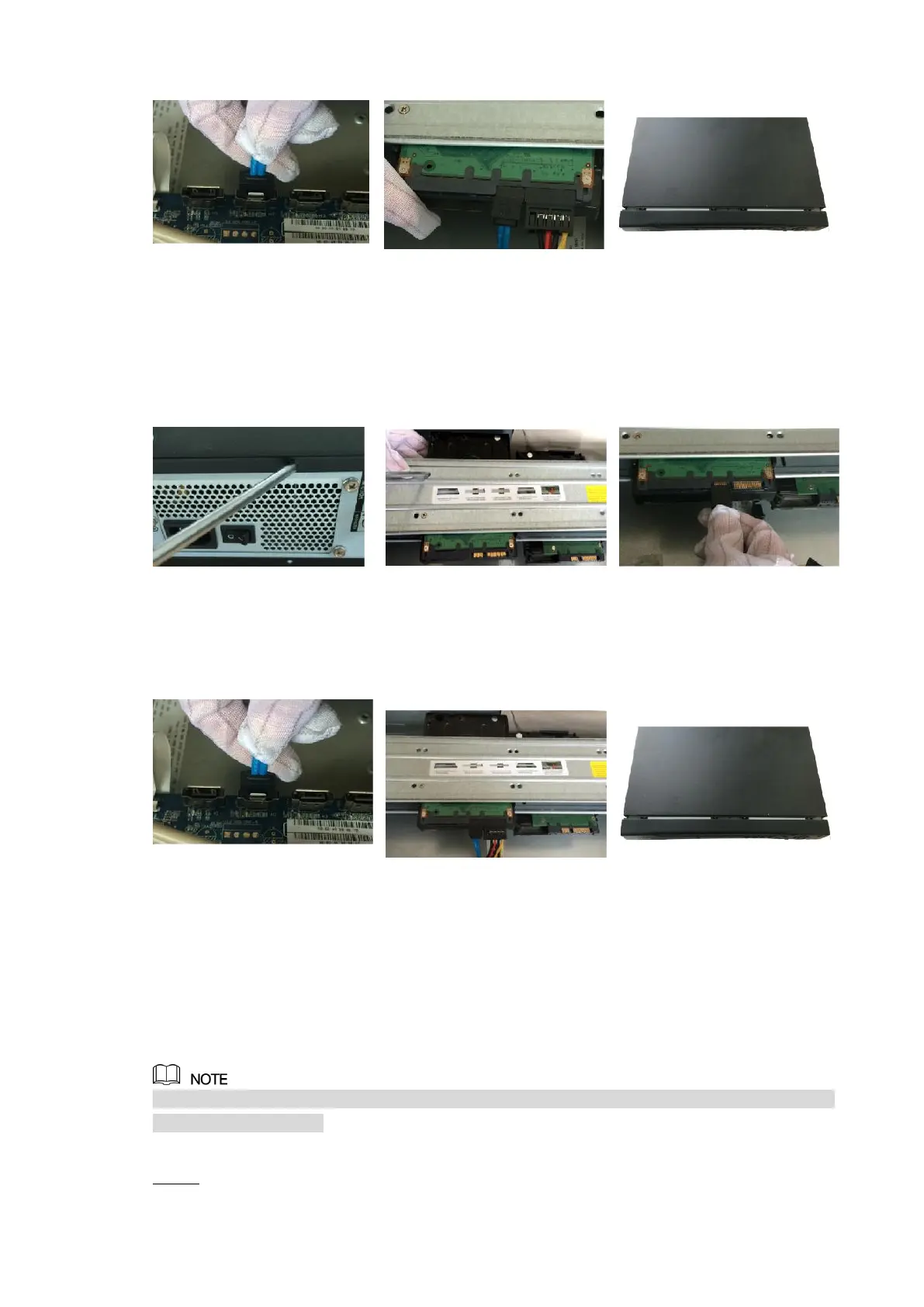

Getting Started 8
cover.
HDD onto the bracket.
cable to the HDD.
4. Connect the other end of
HDD cable to the
mainboard.
5. Use the power cable to
connect HDD and
mainboard.
6. Put back the cover and fix
the screws.
2.2.6 DH-XVR7816S-4KL-X/DH-XVR5832S-X
1. Remove the screws on
the cover.
2. Fix the HDD(s) onto the
bracket. Remove the top
bracket if you want to
install HDD to the bottom
bracket.
3. Connect one end of HDD
cable to the HDD.
4. Connect the other end of
HDD cable to the
mainboard.
5. Use the power cable to
connect HDD and
mainboard.
6. Put back the cover and fix
the screws.
2.3 Installing Device into Rack
Only DH-XVR7416L-4KL-X/DH-XVR5432L-X/DH-XVR7816S-4KL-X/DH-XVR5832S-X models
support this installation.
To install the DVR into rack, do the following:
Check whether the in-house temperature is lower than 35(95) and make sure the Step 1
15 cm (6 in.) spacing around the Device for ventilation.
