The Grand Tour 16
3.2 Rear Panel
3.2.1 DH-XVR5108C-X/DH-XVR5104C-4KL-X/DH-XVR5104C-X/
DH-XVR4104C-X/DH-XVR4108C-X

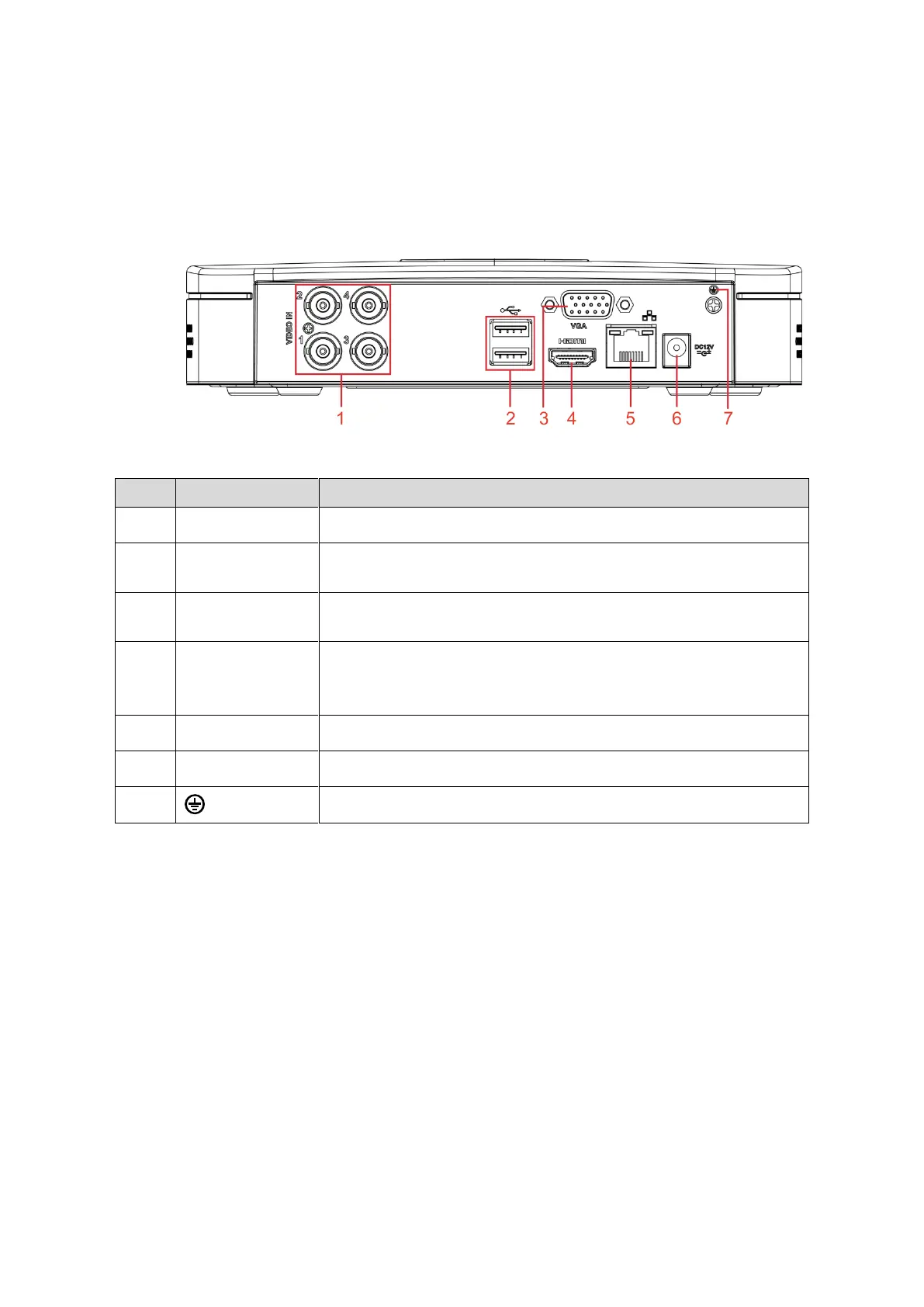

Figure 3-11
No.
Port Name
Function
1
Video input port
Connects to analog camera to input video signal.
2
USB port
Connects to external devices such as USB storage device,
keyboard and mouse.
3
VGA port
Outputs analog video data to the connected display with VGA
port.
4
HDMI port
High definition audio and video signal output port.
The port outputs the uncompressed high definition video and
multi-channel audio data to the connected display with HDMI port.
5
Network port
Connects to Ethernet port.
6
Power input port
Inputs 12V DC power.
7
Ground terminal.
Table 3-11
