The Grand Tour 24
No.
Port Name
Function
RS-485
communication port
Connects to the control devices such as speed dome PTZ.
RS-485_A port is connected by the cable A and RS-485_B is
connected to the cable B.
Four-wire
full-duplex RS-485
port (T+, T-, R+, R-)
Four-wire full-duplex 485 port. T+ and T- is the output wire; R+
and R- is the input wire.
Power output
control for alarm
(CTRL 12V)
Controls power output for alarm. The current is 500 mA.
Turns off power output when there is alarm output.
Turns on power output when the alarm is cleared.
12V power output
port
Provides power to external devices such as camera and alarm
device. Please note the power supply shall be below 1A.
Ground.
10
Network port
Connects to Ethernet port.
12
VGA port
Outputs analog video data to the connected display with VGA
port.
13
HDMI port
High definition audio and video signal output port.
The port outputs the uncompressed high definition video and
multi-channel audio data to the connected display with HDMI
port.
14
RS-232 debug
COM
The port is used for general COM debug to configure IP address
or transfer transparent COM data.
15
USB port
Connects to the external devices such as keyboard, mouse, and
USB storage device.
16
eSATA port
External SATA port which connects to the device with SATA port.
Perform the jumper configuration when connecting HDD.
Table 3-17

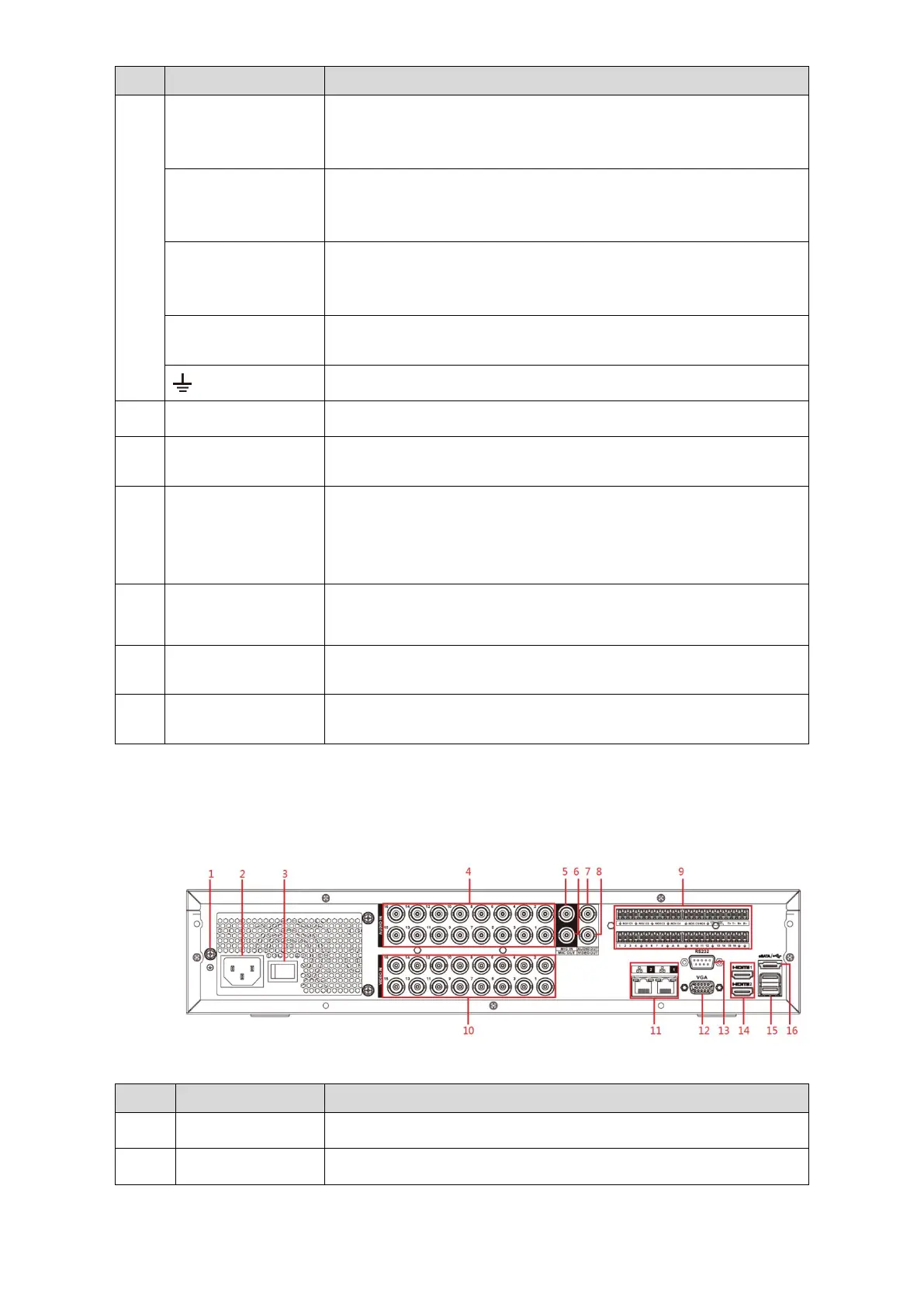

3.2.8 DH-XVR7816S-4KL-X/DH-XVR5832S-X
Figure 3-19
No.
Port Name
Function
1
GND
Ground.
2
Power input port
Inputs power.
