RJ45-RS-232 Connection Cable Definition 316
RJ45-RS-232 Connection Cable Definition Appendix 8
Here we are going to make standard RS-232 port and standard RJ45 (T568B).

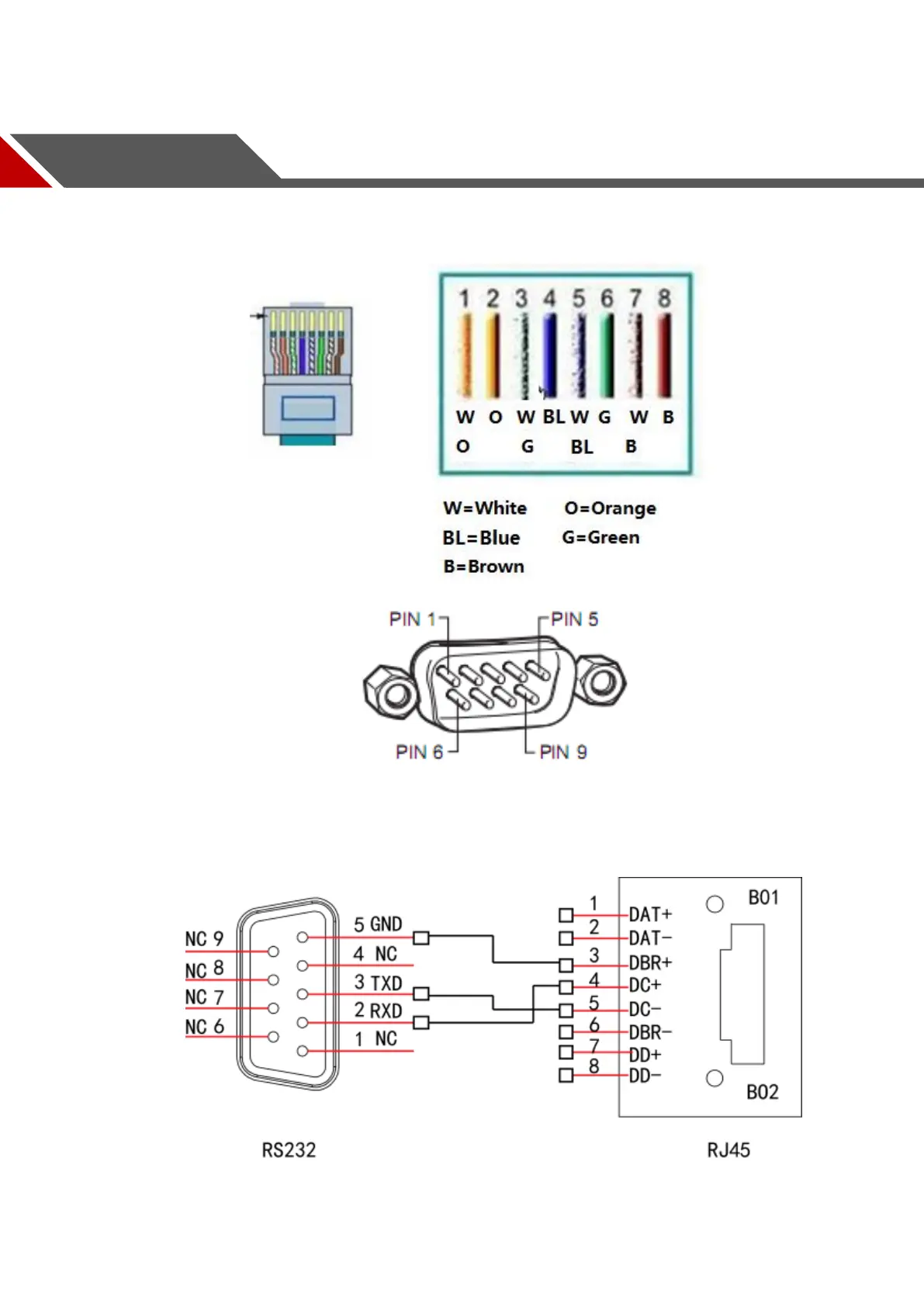

Please refer to the following figure for RJ45 cable definition.
Please refer to the following figure for RS-232 pin definition.
Cross Connection
Please refer to the following figure for connection information.
Please refer to the following table for detailed crossover cable connection information.
