The Grand Tour 19
3.2.4 DH-XVR5108H-X/DH-XVR5116H-X/DH-XVR5104H-4KL-X/D
H-XVR5108H-4KL-X/DH-XVR5116H-4KL-X/DH-XVR5108HE-X/DH-
XVR5116HE-X/DH-XVR7104HE-4KL-X/DH-XVR7108HE-4KL-X/DH
-XVR7116HE-4KL-X/DH-XVR7108HE-4K-X/DH-XVR5104H-X/DH-X
VR5104HE-X

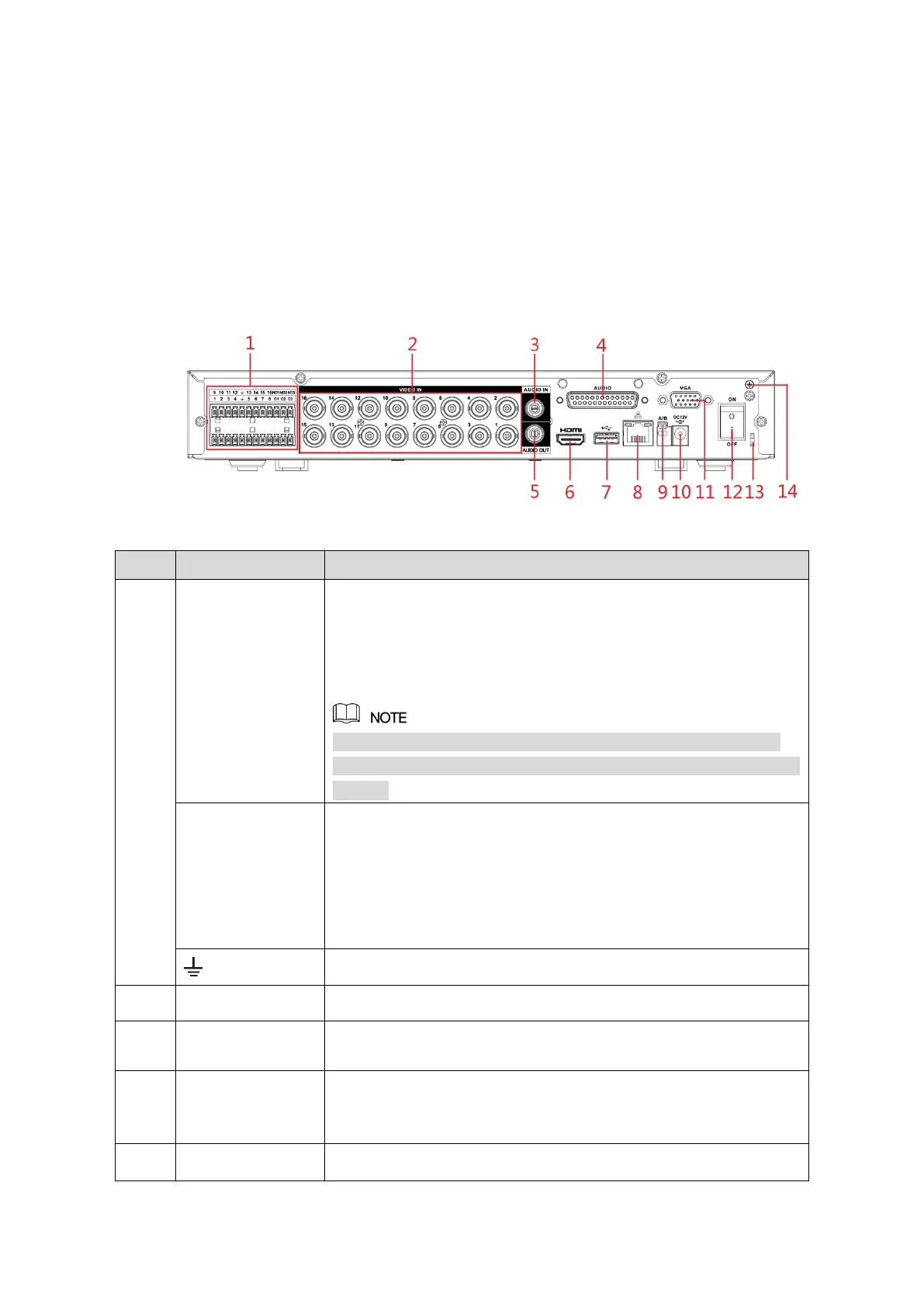

Figure 3-15
No.
Port Name
Function
1
Alarm input port
116
Four groups of alarm input ports (Group 1: port 1 to port 4; Group
2: port 5 to port 8; Group 3: port 9 to port 12; Group 4: port 13 to
port 16). These ports receive the signal from the external alarm
source. There are two types: NO (Normally Open) and NC
(Normally Closed).
When your alarm input device is using external power, please
make sure the alarm input device and the Device have the same
ground.
Alarm output port
13 (NO1NO3;
C1C3)
Three groups of alarm output ports (Group 1: port NO1C1,
Group 2: port NO2C2, Group 3: port NO3C3). These ports
output alarm signal to the alarm device. Please make sure
power supply to the external alarm device.
NO: Normally open alarm output port.
C: Alarm output public end.
Ground.
2
Video input port
Connects to analog camera to input video signal.
3
Audio input port
Receives audio signal output from the devices such as
microphone. It corresponds to video input port 1.
4
DB25 port
Connects to the audio splitter taken from the package to convert
to audio input port which receives the audio signal from devices
such as microphone. It corresponds to video input ports 216.
5
Audio output port
Outputs audio signal to the devices such as the sound box.
