Dahua NVR1A-4P Series User Manual

91

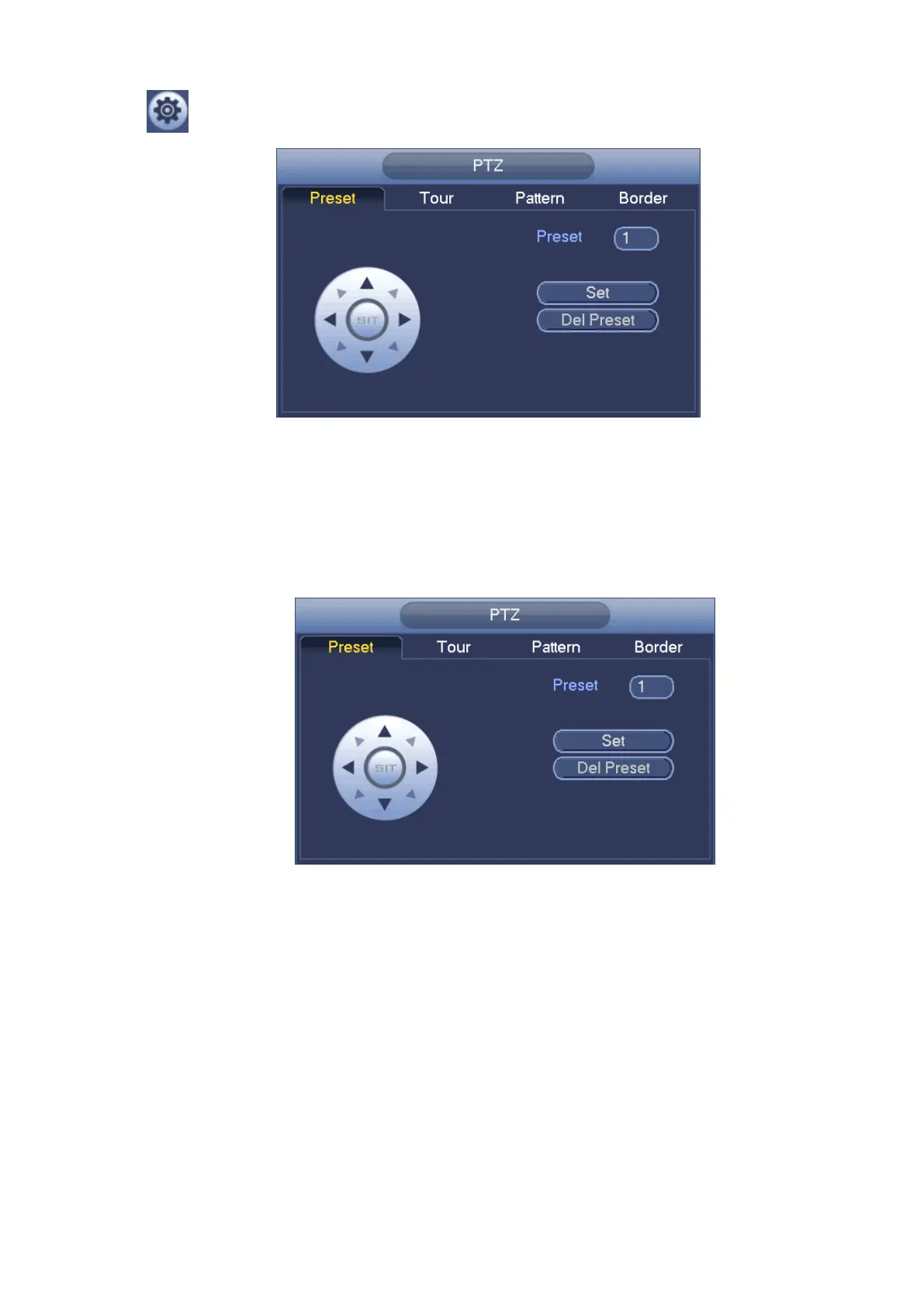

Click , you can go to the following interface to set preset, tour, pattern, and scan. See Figure 4-65.
Figure 4-65
Preset Setup
In Figure 4-65, click preset button and use eight direction arrows to adjust camera to the proper position.
The interface is shown as in Figure 4-66.
Click Set button and then input preset number.
Click Set button to save current preset.
Figure 4-66
Tour Setup
In Figure 4-65, click tour button.
Input tour value and preset No. Click Add preset button to add current preset to the tour. See Figure 4-67.
Tips
Repeat the above steps to add more presets to the tour. Click Del preset button to remove it from the tour.
Please note some protocols do not support delete preset function.
