Port Name
Connection
Function
MIC OUT
Audio output port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
● Bidirectional talk output.
● Audio output on 1-window video monitor.
● Audio output on 1-window video playback.
GND
Ground end
PoE PORTS
PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to
provide power to the network camera.
2.2.7 NVR42/42N/42-P/42-8P/42-16P Series

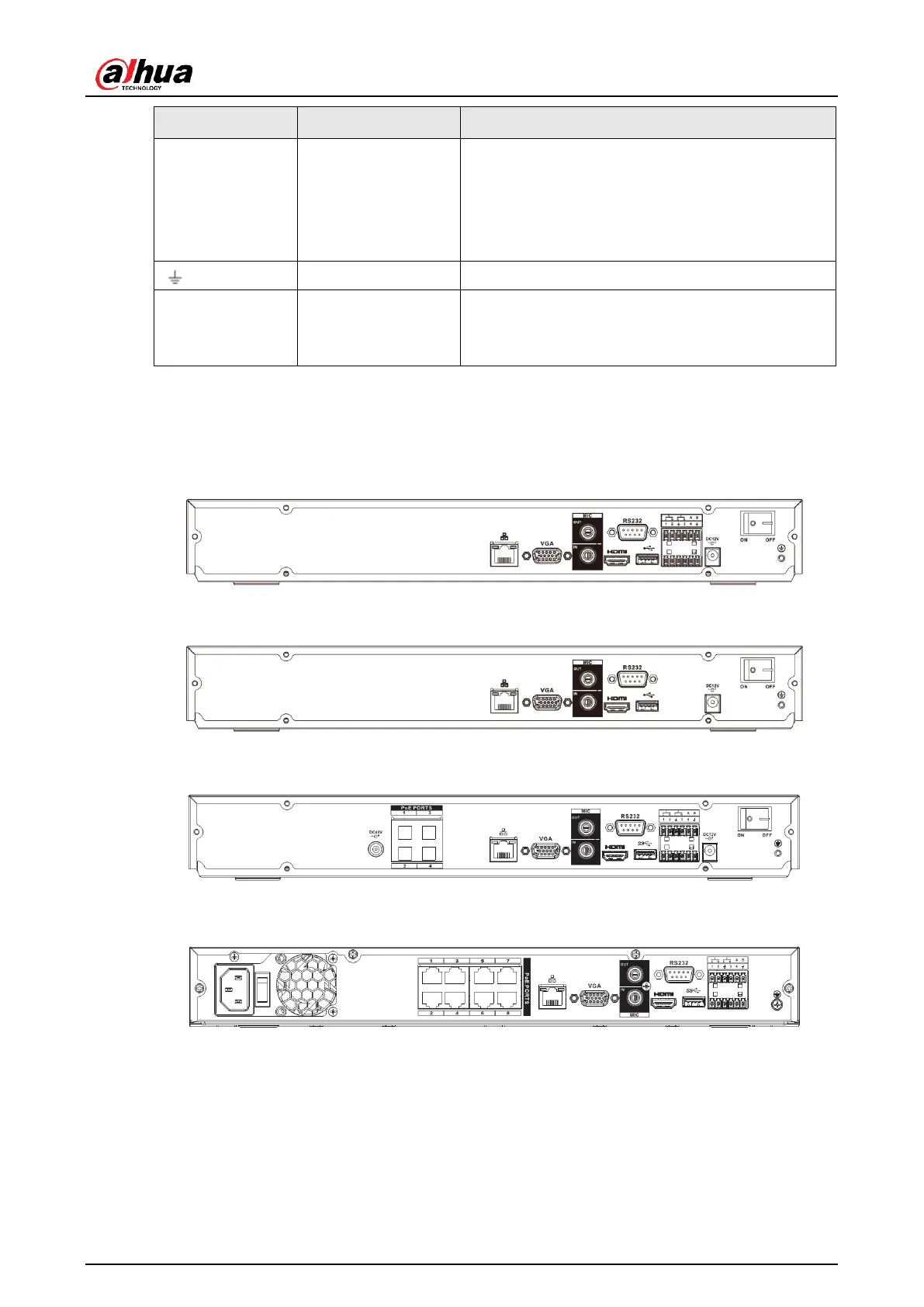

The NVR42 series rear panel is shown as below. See Figure 2-35.
Figure 2-35
The NVR42N series rear panel is shown as below. See Figure 2-36.
Figure 2-36
The NVR42-P series rear panel is shown as below. See Figure 2-37.
Figure 2-37
The NVR42-8P series rear panel is shown as below. See Figure 2-38.
Figure 2-38
The NVR42-16P series rear panel is shown as below. See Figure 2-39.
