Port Name
Connection
Function
HDMI
High Definition
Media Interface
High definition audio and video signal output
port. It transmits uncompressed high definition
video and multiple-channel data to the HDMI
port of the display device. HDMI version is 1.4.
VGA
VGA video output
port
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices
such as microphone, pickup.
MIC OUT
Audio output port
Audio output port. It is to output the analog
audio signal to the devices such as the sound
box.
● Bidirectional talk output.
● Audio output on 1-window video monitor.
● Audio output on 1-window video playback.
GND
Ground end
PoE PORTS
PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to
provide power to the network camera.

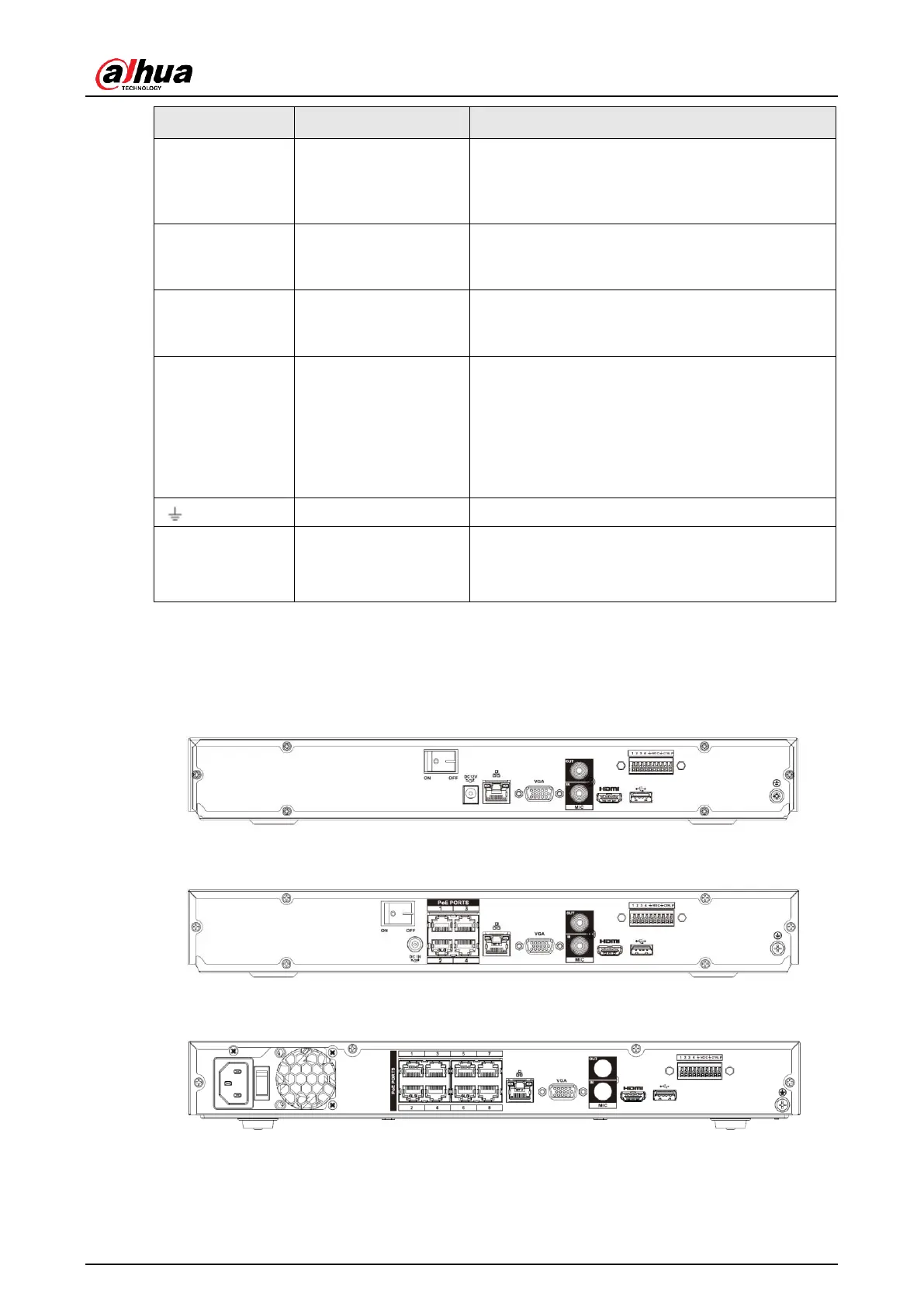

2.2.15 NVR42-4KS2/42-P-4KS2/42-8P-4KS2/42-16P-4KS2 Series
The NVR42-4KS2 series rear panel is shown as below. See Figure 2-62.
Figure 2-62
The NVR42-P-4KS2 series rear panel is shown as below. See Figure 2-63.
Figure 2-63
The NVR42-8P-4KS2 series rear panel is shown as below. See Figure 2-64.
Figure 2-64
The NVR42-16P-4KS2 series rear panel is shown as below. See Figure 2-65.
