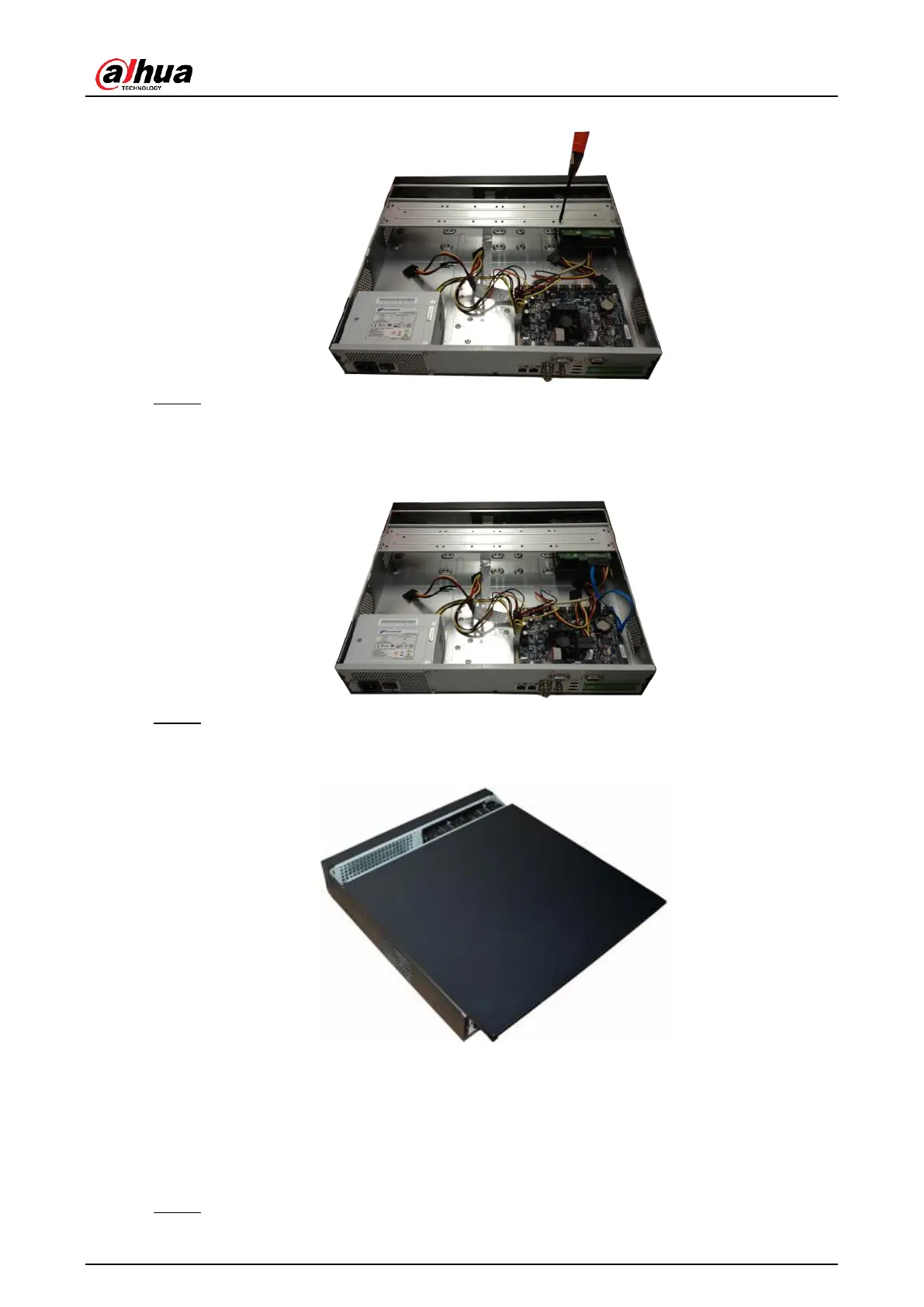

Figure 3-18
Step 3 Connect to the HDD data cable to the main board and the HDD port respectively.
Loosen the power cable of the chassis and connect another end of the power cable
to the HDD port.
Figure 3-19
Step 4 After connect the cable, put the front cover back to the device and then fix screws of
the rear panel.
Figure 3-20
3.4.5
NVR48/48-16P/58-4KS2/58-16P-4KS2/48-4KS2/48-16P-4KS2/52-1
6P-4KS2E Series
Step 1 Use the screwdriver to loose the screws of the rear panel and then remove the front
