User's Manual
70

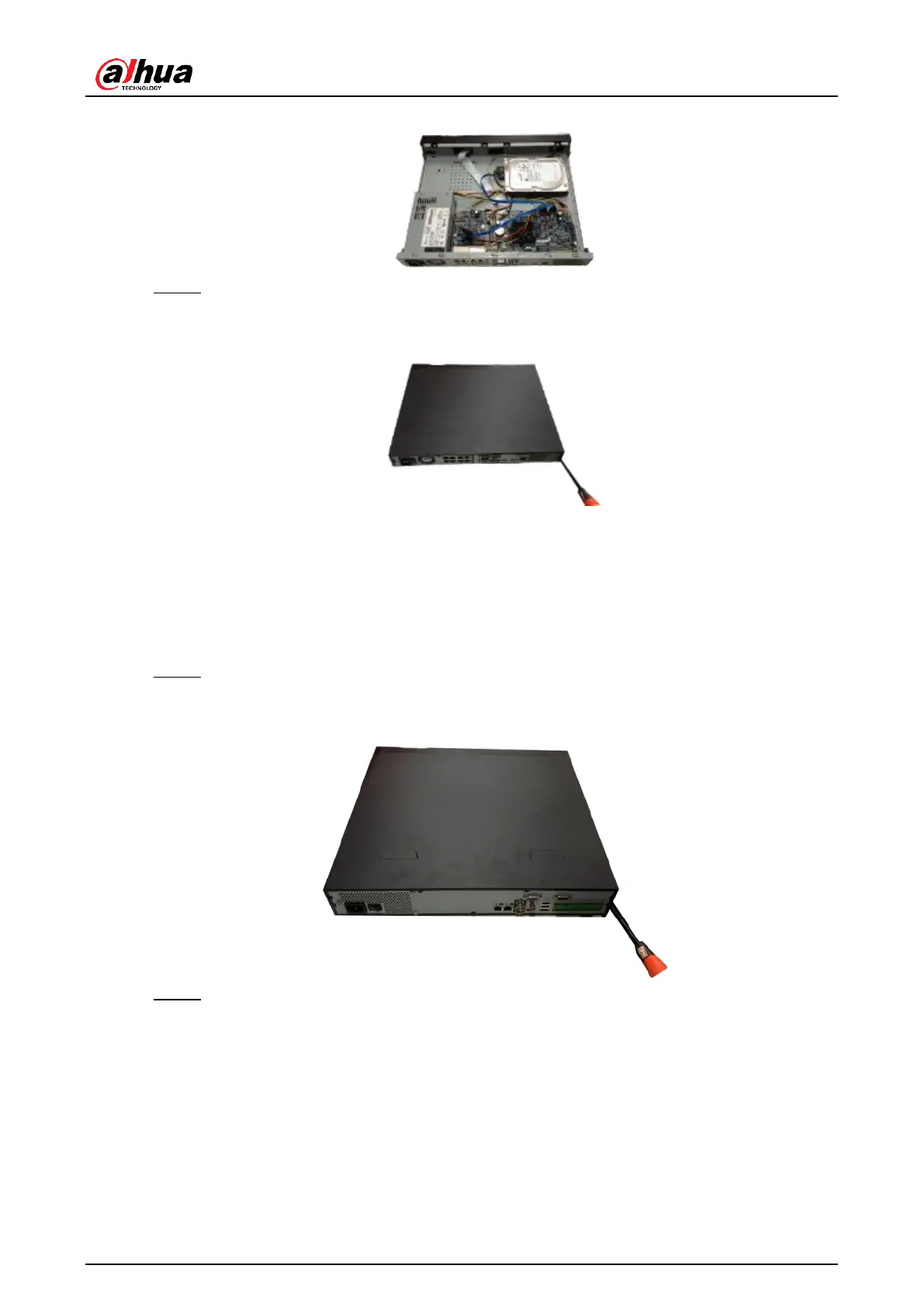

Figure 3-15
Step 5 Put the cover in accordance with the clip and then fix the screws on the rear panel
and side panel.
Figure 3-16
3.4.4
NVR44/44-8P/44-16P/54-4KS2/54-16P-4KS2/44-4KS2/44-16P-4K
S2/5424-24P-4KS2/54-16P-4KS2E Series
Step 1 Use the screwdriver to loose the screws of the rear panel and then remove the front
cover.
Figure 3-17
Step 2 Put the HDD to the HDD bracket in the chassis and then line up the four screws to
the four holes in the HDD. Use the screwdriver to fix the screws firmly to secure HDD
on the HDD bracket.
