2.2.19 NVR21HS-W-4KS2 Series

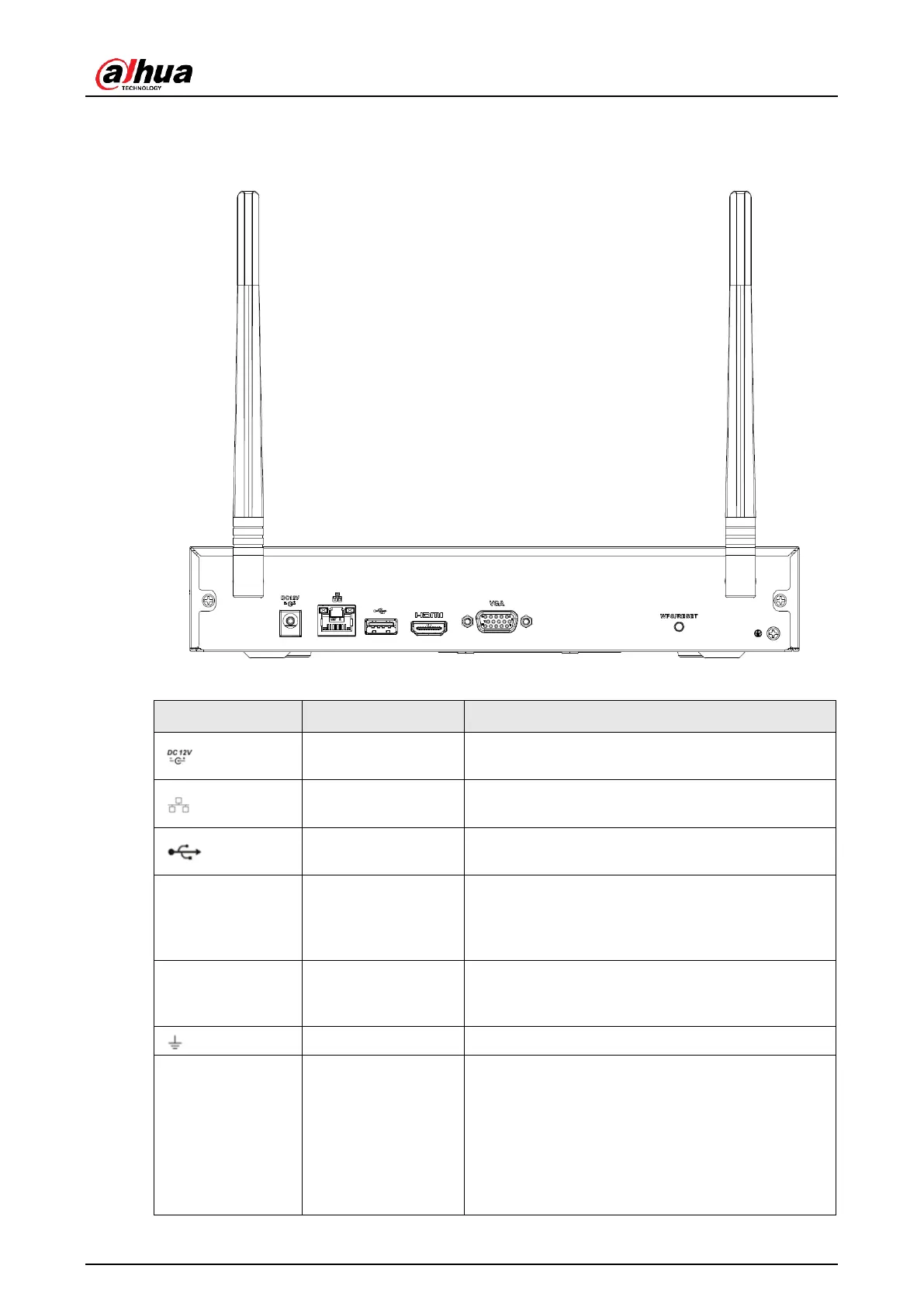

Figure 2-72
Table 2-31
Icon
Name
Function
Power input
socket.
Power socket. Input DC12V/2A.
Network port
10M/100Mbps self-adaptive Ethernet port.
Connect to the network cable.
USB2.0 port
USB2.0 port. Connect to mouse, USB storage
device, and etc.
HDMI
High Definition
Media Interface
High definition audio and video signal output
port. It transmits uncompressed high definition
video and multiple-channel data to the HDMI
port of the display device. HDMI version is 1.4.
VGA
VGA video output
port
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
GND
Ground end
WPS/RESET
Reset/WPS
function
Device Wi-Fi reset and WPS function button:
● Hold down this button for 5 seconds and
above to restore Wi-Fi AP to defaults.
● Press this button for less than 2 seconds,
and then press the WPS button of Wi-Fi
IPC, the device and Wi-Fi IPC can be
connected.
