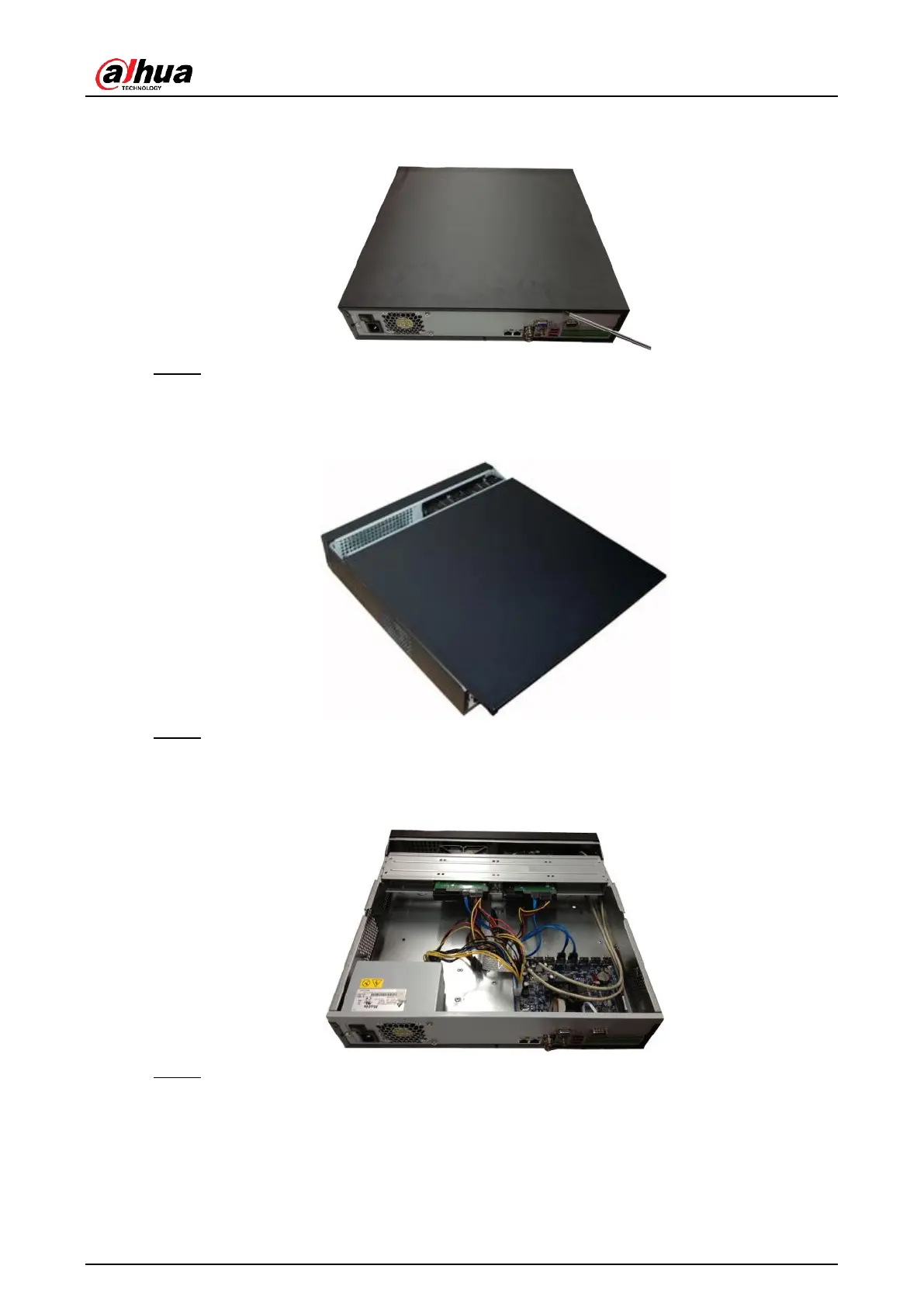

Figure 3-21
Step 2 Put the HDD to the HDD bracket in the chassis and then line up the four screws to
the four holes in the HDD. Use the screwdriver to fix the screws firmly to secure HDD
on the HDD bracket.
Figure 3-22
Step 3 Connect to the HDD data cable to the main board and the HDD port respectively.
Loosen the power cable of the chassis and connect another end of the power cable
to the HDD port.
Figure 3-23
Step 4 After connect the cable, put the front cover back to the device and then fix screws of
the rear panel.
