Indoor Unit SiBE06-708_A
145 Removal Procedure

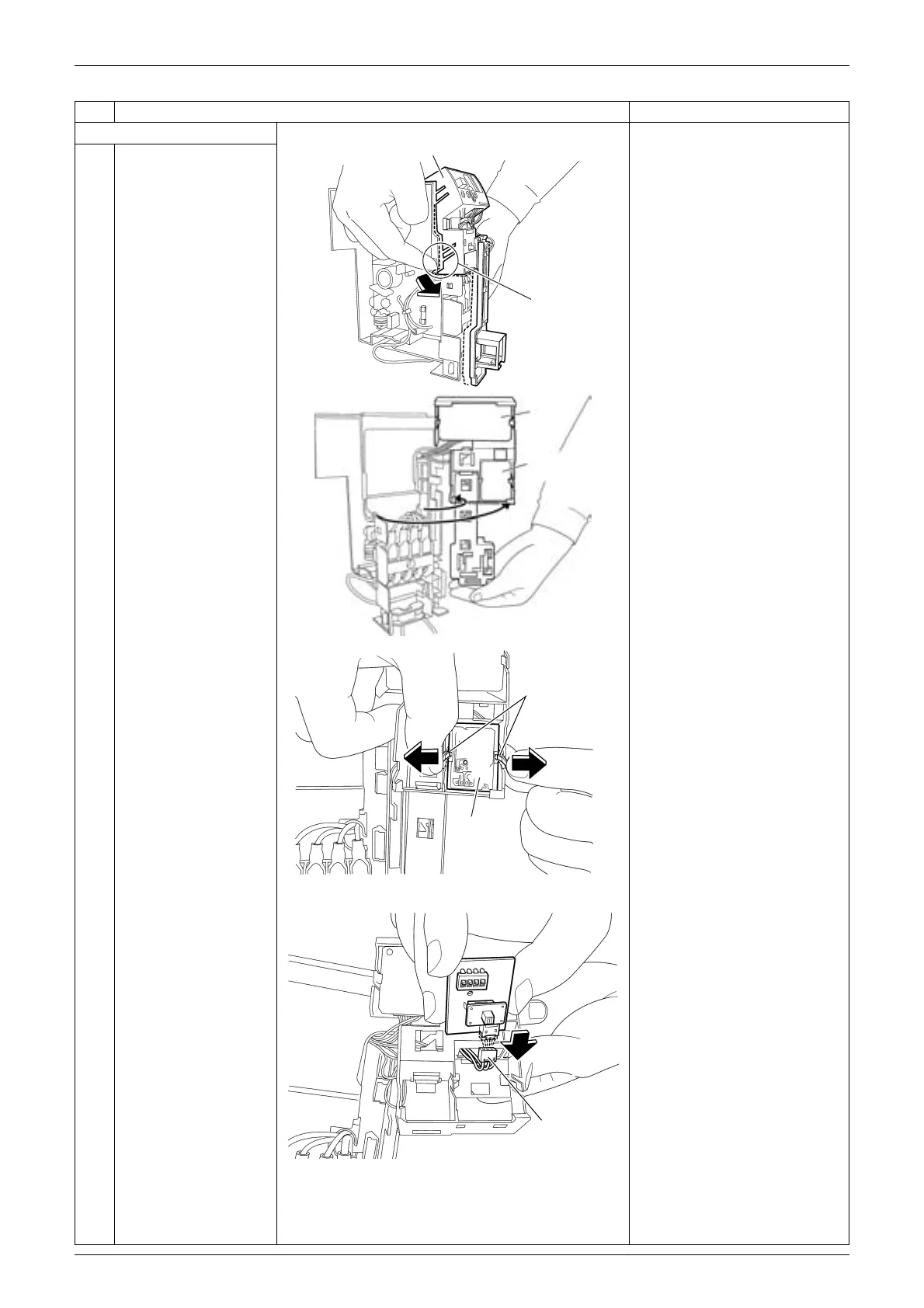

3. Remove the service PCB.
Release the left hook first.
1
Unfasten the 2 hooks
of the lamp cover.
2 Unfasten the 2 hooks
of the service PCB.
3 Disconnect the
connector [S27] and
remove the service
PCB.
Step Procedure Points
Hook
Lamp cover
(R6790)
(R6791)
Service
PCB
Display
PCB
Hooks
Service PCB
(R6792)
(R6793)
[S27]
