SiBE06-708_A Indoor Unit
Removal Procedure 146

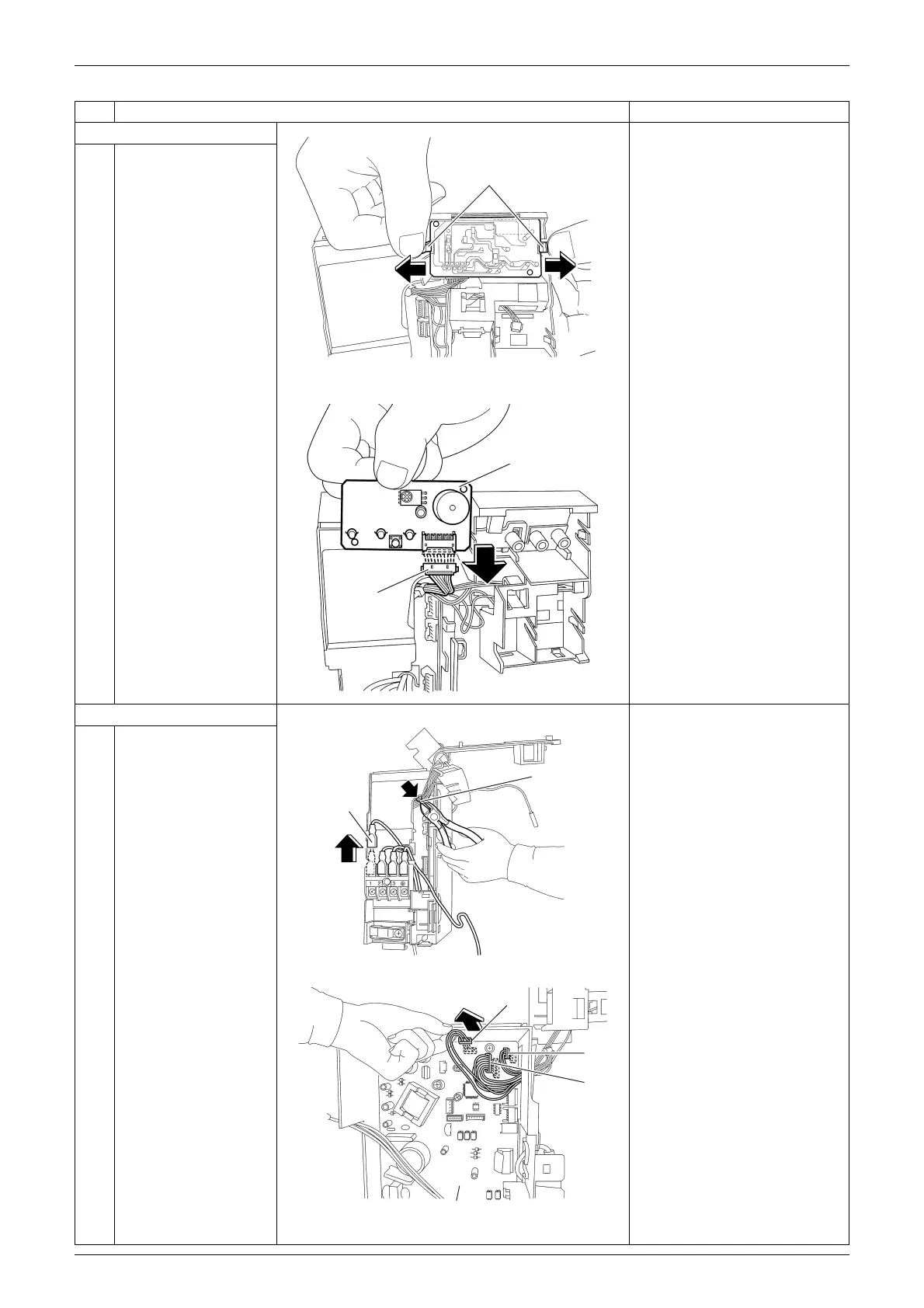

4. Remove the display PCB.
1
Unfasten the 2 hooks
of the display PCB.
2 Disconnect the
connector [S47] and
remove the display
PCB.
5. Remove the control PCB.
1 Cut the clamp and pull
out the all terminals
from the terminal
board.
2 Disconnect the
connectors [S26] [S46]
[S48].
[S26] : service PCB
[S46] : display PCB
[S48] : sensor PCB
Step Procedure Points
Hooks
(R6796)
Display PCB
[S47]
(R6797)
Terminal
Clamp
(R6798)
[S48]
[S26]
[S46]
(R6799)
Control PCB
