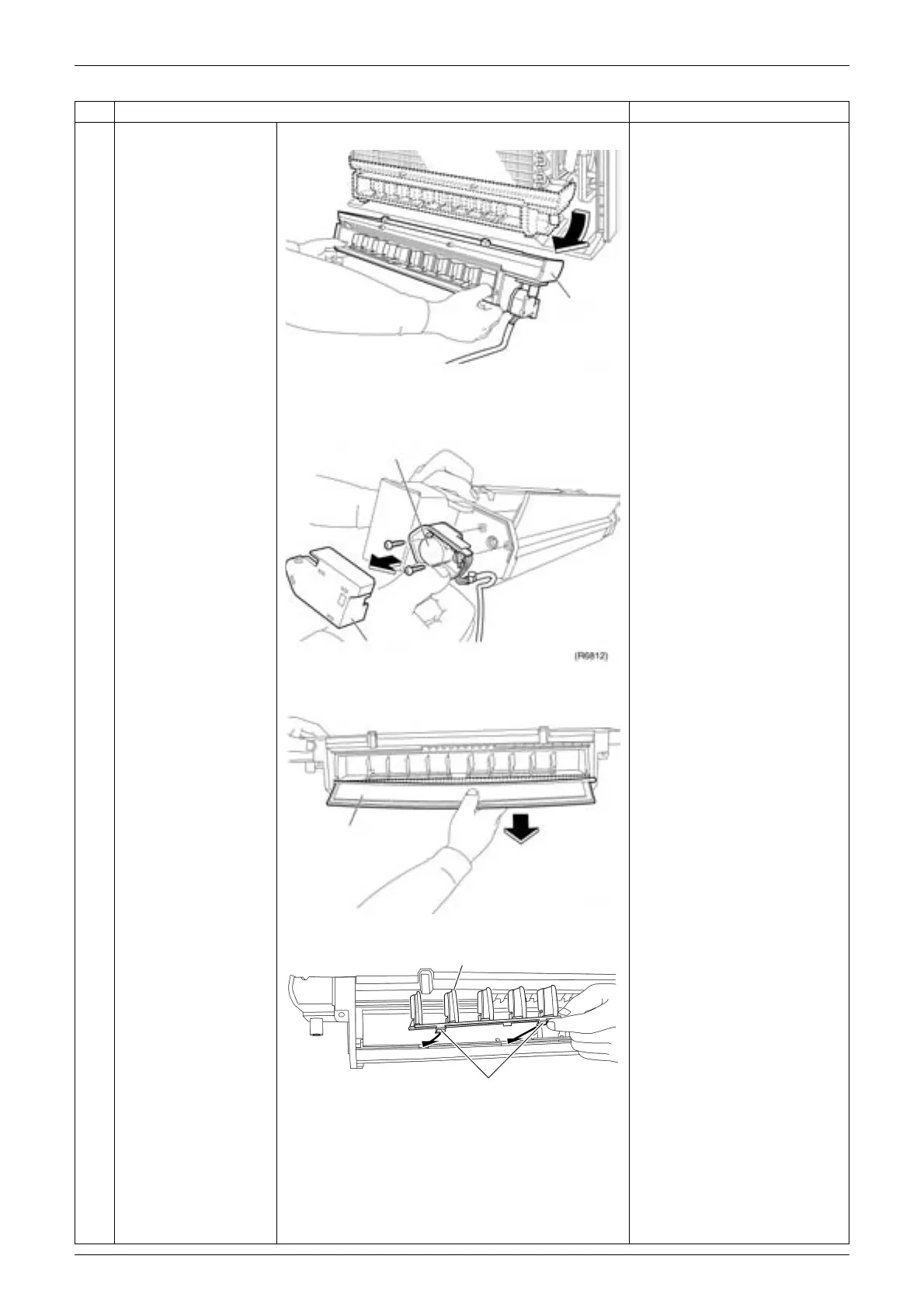

SiBE06-708_A Indoor Unit
Removal Procedure 150
3 Pull out the drain pan
ASSY.
4 Remove the motor
cover.
Remove the 2 screws
to remove the lower air
outlet motor.
5 Remove the damper.
6 Remove the sealing
material from the front
of the vertical blades
ASSY, release the 2
hooks from the drain
pan, and remove the
vertical blades ASSY.
Step Procedure Points
(R6811)
Drain pan
ASSY
Motor cover
Lower air outlet motor
Damper
(R6813)
Hooks
(R6814)
Vertical blades ASSY
