SiBE041102_A Indoor Unit
Removal Procedure 97
3

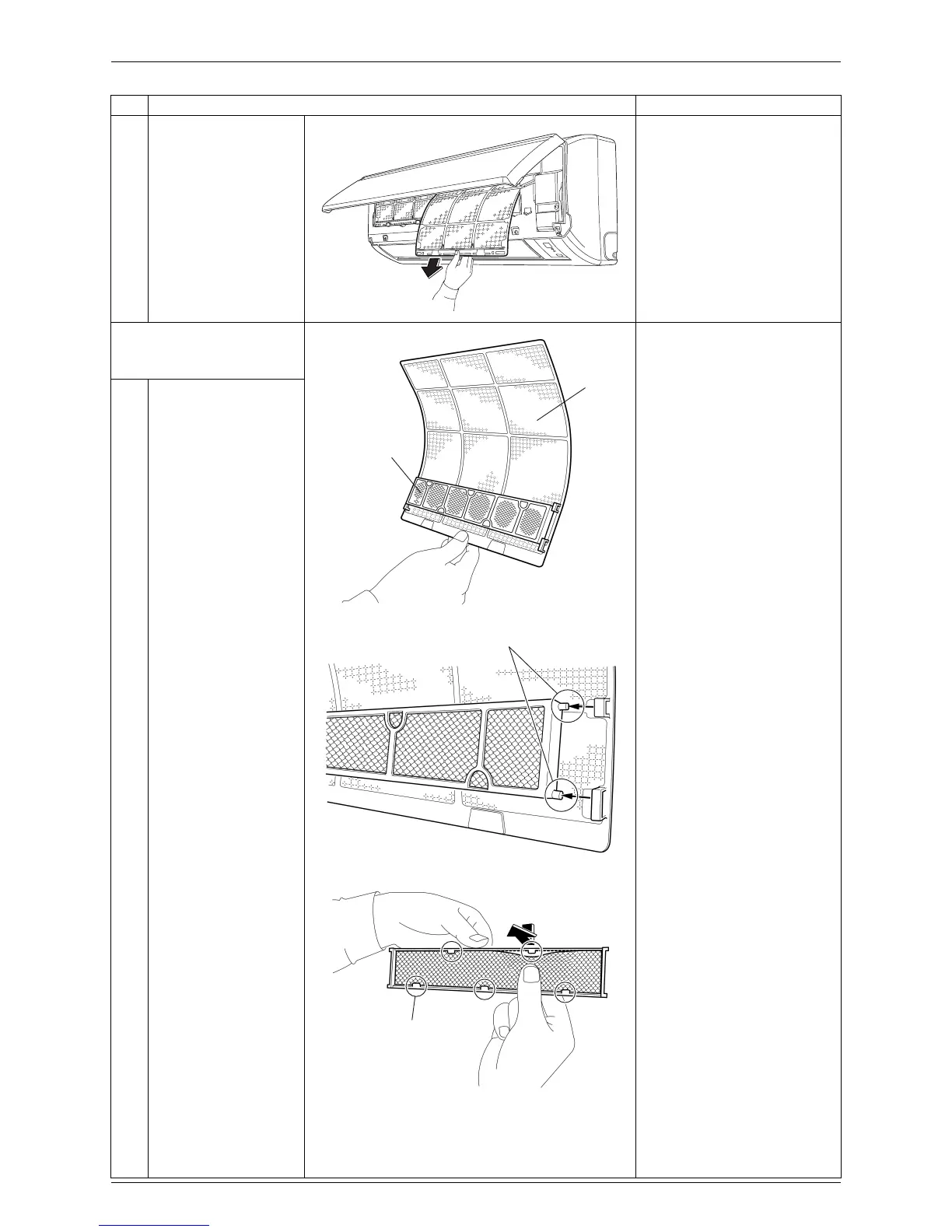

Pull out the air filter
downward and remove
it.
3. Remove the Titanium
apatite photocatalytic
air-purifying filters.
1
The Titanium apatite
photocatalytic air-
purifying filter is
attached to the back of
the air filter.
2
Remove the Titanium
apatite photocatalytic
air-purifying filter frame
by bending the air filter
and unfastening the
projections from the air
filter frame.
3
Remove the Titanium
apatite photocatalytic
air-purifying filter from
its frame (at 5 positions)
by bending it.
To prevent the damage, do
not remove the Titanium
apatite photocatalytic air-
purifying filter from the frame
when cleaning it.
The Titanium apatite
photocatalytic air-purifying
filter is not marked for
difference between the right
and left sides.
Step Procedure Points
(R11620)
Air filter
(R8025)
Titanium apatite
photocatalytic
air-purifying filter
Projection
(R14599)
Hook
(R8027)
