Daikin FTXN35KEV1B Service Manual

SiBE041102_A Wiring Diagrams
Appendix 145

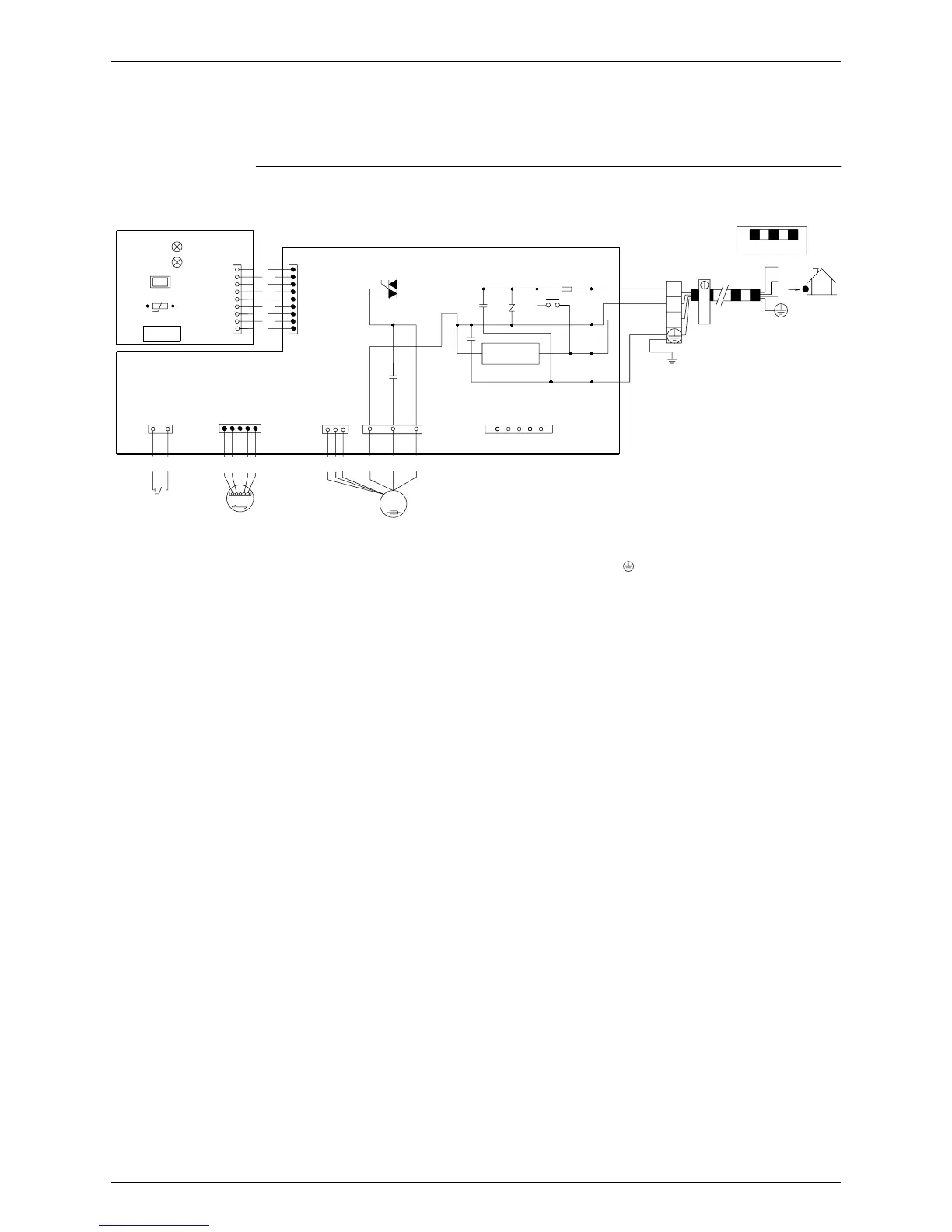

2. Wiring Diagrams
2.1 Indoor Unit
FTXN25/35KEV1B
PCB 2
LED1 H1P
FIELD WIRING.
S26
S27
PCB 1
LED2 H2P
1
19
V1TR
X1M
BLK
2
F1U H1
S1W
BLK
1
3.15A
3
t˚
C102
BLK
2
V1
OUTDOOR
MR10
R1T
H2
BLK
3
1
BLK
BLK
BLK
BLK
BLK
9
C103
CAUTION
H3
FG
C70
631
1
5
1
2
31
51
S21
S7
S1
S6
S32
RED
BLK
WHT
BLK BLK
PUR
GRY
BLU
BLK BLK BLK BLK BLK
t˚
M
~
t˚
R2T
M
150˚C
M1S
M1F
NOTE THAT OPERATION WILL
RESTART AUTOMATICALLY IF
THE MAIN POWER SUPPLY IS
TURNED OFF AND THEN BACK
ON AGAIN.
V1
C70, C102,
C103
V1TR
MR10
: VARISTOR
: CAPASITOR
: TRIAC
: MAGNETIC
RELAY
FG
F1U
H1~H3
H1P~H2P
M1F
M1S
PCB1~PCB2
R1T, R2T
S1~S32
S1W
X1M
: FRAME GROUND
: FUSE
: HARNESS
: PILOT LAMP
: FAN MOTOR
: SWING MOTOR
: PRINTED CIRCUIT BOARD
: THERMISTOR
: CONNECTOR
: OPERATION SWITCH
: TERMINAL STRIP
: PROTECTIVE EARTH
TRANSMISSION
CIRCUIT
SIGNAL
RECEIVER
3D070952A
