Indoor Unit SiBE041102_A

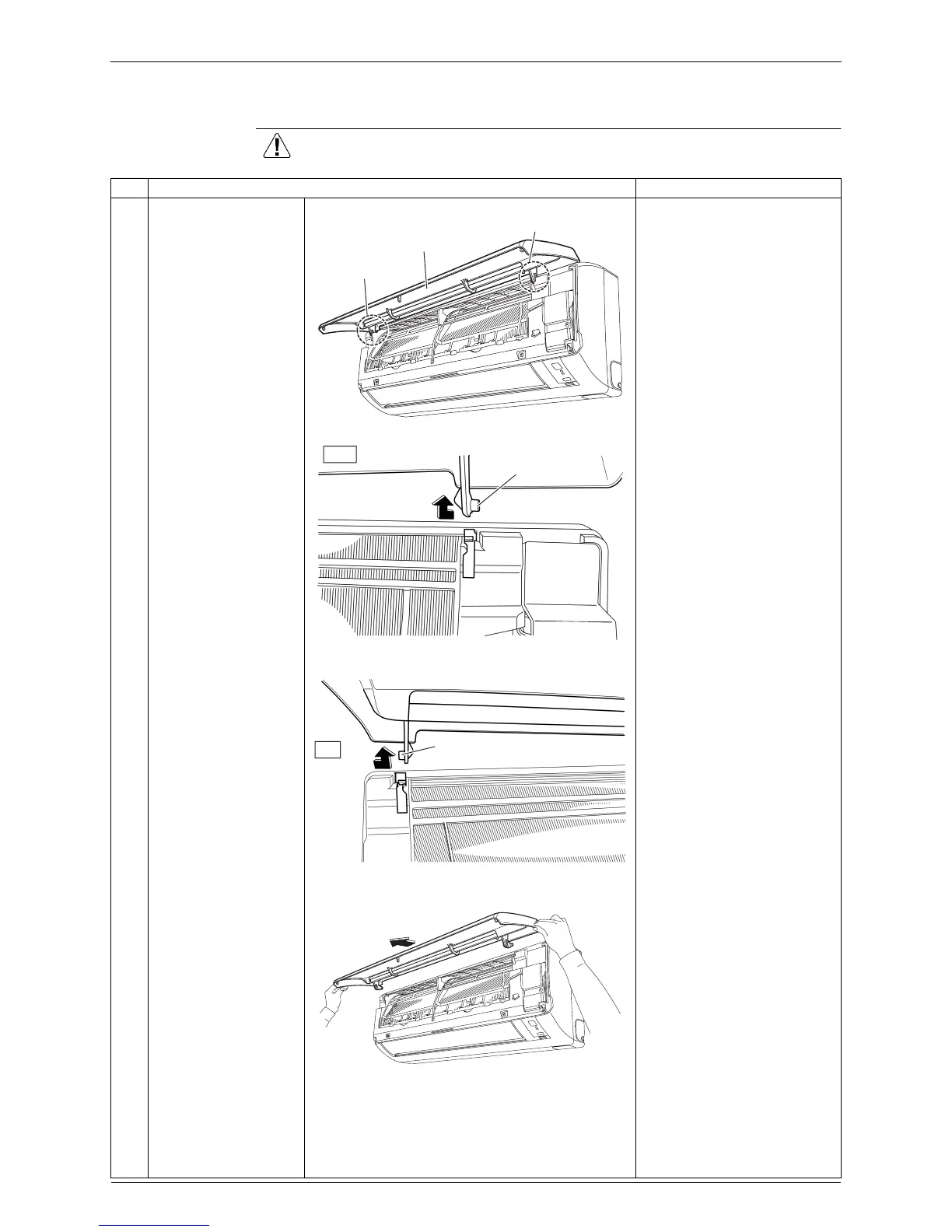

100 Removal Procedure
1.3 Removal of Front Panel
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1
Open the front panel
over the position where
it stops.
2
Release the right rotary
shaft.
The rotary shaft on each
side can be released easily
by sliding each shaft
inwards.
3
Release the left rotary
shaft.
4
Remove the front panel.
When reassembling the
front panel, fit the right and
left rotary shafts one by one
into the grooves and fully
push them in position.
Left side
Front panel
Right side
(R11627)
Right
Rotary shaft
(R11628)
Left
Rotary shaft
(R11629)
(R11630)
