Outdoor Unit SiBE041102_A
130 Removal Procedure
2.4 Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points

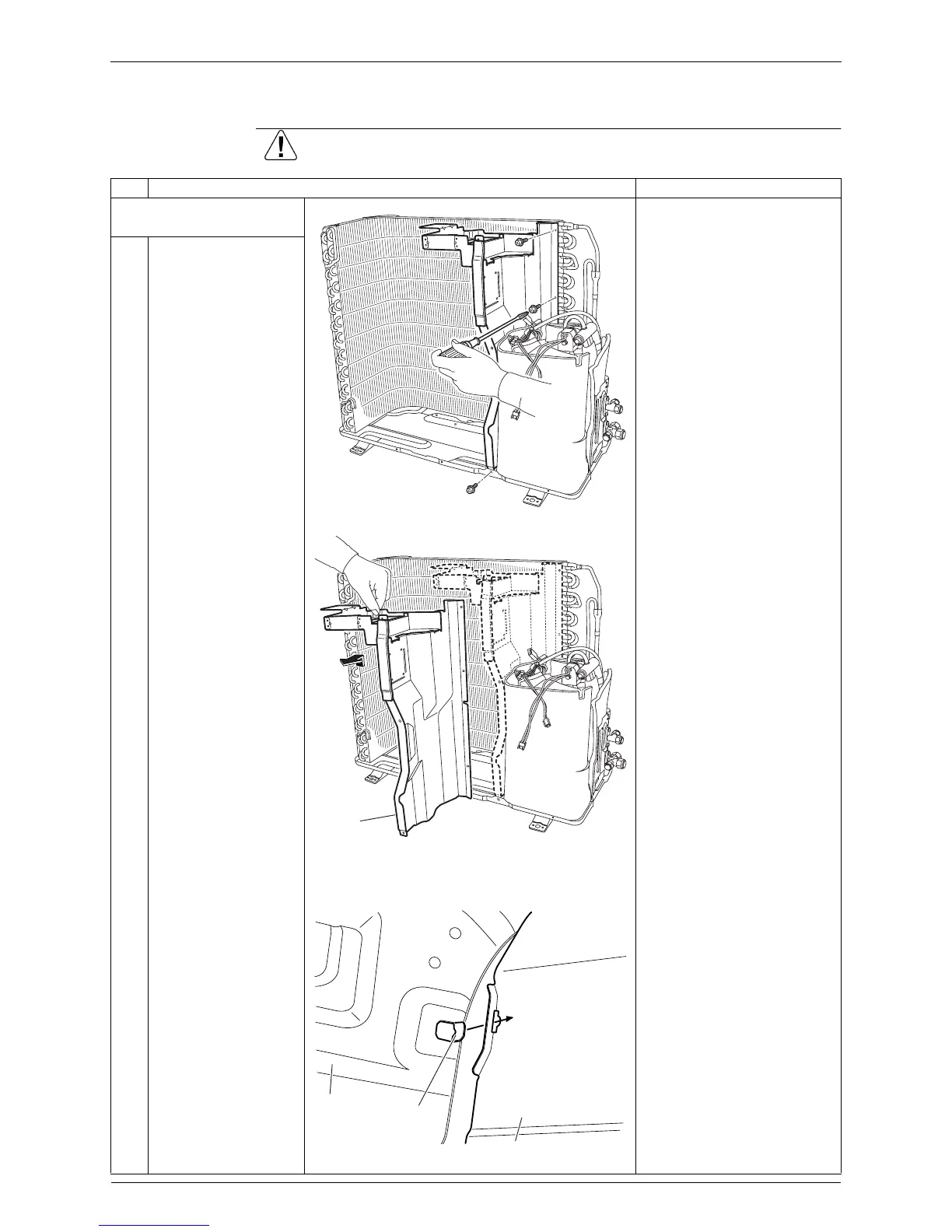

1. Remove the partition
plate.
1
Remove the 3 screws.
2
Remove the partition
plate.
When reassembling, fit the
lower hook into the bottom
frame.
(R14521)
(R14522)
Partition
plate
Hook
Bottom frame
Partition plate
(R14523)
