Daikin FTXN35KEV1B Service Manual

Indoor Unit SiBE041102_A
98 Removal Procedure

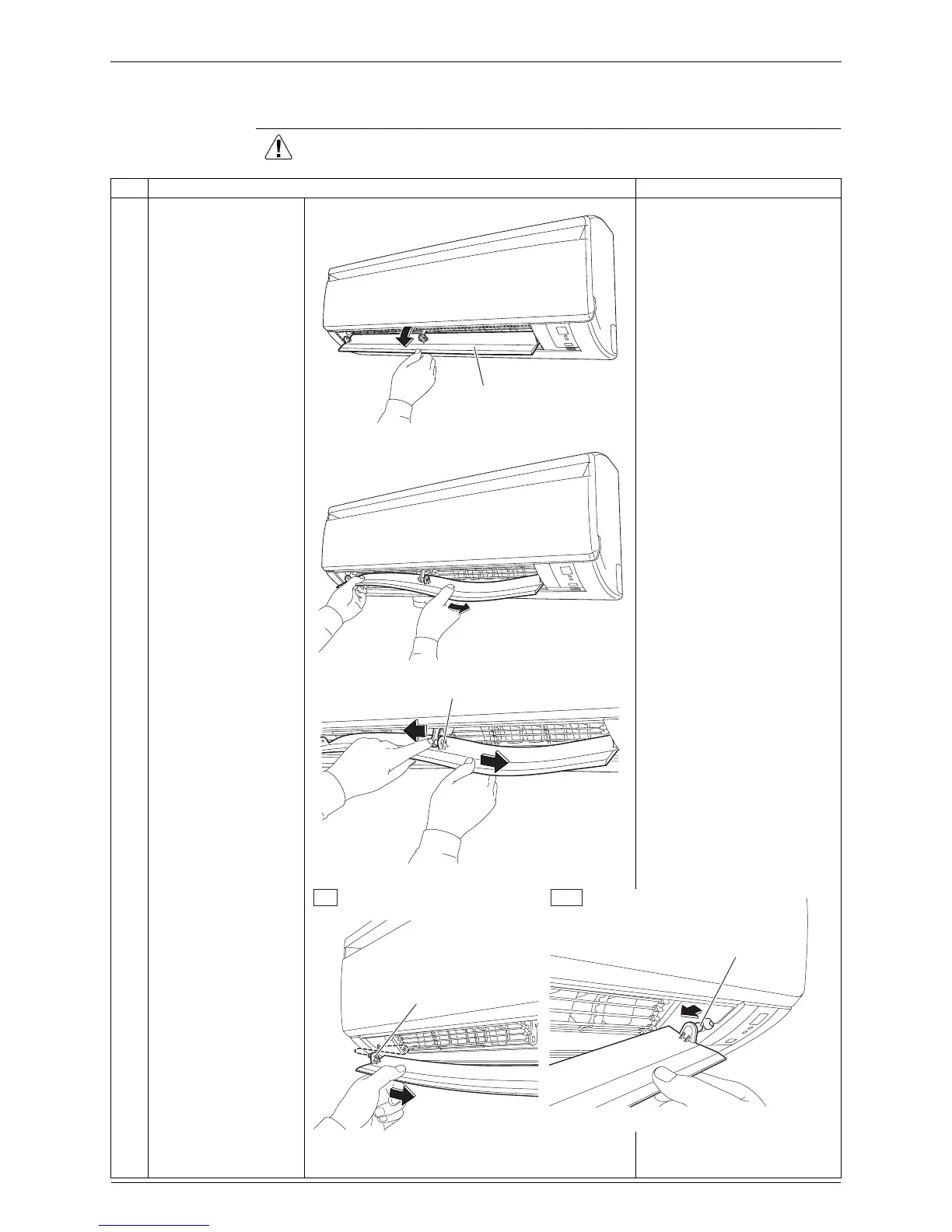

1.2 Removal of Horizontal Blade
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1
Open the horizontal
blade.
2
Unfasten the center
shaft while bending the
horizontal blade
slightly.

The center shaft can be
released easily by bending
the blade.
Cautions for reassembling
1. Since the key pattern hook
is provided, rotate the
horizontal blade and fit it to
the right shaft first.
2. Fit the horizontal blade to
the center and left shafts.
3
Unfasten the left shaft
of the horizontal blade.
4
Unfasten the right shaft
of the horizontal blade.
(R11622)
Horizontal blade
(R11623)
(R11624)
Shaft
(R11625)
Key pattern hook
Left
Right
Shaft
