Daikin FTXN35KEV1B Service Manual

SiBE041102_A Indoor Unit
Removal Procedure 107

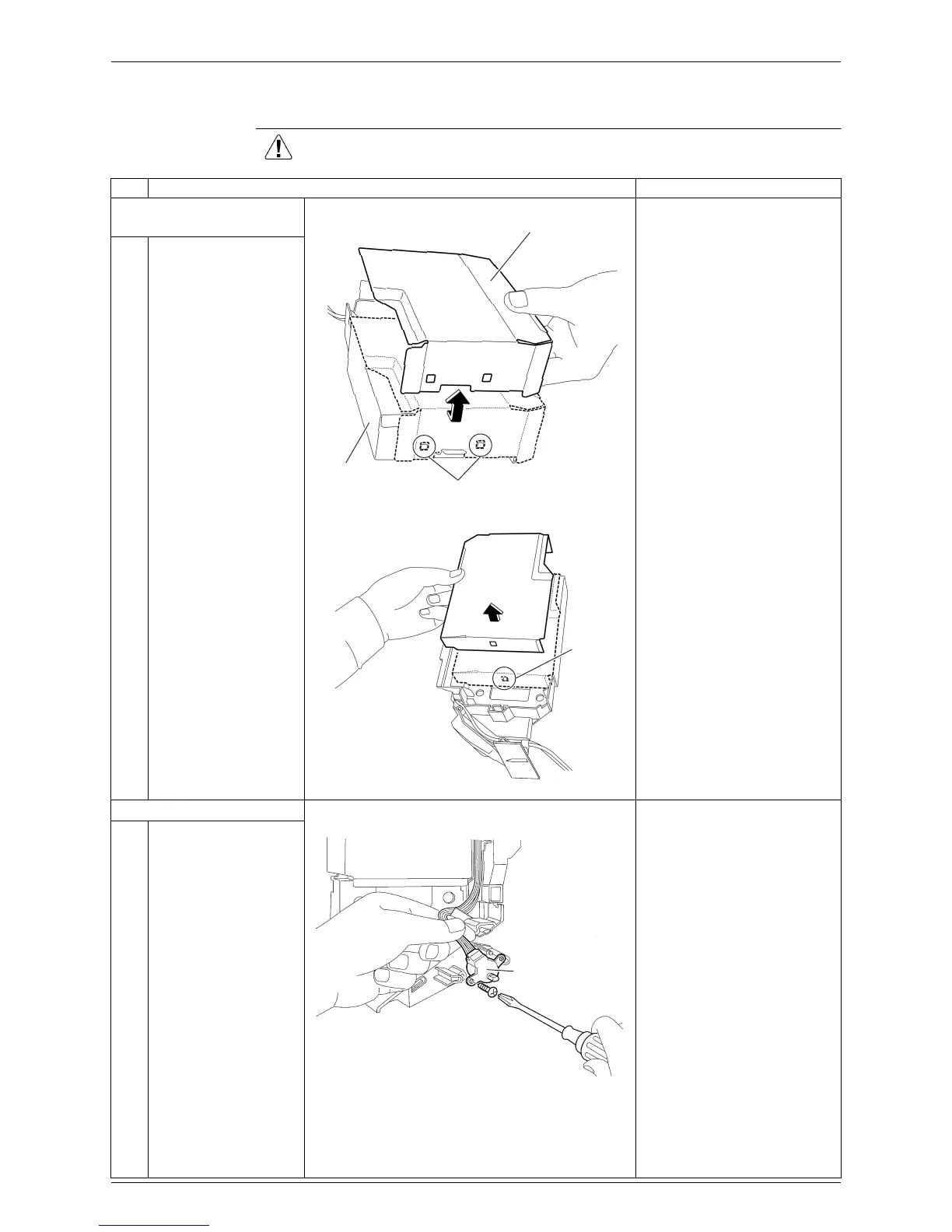

1.6 Removal of Swing Motor / PCBs
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the shield plate
(2).
Preparation

Remove the electrical box
according to the “Removal
of Electrical Box / vertical
Blades”.
1
Unfasten the hooks at
the upper 2 positions of
the shield plate (2).
2
Unfasten the hook at
the lower position,
and remove the shield
plate (2).
2. Remove the swing motor.
1
Remove the screw of
the swing motor.
(R14603)
Hook
Shield plate (2)
Electrical box
Hook
(R12059)
Swing motor
(R11650)
