Daikin FTXN35KEV1B Service Manual

Outdoor Unit SiBE041102_A
120 Removal Procedure

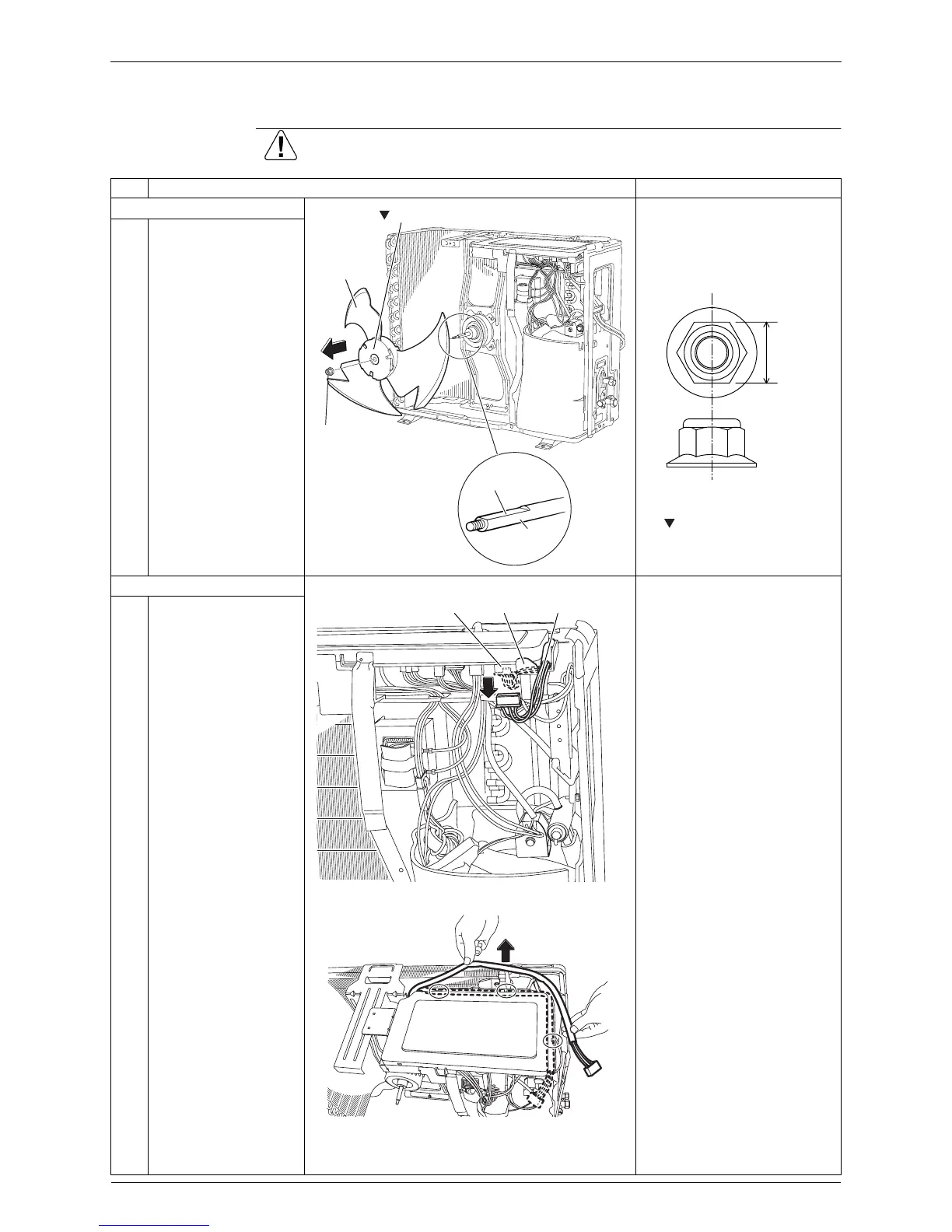

2.2 Removal of Outdoor Fan / Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1. Remove the outdoor fan. Preparation

Remove the panels
according to the “Removal
of Outer Panels”.

Nut size: M6
1
2
Remove the nut of the
outdoor fan.
Remove the outdoor
fan.

When reassembling, align
mark of the outdoor fan
with D-cut section of the
motor shaft.
2. Remove the fan motor. [S70]: fan motor

When reassembling, set the
fan motor lead wire into the
hook.
1
Disconnect the
connector [S70] and
release the fan motor
lead wire from the hook.
2
Release the fan motor
lead wire from the 3
hooks.

When reassembling set the
fan motor lead wire into the
3 hooks.
(R14490)
Shaft
D-cut
Nut
Outdoor fan
Mark
10 mm
(R12236)
[S70] Hook
Fan motor
lead wire
(R14491)
(R14492)
