Daikin FTXN35KEV1B Service Manual

SiBE041102_A Outdoor Unit
Removal Procedure 119
2

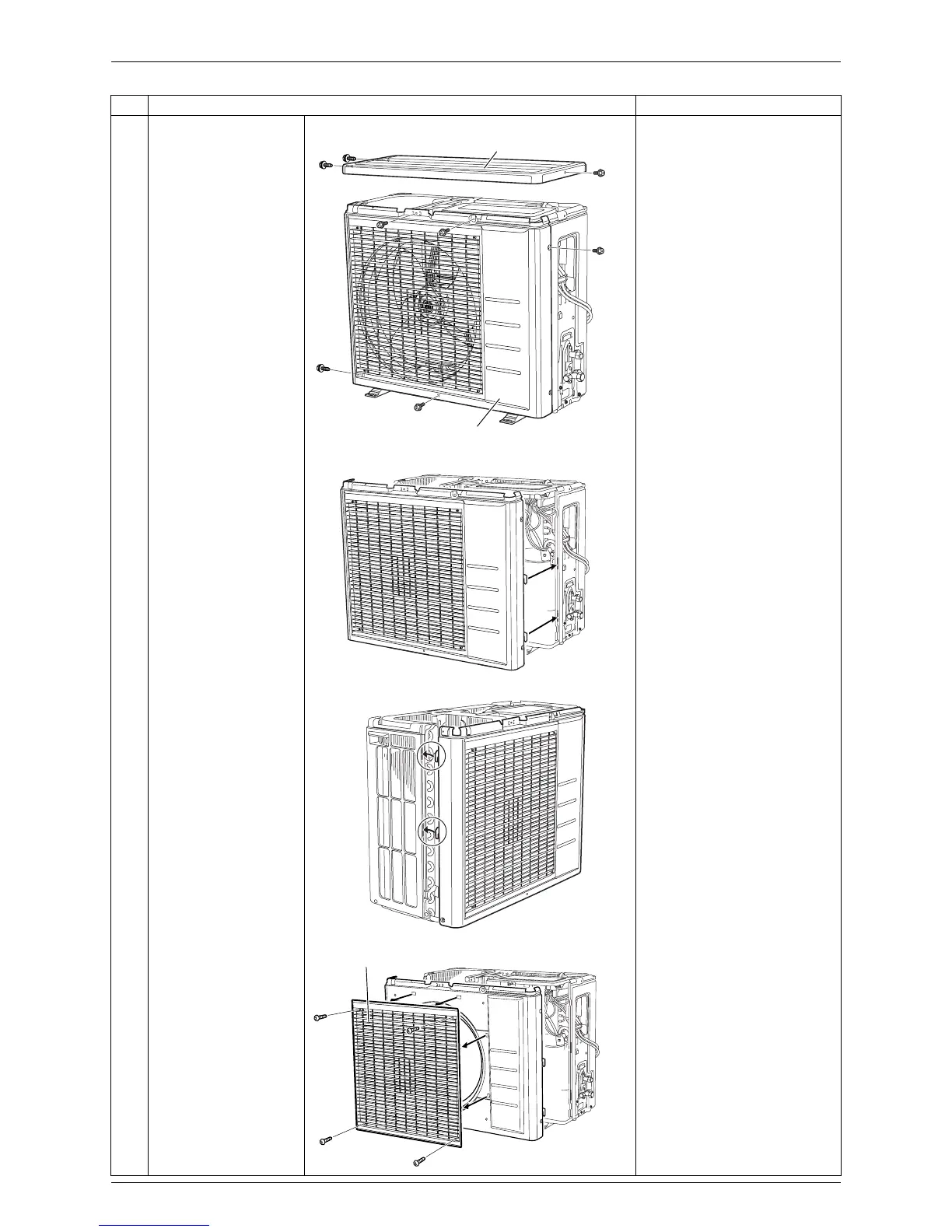

Remove the 3 screws
(right: 1 screw, left: 2
screws) and remove the
top panel.
3
Remove the 5 screws
of the front panel.
4
Unfasten the right side
hooks.
5
Unfasten the left side
hooks and remove the
front panel.
6
7
Remove the 4 screws
of the discharge grille.
Unfasten the 6 hooks
and remove the
discharge grille.
Step
Procedure Points
Top panel
Front panel
(R14486)
(R14487)
INVERTER
(R14488)
(R14489)
Discharge grille
