8 Printed Circuit Board Connector Wiring Diagram
2. Outdoor Unit
Connectors and
Other Parts

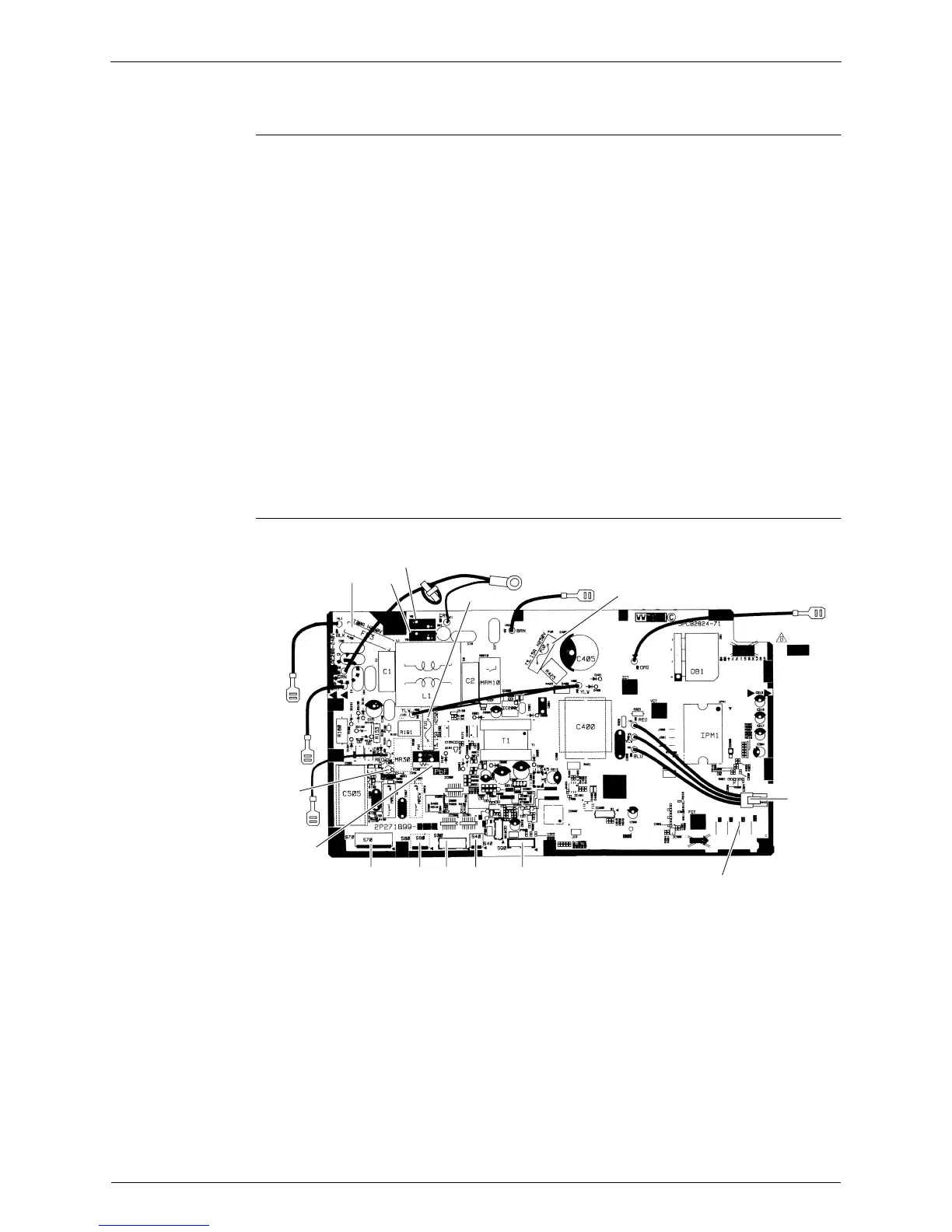

PCB Detail
1) S20 Connector for electronic expansion valve coil
2) S40 Connector for overload protector
3) S70 Connector for fan motor
4) S80 Connector for four way valve coil
5) S90 Connector for thermistors
(outdoor temperature, outdoor heat exchanger, discharge pipe)
6) HL1, HN1, S Connector for terminal board
7) E1, E2 Terminal for earth
8) HR1, HR2 Connector for reactor
9) U, V, W Connector for compressor
10)LED A LED for service monitor (green)
11)FU1, FU2 Fuse (3.15 A, 250 V)
12)FU3 Fuse (20 A, 250 V)
13)V2, V3, V150 Varistor
14)J5 Jumper for improvement of defrost performance
∗
Refer to page 140 for detail.
FU3
V3
V2
FU1
E1, E2
HR1
FU2
HR2
U, V, W
J5
S90S40S20S80
S70
V150
S
LED A
HN1
HL1
2P271899-1
