SiBE041102_A Outdoor Unit
Removal Procedure 121
3

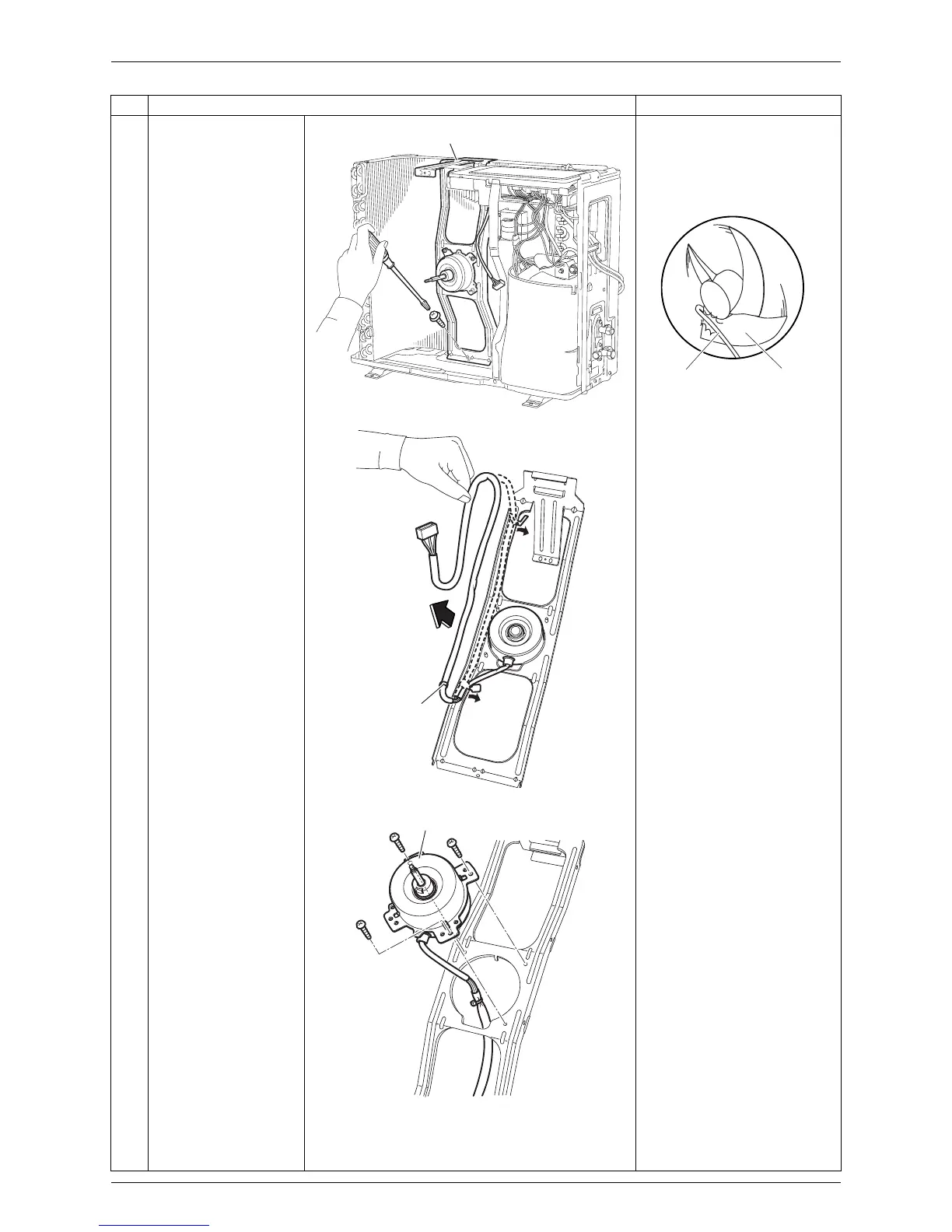

Remove the screw and
remove the fan motor
fixing frame.
When reassembling, put the
fan motor lead wire through
the back of the fan motor so
as not to be entangled with
the outdoor fan.
4
Release the fan motor
lead wire from the
hooks.
When reassembling, set the
clamped position under the
lower hook of the fan motor
fixing flame.
5
Remove the 3 screws
and remove the fan
motor.
Step
Procedure Points
Fan motor fixing frame
(R14493)
(R3249)
Lead wire Outdoor fan
(R14494)
Clamp
(R14495)
Fan motor
To Next Page
