Daikin FTXN35KEV1B Service Manual

Outdoor Unit SiBE041102_A
124 Removal Procedure
9

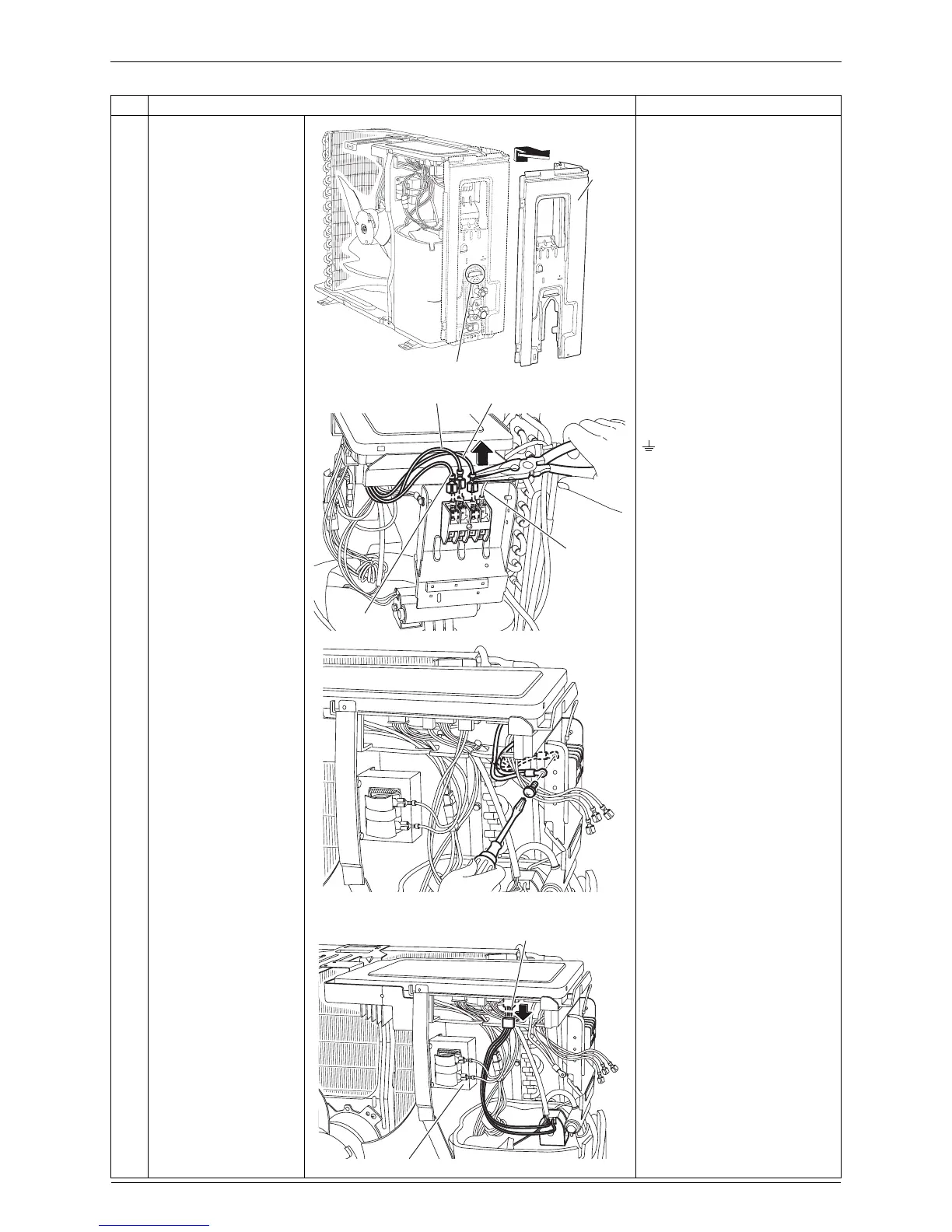

Unfasten the hook, and
remove the right side
panel.
10
Pull out the terminals
from the terminal board
except the earth.
1 : black, upper
2 : white, lower
3 : red, upper
: green, lower
11
Remove the screw and
release the earth.
12
Disconnect the
connector [S80].
[S80]: four way valve coil

The harness of the four way
valve coil and the harness of
the reactor cross each other.
Step
Procedure Points
(R14502)
Right
side
panel
Hook
Red
Earth
White
(R14503)
Black
(R14504)
(R14505)
[S80]
Reactor
