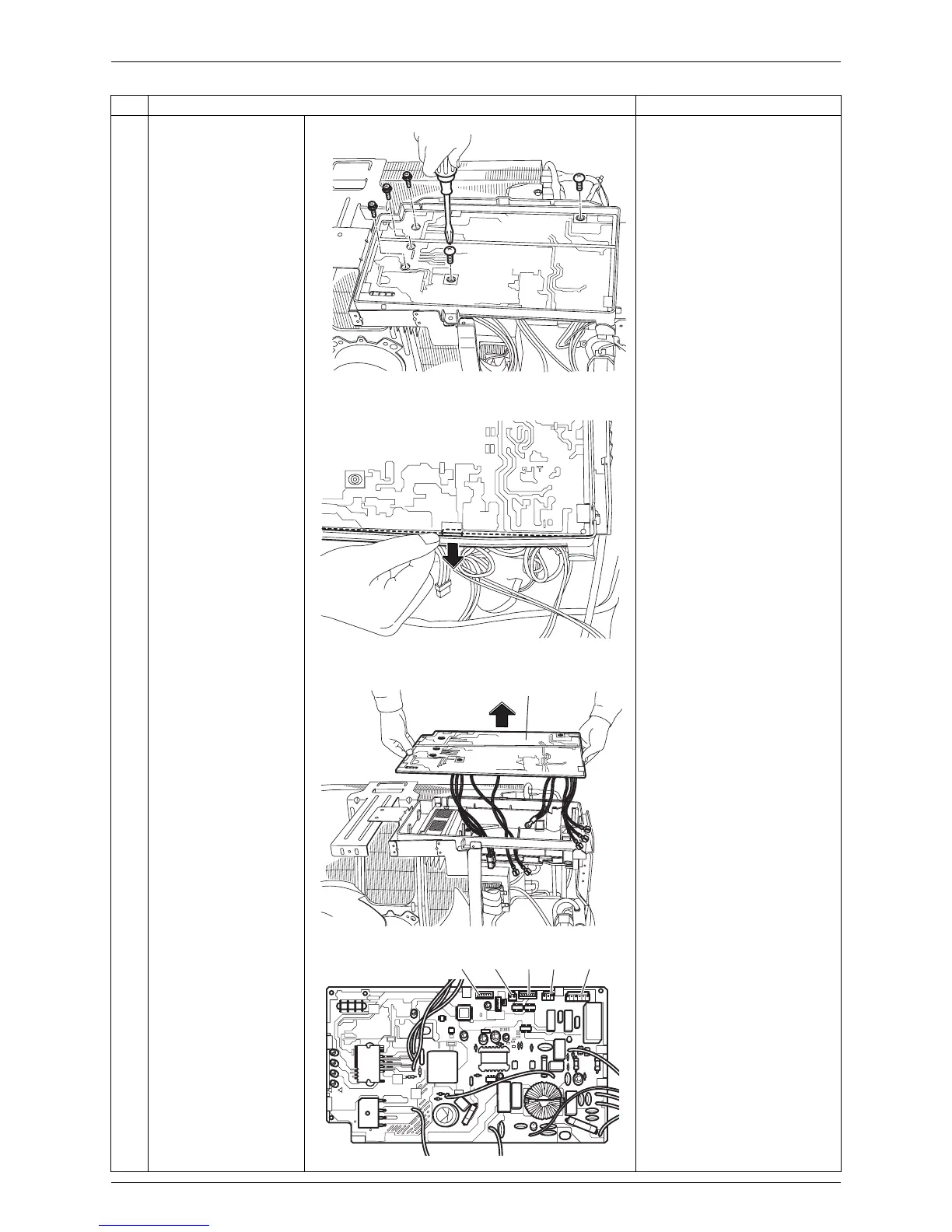

SiBE041102_A Outdoor Unit
Removal Procedure 127
20
Remove the 5 screws.
21
Unfasten the hook.
22
Remove the PCB.
Refer to page 8 for detail.
[S20]: electronic expansion
valve coil
[S40]: overload protector
[S70]: fan motor
[S80]: four way valve coil
[S90]: thermistors
Step
Procedure Points
(R14512)
(R14513)
PCB
(R14514)
[S90] [S40] [S20] [S80] [S70]
(R14515)
