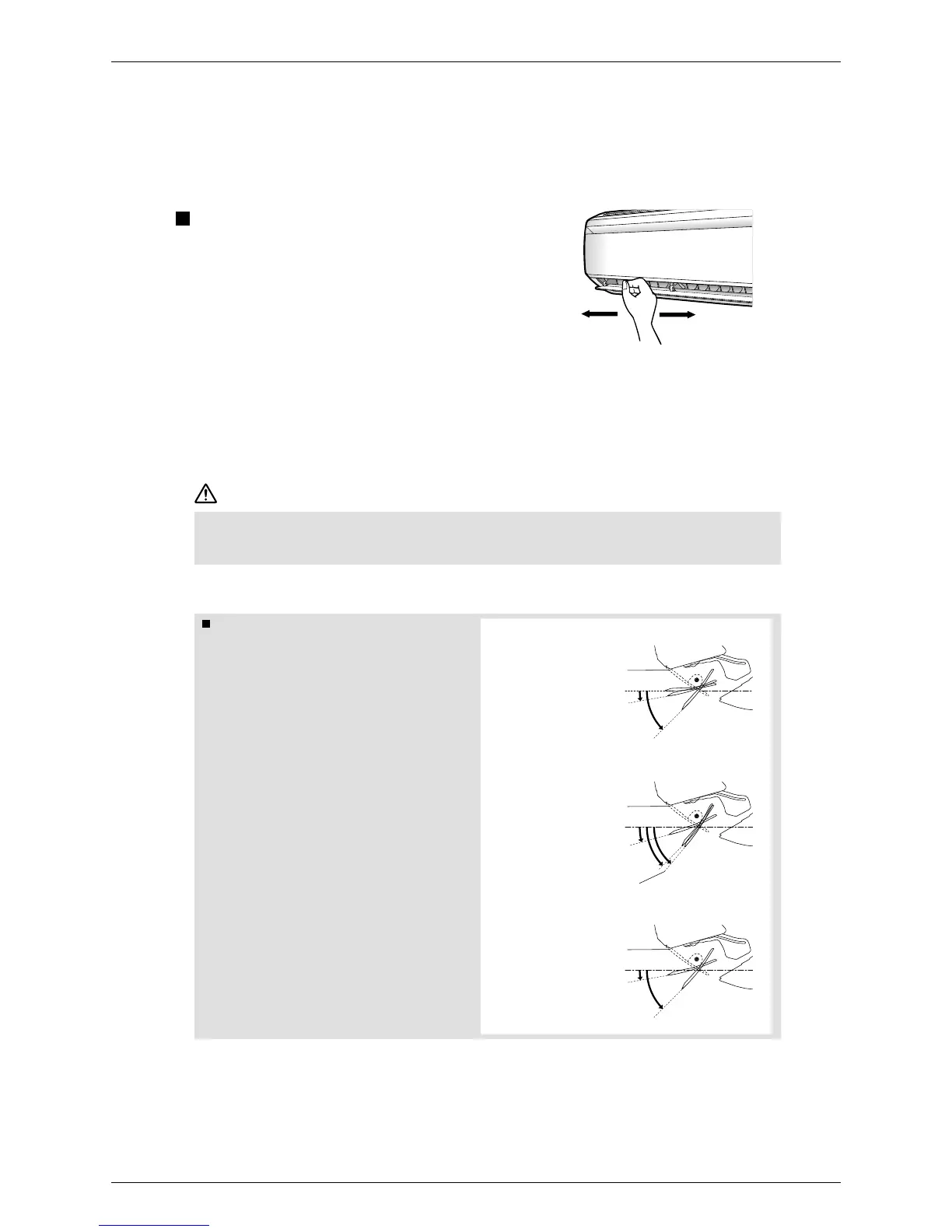

Adjusting the Airflow Direction
To adjust the louvers (vertical
blades)
Hold the knob and move the louvers.
(You will find a knob on the left-side and the right-side
blades.)
• When the unit is installed in the corner of a room, the
direction of the louvers should be facing away from the
wall.
If they face the wall, the wall will block off the wind,
causing the cooling (or heating) efficiency to drop.
• Always use a remote controller to adjust the angles of the flap. If you attempt to move the flap
and louvers forcibly with hand when they are swinging, the mechanism may be broken.
• Be careful when adjusting the louvers. Inside the air outlet, a fan is rotating at a high speed.
Notes on the angles of the flap
• The flap swinging range depends on
the operation. (See the figure.)
• If the air conditioner is operated in
HEAT or DRY operation with the flap
kept stopped in the downward
direction, the flap will automatically
start operating in approximately an
hour in order to prevent dew
condensation.
In DRY operation or COOL operation
In HEAT operation
In FAN operation
COMFORT AIRFLOW
COMFORT AIRFLOW
