3 Secure installation of intelligent Touch Manager
There are the following three ways to install the intelligent Touch Manager.
• Wall mounting: Fix the intelligent Touch Manager to the metal plate which is attached to
the wall.
• Flush wall mounting: Embed the back of the intelligent Touch Manager into the wall
using the frame bracket and angle brackets.
• Direct mounting to control enclosure: Fix the intelligent Touch Manager directly to the
control enclosure using screws only (with no brackets).

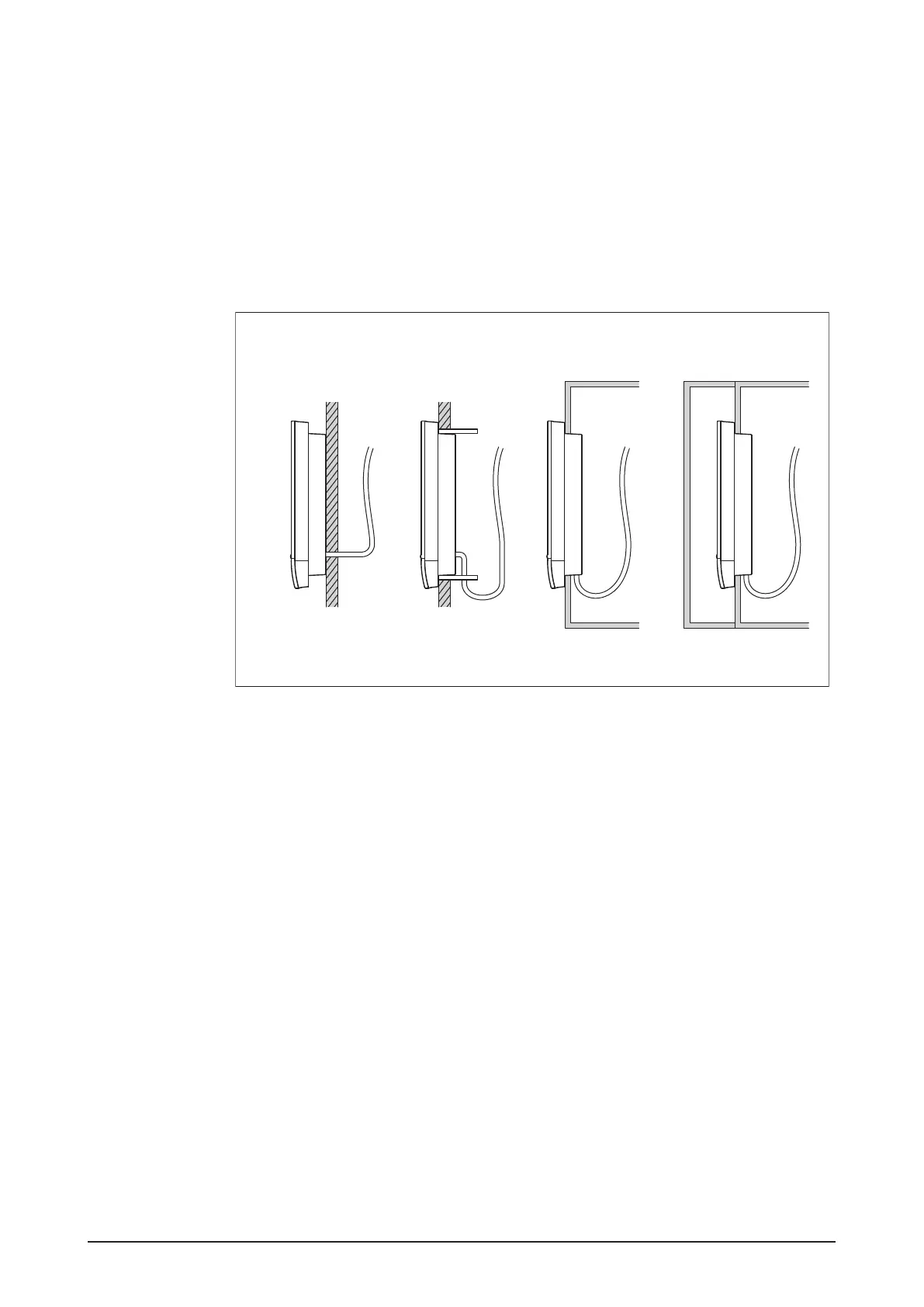

<Ways of installation>
Wall mounting Flush wall mounting Direct mounting to control enclosure
3.1 Wall mounting
3.1.1 Parts to be used
To wall-mount the intelligent Touch Manager, use the following accessory mounting parts:
• Wall mounting metal plate, 1 pc.
• Round-head wood screw (φ4.1×25), 4 pcs.
• P-tight screw (φ3×8), 1 pc.
(Check that there are all accessories listed in section 1.1: see the accessories included
with intelligent Touch Manager B.)
