Installation Manual 3P291714-2B
DCM601A71 intelligent Touch Manager
31English

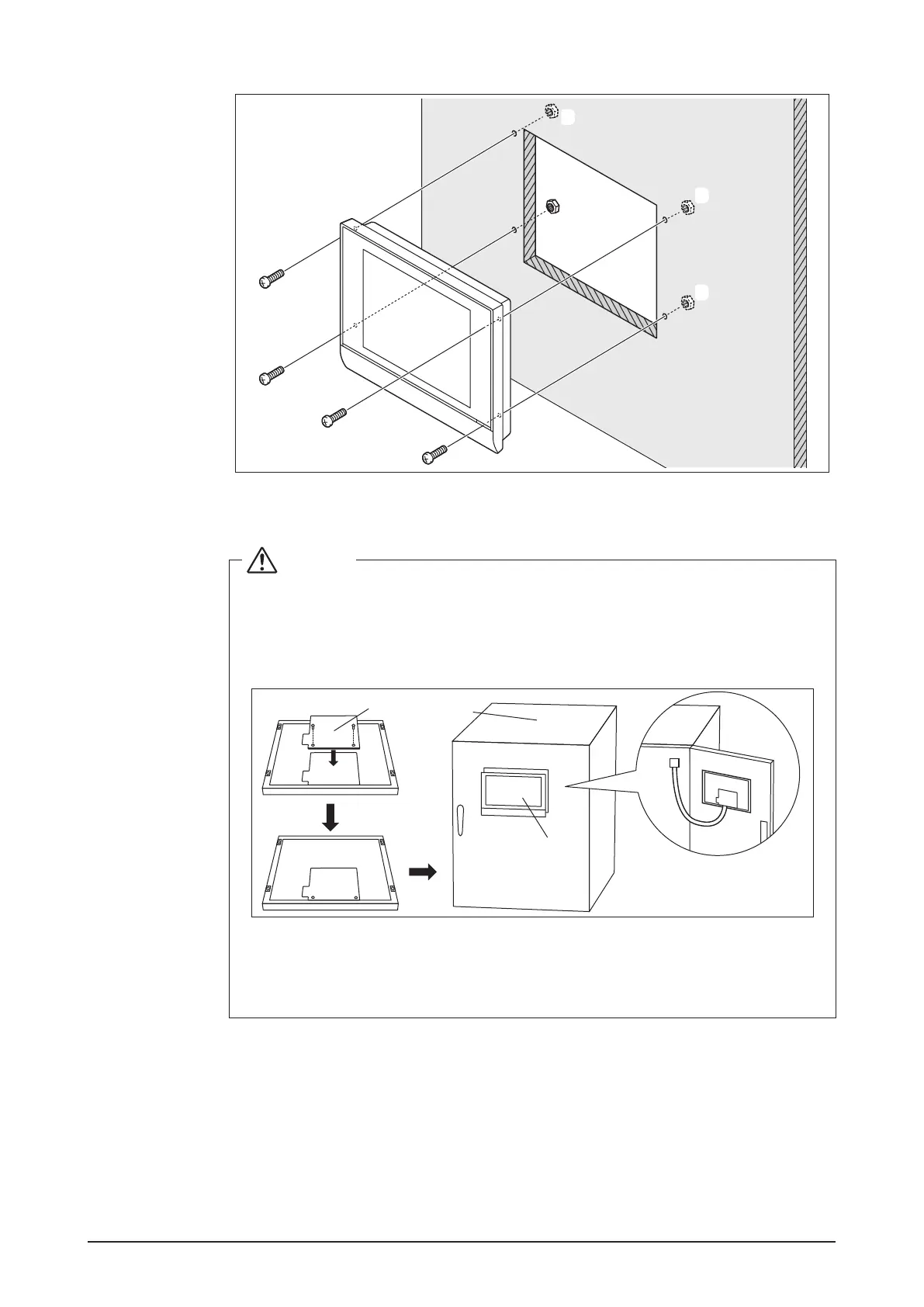

<Installing intelligent Touch Manager body to control enclosure>
MONITOR
A
A
A
A
BB
BB
BB
B
A Pan-head screw
B Nut
CAUTION
If the intelligent Touch Manager is directly mounted to the control enclosure, you
will be exposed to the power line connection terminals when opening the control
enclosure door.
Touching electrical junctions by hand may result in an electric shock. Attach the
terminal cover to the rear face for your safety.
A
B
C
A Terminal cover
B Control enclosure
C intelligent Touch Manager
To Next Page
